Enbrighten Z-Wave Plus v2 In-Wall Smart Switch, Paddle, 700 Series

Add Z-Wave Functionality To Wired Light Fixtures Or Appliances

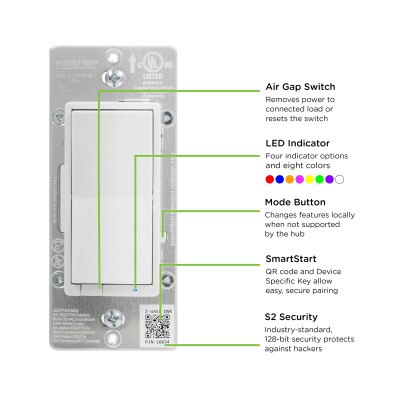

Enhance your home automation network by adding Z-Wave remote control or manual control to a light or an appliance with the Enbrighten Z-Wave Plus v2 In-Wall Smart Switch, Paddle, 700 Series. This Z-Wave compatible switch can be installed as a single-pole installation or be used in a 3-way wiring configuration with other switches to command a single light, fan, or appliance or group of devices wired to the connected switches. This switch features Z-Wave Plus 700 software, which allows it to utilize the latest Z-Wave features such as wireless range up to 2600 ft/800 m, three layers of encryption, and faster transmissions. This smart switch features color-changing LED indicator lights that can be customized with various color options to help lead you to the light in the dark and supports voice control through Amazon Alexa or Google Assistant via a connected smart hub.

• Z-Wave Plus 700 switch issues local and remote On/Off commands to connected lights and devices
• Works with LED, CFL, incandescent and halogen lighting
• Supports loads up to 960W, incandescent, 1/2 HP, or 1800W(15A) resistive
• Quick installation with auto-detecting line/load terminals
• Suitable for single-pole or multi-pole applications
• Can be included in multiple groups or scenes
• "Z-Wave Plus" certified for wide compatibility

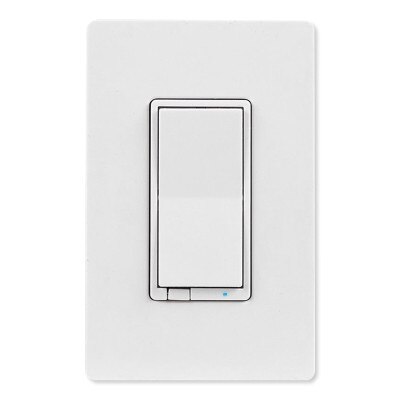

• Uses a standard decorative-size wallplate (sold separately)

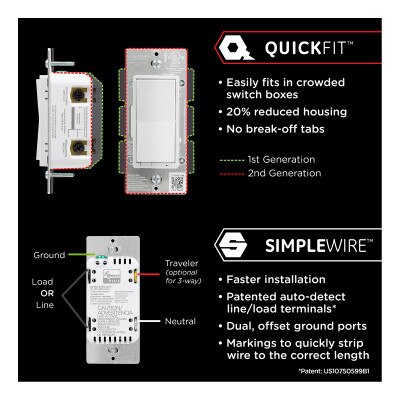

This Smart Switch is designed with QuickFit and SimpleWire features:

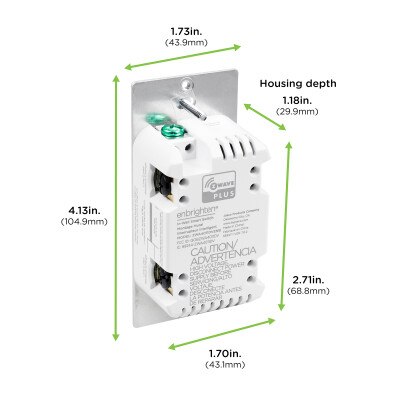

• QuickFit: Provides a housing that's smaller by 20% with no break-off tabs to remove, which is ideal for older-style switch boxes, multi-gang configurations, or any other application with limited space.
• SimpleWire: Auto-detects line/load terminals, making installation easier and quicker by detecting line and load wires and configuring the switch accordingly. It also features an offset dual ground terminal to avoid switch box mounting screws.

Installation Details

The Z-Wave Plus Commercial Grade In-Wall Smart Paddle Switch works with LED, CFL, incandescent and halogen lights, as well as any on/off resistive load up to 1800W and motor loads to 1/2 HP. The switch supports single-pole or multi-pole applications, and works in conjunction with up to four add-on switches when paired with Enbrighten, JascoPro Series, UltraPro add-on switches, or traditional switches (sold separately). Installation will be easier because it features SimpleWire technology, which means it auto-detects line/load terminals, identifies both line and load wires, and configures the switch accordingly. It also has connections for Neutral, Ground, and Traveler (multi-pole installation requires a traveler wire). Additionally, this model can be included in multiple zones or scenes for enhanced home automation.

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Available Colors: White or Light Almond

Contents

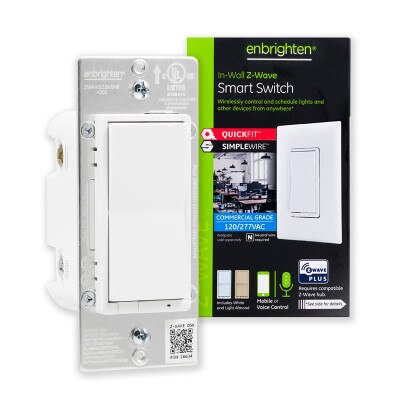

• Paddle Switch, White
• Light Almond Switch

Notes

• Requires a Z-Wave network controller.
• Wallplate not included. Uses standard single-gang wallplate. For indoor use only.
• The fixture controlled by the switch must not exceed 960 watts (Incandescent); 1800W (15A) Resistive or 1/2 HP Motor.
• The switch is designed only for use with permanently installed fixtures.

Enbrighten: Leader And Innovator In Electronics

Enbrighten products are a subsidiary of Jasco, a leader in the design and development of home automation products and wireless accessories. Established in 1975, Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

• Manufacturer Part #: 59337
• UPC: 030878593373
• Power: 120 VAC, 60 Hz
• Frequency: 908.4/916 MHz
• Load Ratings: 960W Incandescent; 1800W (15A) Resistive or 1/2 HP Motor
• Range: Up to 150 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
• Environmental Conditions: For indoor use only.
• Operating Temperature Range: 32 to 104°F (0 to 40°C)
• Approvals: FCC, IC
• Warranty: 2-Years Limited

»Enbrighten 59337 In-Wall Smart Switch Installation Manual (.pdf)
