Qolsys IQ Panel 4, PowerG + 319.5 MHz (Verizon)

Add One of the Most Versatile Smart Hubs to Your Home

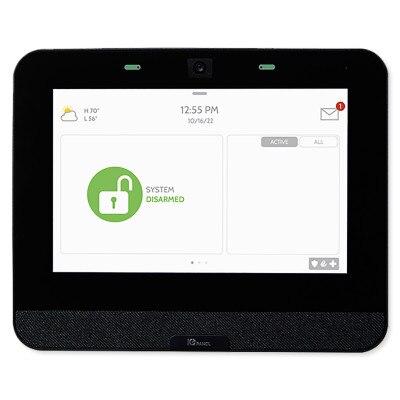

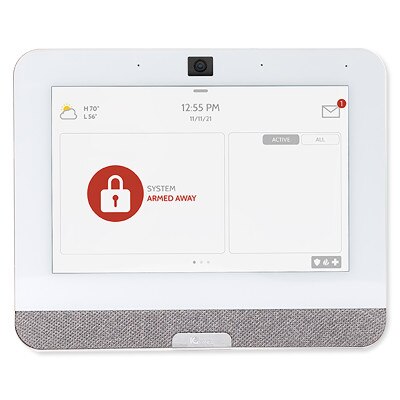

Start your smart home and smart security systems with the Qolsys IQ Panel 4, PowerG + 319.5 MHz (Verizon). This touchscreen automation and security hub is the newest and most versatile smart home controller from Qolsys, built with enough components to act as a smart home hub, security hub, video intercom, audio player, digital photo frame, and much more. The IQ Panel 4 utilizes an Android 9 operating system, 7-in HD color touchscreen, and easy-to-use interface to enable you to command hundreds of devices using Z-Wave 700 (U.S.), 319.5 MHz, and PowerG wireless protocols.

The IQ Panel 4 builds off of the best features of the IQ Panel 2 and 2+; including an improved 8MP wide-angle camera, upgraded QuadSound Speakers and 3 microphones for intercom communication and voice control, along with 16GB internal memory to control more devices simultaneously. The IQ Panel 4 provides you with nearly everything you need to make your home safer, smarter, and easier to stay connected to.

• Touchscreen controller manages hundreds of security and home automation devices
• Supports Z-Wave 700, PowerG, and 319.5 MHz wireless devices
• Command lights, security sensors, intercoms, video doorbells, smart locks, garage doors, and thermostats from one location
• Works on the Verizon LTE network (SIM Card built-in)
• 8MP 120° Field-of-View, Fixed-Focus Camera with Flex-Tilt Angle Adjustment

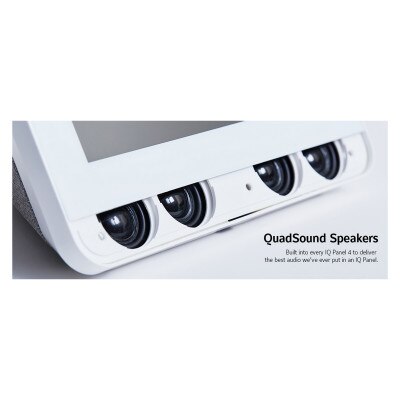

• QuadSound 4x front-facing 4W speakers and 85-decibel siren provides clear audio for intercom communication, music streaming, and alarms
• Triple Micro-Electro-Mechanical System (MEMS) Microphones capture crystal clear audio for intercom communication, voice control, and for detecting glass breaking sounds
• Remote management/monitoring services powered by Alarm.com (includes the Verizon LTE cellular connection)

IQ Panel 4 versus IQ Panel 2 or 2+

The IQ Panel 4 is upgraded over the original IQ Panel 2 to bring the most cutting-edge wireless communication into your home. The IQ Panel 4 includes everything you loved in the original IQ Panel 2, plus the following additions:

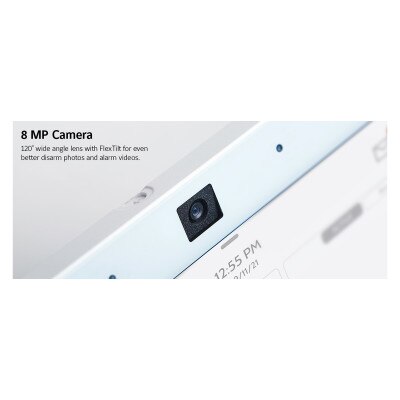

• 8MP Panel Camera: A built-in wide-angle, fixed-focus 8MP camera works for indoor surveillance, video doorbell, and video intercom applications. The camera's 120° Field-of-View can be easily adjusted thanks to its Flex-Tilt design. The camera also captures "disarm photos", which saves the time, date, and image of whoever disarmed the IQ Panel 4 after an alarm is triggered. The photos are then sent directly to your smartphone so you can see who entered your home.
• Built-In Glass Break Detector: Triple Micro-Electro-Mechanical System (MEMS) Microphones work with the Qualcomm Snapdragon eight-core processor and software to detect the sound of breaking glass, providing a built-in glass break detector.
• Live View and Live Answer: Stream live feeds from connected video doorbells or security cameras, speak with guests using your video doorbell, and lock/unlock your connected smart lock from the IQ Panel 4 or your smart device via the Alarm.com ecosystem.
• Versatile Mounting Options: The Qolsys IQ 4 Panel comes with one SmartMount backplate for easy wall mounting. Other mounting options include the IQ Panel 4 Stand for desktop and the IQ Panel 4 Base with built-in Subwoofer. When paired with the IQ Panel 4 Base, the Base's built-in subwoofer transforms the IQ Panel 4 into an excellent music speaker.

Additional Features

• Dual Path Connectivity: Built-in Wi-Fi and LTE radios work together to create dual-path connectivity to the cloud to ensure that you're always connected. This improves latency, reliability, speed, and provides software updates.
• Bluetooth Disarming: Bluetooth Touchless Disarming allows you to pair up to five smartphones or tablets for secure, authenticated disarming. No more accidentally setting off your alarm. Just leave your smartphone in your pocket or purse to automatically set or disarm your security as you leave or arrive home.
• Android 9: Unlike old systems that do not provide software updates, the IQ Panel 4 uses the Android 9 operating system that's intuitive, upgradeable, and future proof. It offers language support, a video player, custom text to speech, and an appified experience.
• Digital Thermostat: Fast access to your 4-day forecast. Just look at the top left corner of the header of IQ Panel 4. You'll be able to toggle between Fahrenheit and Celsius, and if enabled, you can even receive a severe weather siren warning.
• Dual SRF with PowerG: The IQ Panel 4 supports PowerG and legacy security devices along with more common wireless security devices. This model is specifically compatible with 319.5 MHz devices, including backwards compatibility with nearly all existing devices.
• Photo Frame: Built-in Micro SD card slot will allow you to load your own photos as a screensaver. Not only will you have a top notch security and home automation system, but also a digital photo frame so you can show off your recent family photos.

Built-In Verizon LTE Wireless Internet

The Qolsys IQ Panel 4 works on the Verizon LTE network (SIM card included) to transmit and receive security information wirelessly. This allows the system to be controlled remotely with your smartphone or tablet using the Alarm.com mobile app (Android, iOS, Windows, and Blackberry).

Alarm.Com App

The IQ Panel 4 is monitored by Alarm.com and can be controlled remotely with your smartphone or tablet using the Alarm.com mobile app (Android, iOS, Windows, and Blackberry). You'll be able to monitor and control your smart home in real-time and from anywhere to arm or disarm your security system, lock or unlock your smart doors, watch live video from your cameras, turn off lights, and much more!

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Installation Details

The Panel comes with a SmartMount backplate for easy wall installation. The SmartMount also serves as the base for compatible desktop mounts such as the IQ Panel 4 Stand and the IQ Panel 4 Base. or the Panel can optionally be mounted to a wall using the integrated mounting holes.

The Panel plugs into a standard power outlet using the included power supply. The required Internet connection is provided by the pre-installed Verizon LTE SIM Card. An Alarm.com account is also required, but not included.

Contents

• IQ Panel 4
• Verizon LTE SIM Card (pre-installed)
• Power Supply
• SmartMount backplate
• Quick Install Guide

Notes

• Requires an Internet connection and an active remote monitoring account with Alarm.com.
• Requires the Alarm.com mobile app to monitor and control the IQ Panel 4 remotely using a smartphone or tablet (Android, iOS, Windows, and Blackberry).
• IQ Panel 4 Stand for desktop and the IQ Panel 4 Base with Built-In Subwoofer are both sold separately.
• Cameras, doorbells, and other optional accessories are sold separately.

Qolsys: All In One. Always Connected

Founded in 2010 with the mission to improve lives through technology, Qolsys develops innovative life safety, security, and home control devices built to set a higher standard for the industry. Qolsys products are flexible, intuitive, and reliable. As Qolsys says, "There's never been a better time to get connected."

• Manufacturer Part #:
• IQP4001BLK: Black
• IQP4001: White
• UPC:
• IQP4001BLK (Black): 857497008695
• IQP4001 (White): 857497008688
• Platform: Android 9
• Operating System: Security & Home Automation Touch and Swipe Interface
• Processor: Qualcomm Snapdragon 8 core SOM (System on a Module)
• LCD Display:
• Size: 7" LCD
• Resolution: 1280 X 800
• Brightness: 300 cd/m2
• RGB: 24bit, 16.9 million colors
• Touchscreen: Capacitive glass multi-touch
• User Codes: Up to 242: Role based (Dealer, Installer, Master, User, Guest, Duress)
• Wireless:
• WiFi: Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5GHz – including built-in router capability
• Cellular: LTE (Bands 2,4,5,12,13,17)
• Z-Wave 700: Supports up to 137 devices (80 lights, 20 Locks, 10 Thermostats, 6 Garage Doors, 21 Misc
• PowerG: Up to 128 Devices 915 MHz Long Range Encrypted 2-Way Wireless
• Security R/F: Up to 128 RF Zones.
• IQ Panel 4 uses PowerG plus ONE of the following depending on SKU: 319.5MHz, 345MHz or 433MHz.
• Bluetooth: Qualcomm Bluetooth Low Energy (BLE) 4.2
• Flash Memory: Internal Storage, 16GB NAND Flash
• LED Indicator: Green (Disarmed), Red (Armed)
• Camera: Front camera, 8MP Wide-Angle, 120° Field-of-View, Fixed-Focus Camera, with Flex-Tilt Adjustment
• Microphone: 3 MEMS (Micro-Electro-Mechanical System) Microphones with Echo Cancellation
• Speaker/Siren: 4W x 4 QuadSound 4x front-facing 4W speakers and 85-decibel siren
• Tamper: Dual panel and wall tamper with spring release and Smash and Grab reporting
• Battery: Rechargeable Lithium Ion 3000mAh Rated for over 24 hours
• Buttons: Single wake/sleep button, all user controls through touch interface
• Dimensions: 6.1" H x 7.5" W x 1" D (155mm x 191mm x 26mm)
• Temperature:
• Operational: 32°F to 120.2°F (0°C to 49°C)
• Storage: -4°F to 122°F (-20°C to 50°C)
• Humidity: up to 93% relative humidity indoors
• Power Supply: 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adapter evaluated at 120vAC for UL/cUL
• Mount: SmartMount for wall mounting included. SmartMount table stand or SmartMount IQ Base Table Stand with built-in Subwoofer sold separately
• Certifications:
• UL/cUL: UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
• FCC: 2AAJXQS-IQPANEL4 (may contain additional modules with separate FCC IDs)
• IC: 11205A-QSIQPANEL4
