Yale nexTouch Mortise Lock Z-Wave Plus v2 Pushbutton Cylinder Override with Thumbturn, Augusta Lever

SKU: YANTM617ZW3x

Please Select Option To View Availability

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$658.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Lock/Unlock Your Home With Z-Wave Technology

Add better security and Z-Wave wireless control to your front door with the Yale nexTouch Mortise Lock Z-Wave Plus v2, Pushbutton Cylinder Override with Thumbturn and Augusta Lever. This sectional lock consists of a pushbutton keypad, deadlocking latch bolt with turnkey cylinder, an additional thumbturn deadbolt, and a reversible leverset. You'll be able to access your home or office in three different ways: input a 4-8 digit code into the keypad, use a traditional key, or by remotely unlocking the lock via a Z-Wave controller or smartphone app. Additionally, you can use a master code for programming and creating up to 500 unique PIN codes to share with a variety of visitors such as family members, visiting guests, or hired contractors.

  • Wireless latch bolt and keypad secure your home and connect to Z-Wave networks
  • Lock/unlock via numbered access code, turnkey, or Z-Wave remote control
  • Create and share up to 100 unique PIN codes for your family, friends, and delivery services
  • Additional deadbolt operated by key from outside and indoor thumbturn
  • Easy to install, battery-powered with optional backup
  • Voice assistance guides you through programming
  • Weather resistant seal protects the keypad from the elements
  • Keypad lockout – Disable the keypad after five (5) successive failed attempts

As a part of the nexTouch series, this Yale lock comes with several advanced features including ANSI/BHMA Grade 1 certification for long-lasting use, a Door Position Switch to disable the exterior keypad for privacy, free passage modes, lockout keypad functionality, voice-guided programming in 3 languages, and much more! And because it comes with Z-Wave Plus capabilities, it can easily be integrated into your Z-Wave network for home automation scenes. You'll also be able to control it remotely with a smartphone or tablet and receive notifications of when the lock was accessed and by whom.

Installation Details

The lock installs on standard interior or exterior doors measuring 1-3/4" thick. All the necessary hardware (latch, strike, screws, etc.) are included, along with a template for door preparation and detailed instructions. The latch bolt and leverset handle are reversible, making them suitable for left or right-handed operation.

The sectional lock is powered by four (4) included AA batteries that should last for approximately one year. The lock also supports an optional 9VDC backup power supply with a plug-in wall transformer (sold separately). The Z-Wave Network Module easily snaps in above the batteries. An alert is triggered when the battery is low, wrong codes are entered, or the lock is tampered with.

Programming is accomplished either at the lock with the keypad or through your Z-Wave system controller. The lock provides voice-assisted programming with adjustable volume to guide you through the setup process. Voice assistance is available in English, Spanish, and French.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

  • Mortise Pushbutton Keypad
  • Deadlocking Latch Bolt
  • Deadbolt
  • Reversible Leverset
  • Z-Wave Module, Plug-In
  • (4) AA Batteries
  • Mounting Hardware
  • Instruction Manual

NOTE: Smartphone required for remote Z-Wave integration via the Yale Secure App or Z-Wave compatible controller app. Z-Wave automation or security controller sold separately.

Yale Real Living – Solutions For The Digital Home

As a residential product line under the Yale Security brand, the Yale Real Living series brings over a century of innovation to the digital home. Known for manufacturing top-quality deadbolts and leversets, Yale now offers lock hardware and other home security solutions fit for the modern, connected age.

Specifications

  • Manufacturer Part #:

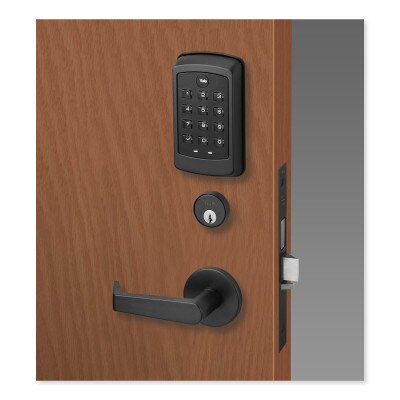

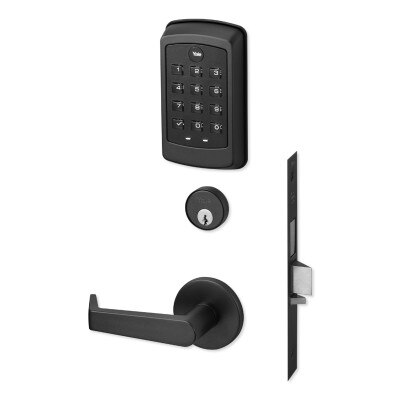

    • NTM617-ZW3-BSP: Black Suede
    • NTM617-ZW3-613E: Dark Oxidized Satin Bronze

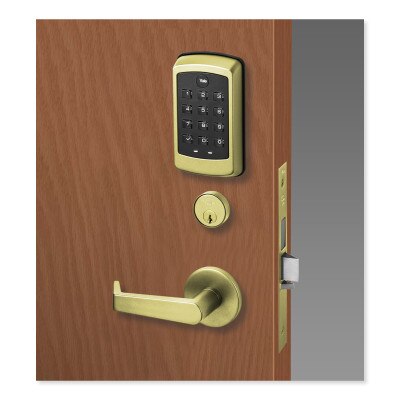

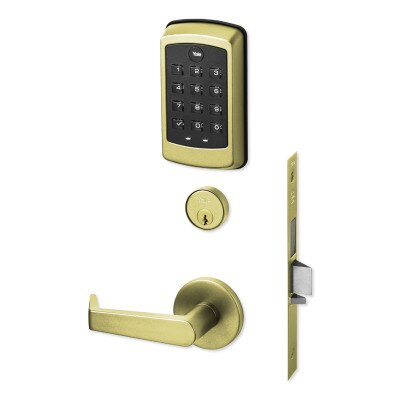

    • NTM617-ZW3-605: Polished Brass

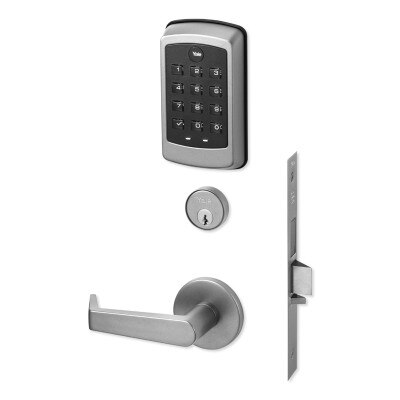

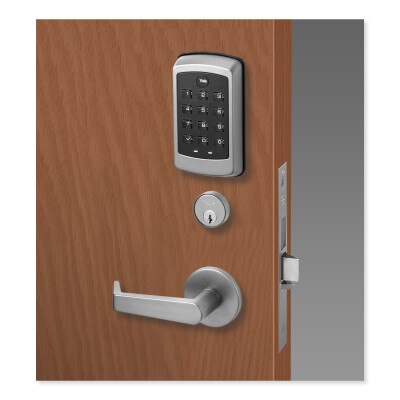

    • NTM617-ZW3-626: Satin Chrome
  • UPC: N/A
  • Wireless Technology: Z-Wave Plus (908.42 MHz)
  • Keypad: Pushbutton
  • Door Specifications: Fits into the standard mortise door prep
  • User Codes: Up to 500 unique user codes
  • Backset: 2-3/4 inches (70mm) standard backset
  • Door Thickness: 1-3/4 inches (44mm) door thickness standard; please specify for other door thicknesses
  • Handing: Field reversible
  • Latch Bolt: 3/4 inch spring latch bolt standard, 1 inch throw deadlocking latch bolt optional
  • Strike: Curved lip strike with 1-1/4 inch (32 mm) lip length standard
  • Cylinder: Accepts conventional, interchangeable core, security and high security cylinders, and other manufacturers' keyway cylinders

Environmental Specifications

  • Operating Temperature: -40°F to 140°F (-40°C to 60°C ) at 95 percent relative humidity when used with an external power supply
  • Power Source: 4 AA alkaline batteries (included) with optional hardwire input for 9VDC external power; 9V battery power backup on keypad
  • Approvals and Certifications: ADA, ANSI/BHMA Grade 1, EPD, FCC, GreenCircle, ISO 14001, Windstorm, UL/cUL rating up to and including 3 hours
  • Warranty: 1 year electrical, 3 year mechanical and finish
