Kwikset 914 Series SmartCode Zigbee Contemporary Deadbolt with Cox

SKU: CXKW991401x

Please Select Option To View Availability


WARNING: Cancer and Reproductive Harm –


Add Your Door Lock To Your Zigbee Network

Integrate your door lock into your Zigbee network with the Kwikset 914 Series SmartCode Zigbee Contemporary Deadbolt with Cox. This smart deadbolt can be installed quickly and easily and provides three methods to access the lock: a pushbutton keypad, a standard turnkey, and remote operation via a Zigbee smart hub. SmartKey Security Re-key Technology will allow you to easily reset your lock's cylinder to work with any KW1 Keyway as well as protect against advanced break-in techniques such as lock picking or bumping. The lock's 11-button keypad enables coded entry and communication with other Zigbee security and automation devices in your smart home. This smart lock is compatible with Cox Homelife service and powered by Cox Panoramic Wi-Fi, allowing you to control it remotely from anywhere using the Cox Panoramic Wi-Fi app.

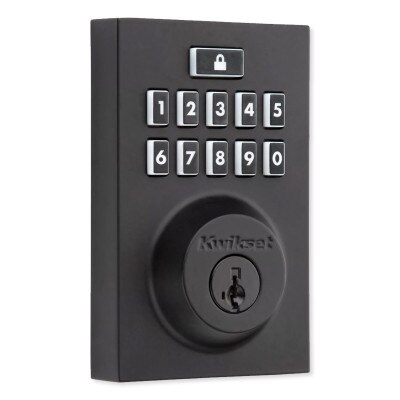

  • Lock/unlock door via pushbutton keypad, remote, or turnkey
  • "Random digit generator" ensures codes are not identifiable by fingerprints
  • Dedicated lock button provides fast, one-touch locking
  • SmartKey Security Re-Key Technology prevents lock bumping (picking)
  • Small size and sleek metal construction ensures universal installation
  • Supports Zigbee devices via Home Connect
  • Works with Amazon Alexa via Samsung SmartThings

914 Series Features

This 914 Series deadbolt saves up to 30 different user access codes at a time, allowing you to create and share access to your home with family, friends, and temporary guests. Codes are easily created and deleted, so you can give temporary access to housesitters, maintenance workers, etc. The MasterCode feature gives one user complete control over the system and prevents other users from adding or deleting codes.

The deadbolt operates on a one-touch motorized locking mechanism to enable remote locking and unlocking. Use a Zigbee controller or a smartphone app to lock/unlock your door from anywhere. An included backup keyway allows you to lock/unlock the door manually with a turnkey. 914 Series deadbolts utilize BumpGuard, a patented side locking bar that replaces the traditional pin and tumbler locking mechanism to protect against lock bumping or lock picking.

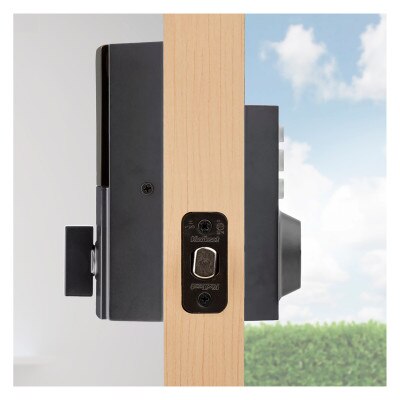

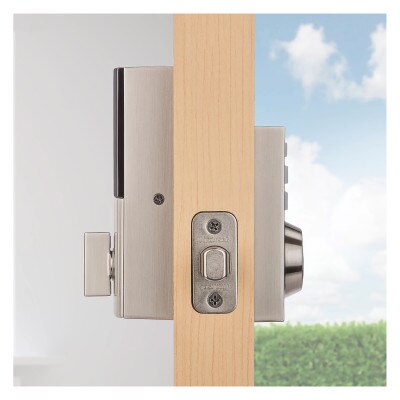

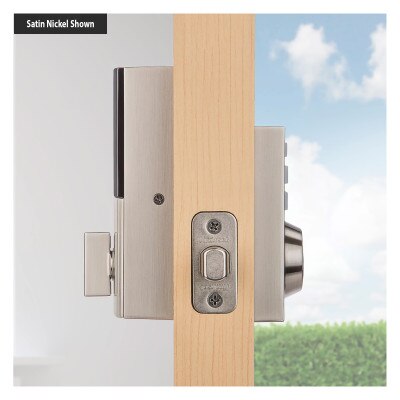

Additionally, the 914 deadbolt's tapered design offers enhanced compatibility with misaligned doors. Even if your door is a little unleveled, you will be able to lock the deadbolt without having to pull and push the door repeatedly to shut it.

SmartCode Electronic Locks

With your own personal code, you can enter your home with just a few simple pushes of a button and lock it with just one. You also get more control over who has access to your home. Just assign a temporary code and delete it when you see fit. Now you can totally eliminate the need for keys. SmartCode is easy to install, program and use and operates on 4 AA batteries.

Home Connect Technology

Kwikset's Home Connect Technology allows your front door lock to talk to other things in your house, such as the security system, lighting, thermostat and entertainment system – all through wireless Zigbee.

  • Lock or unlock doors with a mobile device or secure Internet connection
  • Check lock status remotely
  • Receive notification and/or video of who enters your home
  • Remotely add or delete access codes

Integrate with security systems:

  • Lock doors when system is armed
  • Disarm Security System when door is unlocked
  • Communicate door lock status

Integrate with home control systems:

  • Lock doors with handheld remote, touch screen or smartphone
  • Customize lighting scenes upon unlocking the main entry door or garage entry door
  • Ability to limit access for users to specific times and/or days of the week
  • Ability to provide temporary access to friends and house sitters


  • Zigbee Deadbolt Lock
  • Latch and Strike
  • (2) Standard Cut Keys
  • Installation Hardware


  • Cox Homelife and Panoramic Wi-Fi are federally registered marks of Cox Communications, Inc.
  • Requires a Zigbee network controller, sold separately.

The Best Security Is Smart Security

An established leader in lock technology, Kwikset is widely recognized for providing families security and peace of mind with high quality door locks and door hardware. No more worrying about keys! The convenience of keyless technology is now available at your fingertips.


  • Manufacturer Part #:

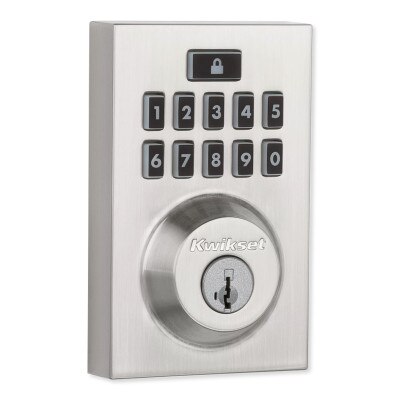

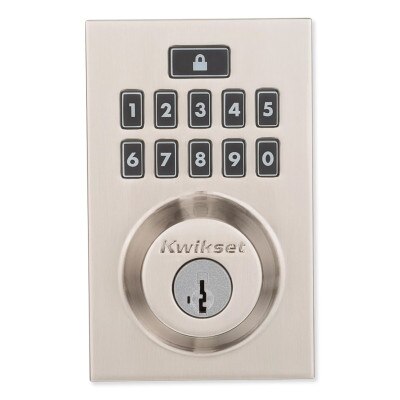

    • 99140-134: Satin Nickel

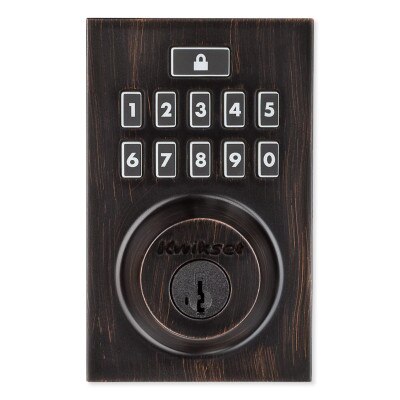

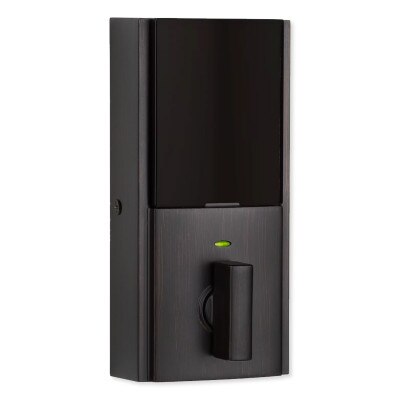

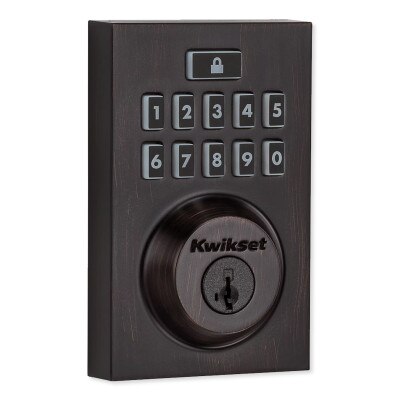

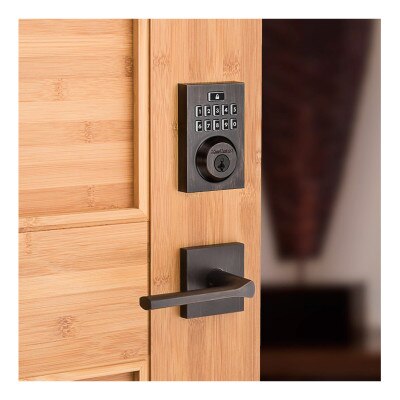

    • 99140-135: Venetian Bronze

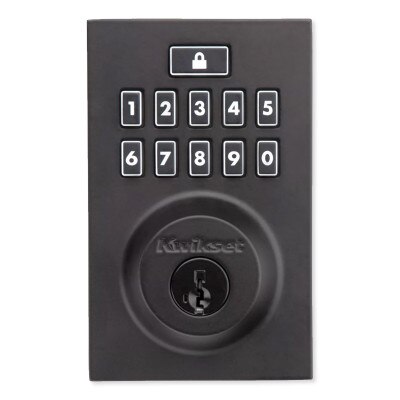

    • 99140-136: Matte Black

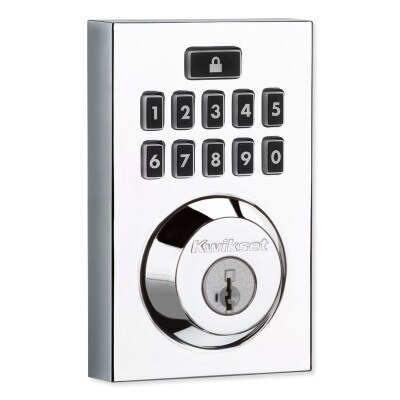

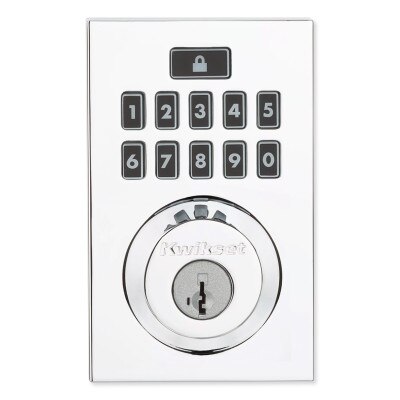

    • 99140-137: Polished Chrome
  • Function: Single cylinder deadbolt
  • Door Prep: 2-1/8 inches diameter face hole and 1-inch diameter latch hole
  • Backset: Adjustable 2-3/8 inches or 2-3/4 inches
  • Door Thickness: 1-3/8 to 1-3/4" inches automatic adjustment
  • Cylinder: SmartKey Re-Key Technology
  • Faceplates: 1 x 2-1/4 inches round corner standard
  • Strikes: Round corner strike 2-3/4 x 2-1/8 inches
  • Bolt: 1" throw, steel deadbolt
  • Door Handing: Reversible
  • Power Supply: Requires 4 AA alkaline batteries (not included)
  • Battery Life: Approx. 1 year
  • Wireless Protocol: Zigbee HA Version 1.2 (backwards compatible with V1.0 devices)
  • Frequency: 2.4 GHz
  • Range: Up to 35 feet (10m) indoors and 250 feet (76m) outdoors*
  • Approvals: FCC
  • Warranty: Lifetime mechanical and finish warranty; 1 year electronics warranty
