Yale Assure Lock Zigbee Push Button Deadbolt with COX HOMELIFE®

Zigbee Deadbolt with Pushbutton Keypad Turnkeys

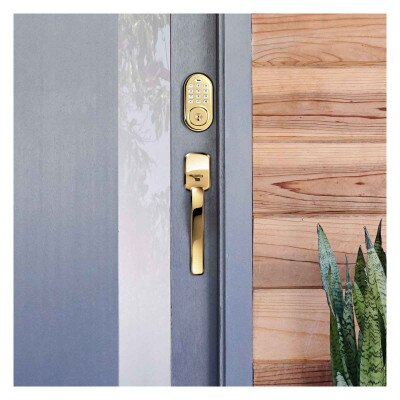

Conveniently secure your front door with or without a key by replacing your old standard deadbolt with the Yale Assure Lock Zigbee Push Button Deadbolt with COX HOMELIFE®. This electronic, motorized deadbolt uses its exterior pushbutton keypad, interior thumbturn, and traditional turnkeys to physically lock and unlock your door. This smart deadbolt can be integrated into your Zigbee network with the included Zigbee Network Module for remote operation from anywhere through your smartphone. This smart lock is compatible with the COX HOMELIFE® service and powered by COX PANORAMIC WIFI®, allowing you to control it remotely from anywhere using the COX PANORAMIC WIFI® app.

• Keyed pushbutton deadbolt with backlit acrylic keypad
• Lock/unlock via Zigbee, numbered access code, or turnkey
• Share up to 25 unique codes to friends and family
• Remove individual codes whenever you need to
• Zigbee certified for wide compatibility
• Easy to install, battery-powered, no wiring required
• Weather-resistant keypad numbers won't wear off
• ANSI/BHMA Grade 2 for strong, reliable security

The Yale Zigbee Push Button Deadbolt Assure Lock comes with an optional Zigbee Network Module, allowing integration into your Zigbee network. The lock can seamlessly integrate into more than 50 home automation and security systems including SmartThings, Alarm.com, Vivent, and more. Once integrated, the Zigbee deadbolt gains additional features*:

• Lock/unlock deadbolt remotely via Zigbee*
• Max. number of user codes increases from 25 to 250
• Create codes, view access history, and adjust settings via Zigbee
• History log shows when family/friends come and go in real time
• Trigger other Zigbee devices upon valid/invalid code entries
• Privacy mode locks out all users for enhanced security

*Features may vary based on Zigbee controller.

Installation Details

Designed for use with most standard interior or exterior doors, the deadbolt installs on doors measuring 1-3/4 to 2-1/4 inches thick (1-3/8" requires special thin door gasket). All the necessary hardware (latch, strike, screws, etc.) is included, along with a template for door preparation and detailed instructions.

• Installs on a standard door 1-3/4 to 2-1/4 inches thick

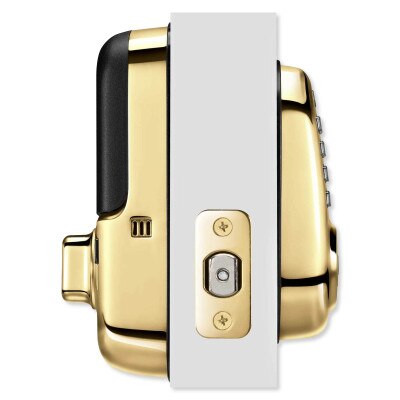

• Adjustable latch fits existing backset of either 2-3/8" or 2-3/4"
• Suitable for right-handed or left-handed operation

The deadbolt is powered by four (4) AA batteries, which are included and should last for about one year. The Zigbee Network Module easily snaps in above the batteries. When the battery is low, or wrong codes are entered, or the lock is tampered with, an alert is triggered. Programming is accomplished either at the lock via the pushbutton keypad, or through your Zigbee system controller.

Contents

• Zigbee Push Button Deadbolt Assure Lock
• Zigbee Network Module, Plug-In
• (4) AA Batteries
• (2) Turnkeys
• Mounting Hardware
• Instruction Manual

Notes

• COX HOMELIFE® and PANORAMIC WIFI® are federally registered marks of Cox Communications, Inc.
• Requires a Zigbee network controller, sold separately.

Yale: Simpler & More Secure

Yale focuses on making home security simple, secure, and easily accessible for any consumer. They are committed to designing products and services that allow anyone to monitor and manage entry into the home from wherever they are, while keeping intruders out. They've created a thoughtful system of products and services that are easy to use, aesthetically stylish, and completely reliable. Yale products make life simpler and more secure.

• Manufacturer Part #:

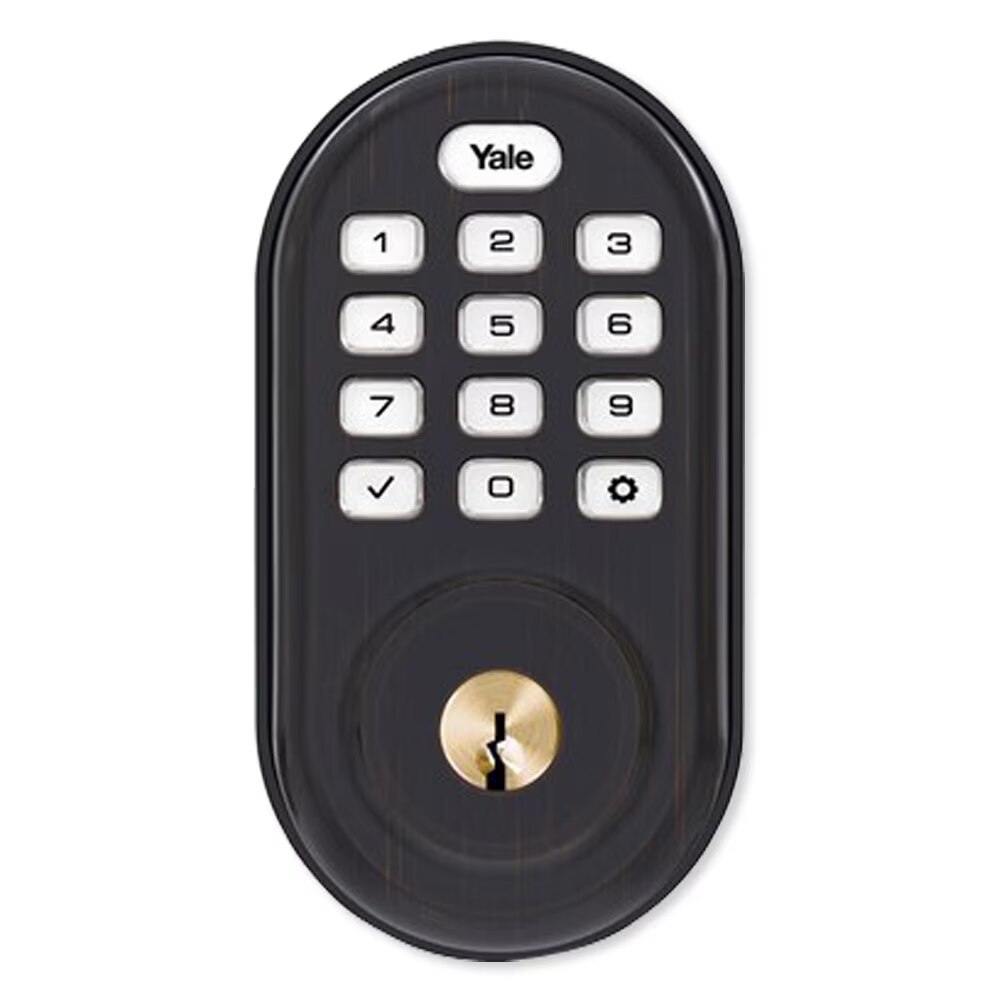

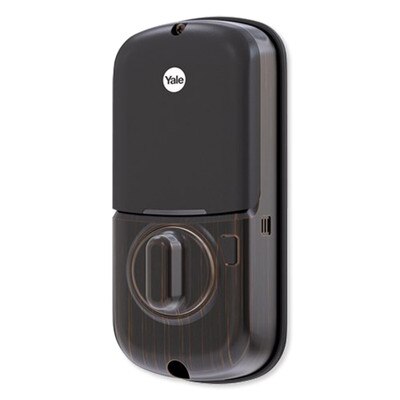

• YRD216-HA2-0BP: Oil-Rubbed Bronze

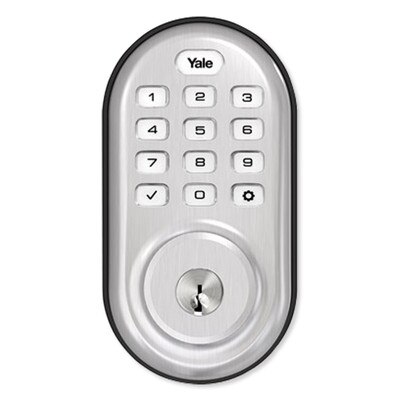

• YRD216-HA2-619: Satin Nickel

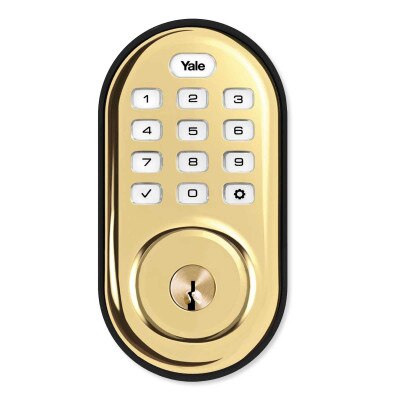

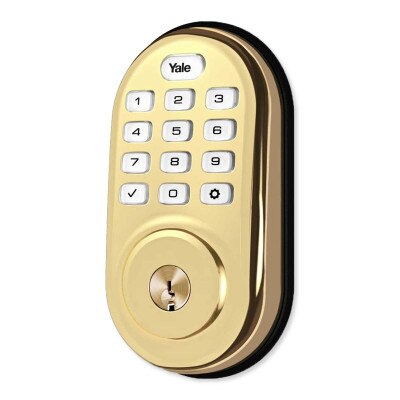

• YRD216-HA2-P05: Lifetime Brass
• Wireless Protocol: Zigbee – includes plug-in Network Module
• Max. User Codes:
• Standalone: 25 user codes
• With Network Module: 250 user codes; 4-8 digits each
• Keypad Type: Push button
• Grade: Grade 2: A156.36 ANSI/BHMA
• Handing: Self handing (Please hand while in unlocked position)
• Batteries: 4 AA Alkaline Batteries (Included)
• Face Bore: 2-1/8"
• Edge Bore: 1"
• Backset: 2-3/8" or 2-3/4"
• Latch: Adjustable
• Latch Front: RC (Round Corner)
• Door Thickness: 1-3/4" to 2-1/4", 1-3/8" requires special thin door gasket
• Strike: 1-1/8" x 2-3/4"
• Strike Front: RC (Round Corner)

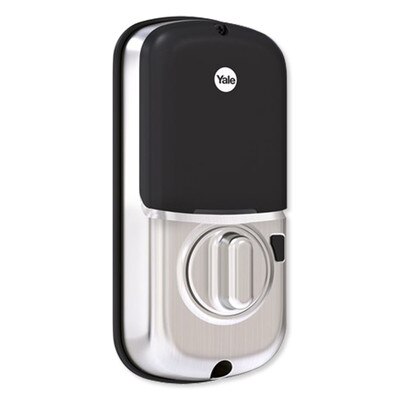

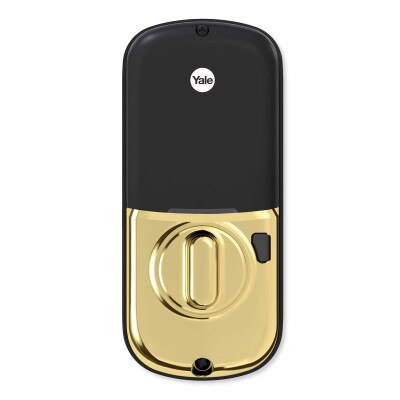

• Thumbturn: Yes
• Cylinder: 5-Pin Cylinder
• Keyway 1: KW-1, 5-Pin
• Number of Keys: 2
• Weight: 5 pounds
• Lock Dimensions:
• Exterior: 1-3/16 x 2-3/4 x 5-3/16 inches
• Interior: 2-1/8 x 3 x 6-7/8 inches
• Approvals: ANSI/BHMA Grade 2 – BHMA Certified
• Warranty: 1 Year for Electronics, Lifetime Limited for Finish/Mechanical

»Yale YRD216-HA2 Assure Lock Zigbee Push Button Deadbolt User Manual (.pdf)
»Yale Assure App Quick Start Guide (.pdf)
»Yale Door Compatibility (.pdf)
