Home Controls Z-Wave Smart Home Kit with SmartThings Hub

Start Your Smart Home Network with Aeotec

Build out your smart home system with the Home Controls Z-Wave Smart Home Kit with SmartThings Hub! This smart home Z-Wave kit consists exclusively of Aeotec devices that will provide you the essentials for building a new Z-Wave network for your home or office, or provide useful options for upgrading or expanding an existing network. Included in this kit are the Aeotec Smart Home Hub, two Aeotec illumino WallMote 7, a Aeotec Z-Wave Plus v2 MultiSensor 7, a Aeotec Z-Wave Plus v2 Smart Switch 7, and Aeotec aërQ Z-Wave Plus v2 Temperature & Humidity Sensor. With these devices, you will be able to control at least 3 separate lighting or electrical loads, and monitor environmental settings within multiple rooms from your mobile device or computer through the SmartThings app or web interface.

• Z-Wave automation kit includes 2 Z-Wave switches, 1 plug-in outlet, 2 sensors, and 1 SmartThings hub
• Aeotec Smart Home Hub wirelessly controls a huge range of smart devices across dozens of brands via Wi-Fi, Matter, Zigbee 3.0, and Z-Wave Plus
• illumino WallMote 7 commands Z-Wave devices and scenes through 6 programmable multi-tap button presses as a wall mounted or remote switch
• Z-Wave Plus MultiSensor 7 detects motion, vibration, temperature, humidity, ambient light levels, and UV light levels within a 33ft zone
• aërQ Z-Wave Plus v2 Temperature & Humidity Sensor detects temperature, humidity, potential for dew formation and potential for mold growth
• Z-Wave Plus v2 Smart Switch 7 adds remote Z-Wave control and energy monitoring to a plugged-in device

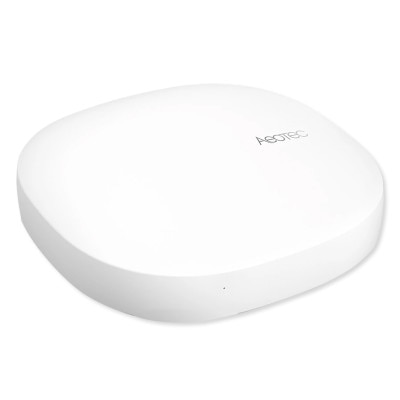

The Aeotec Smart Home Hub is the current generation of SmartThings system hubs and acts as the brains of your smart home system, wirelessly connecting and coordinating hundreds of devices within your smart home network. Thanks to its ability to communicate using Z-Wave Plus, Zigbee 3.0, Matter, and Wi-Fi networks, the Smart Home Hub is compatible with thousands of smart devices from hundreds of brands, all of which are controlled via the SmartThings app for iOS and Android smart devices. From the app, you can adjust parameters for individual devices or set up scenes and scheduled events for entire rooms or your whole home. Receive notifications from your sensors, remotely control smart lights and appliances, and monitor energy usage all from your smartphone.

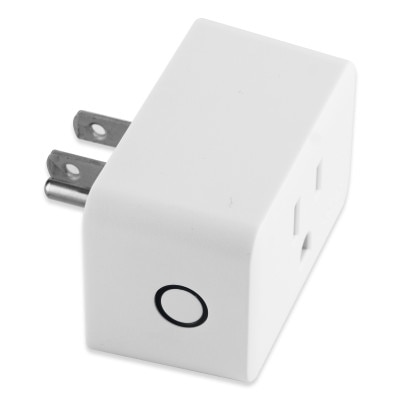

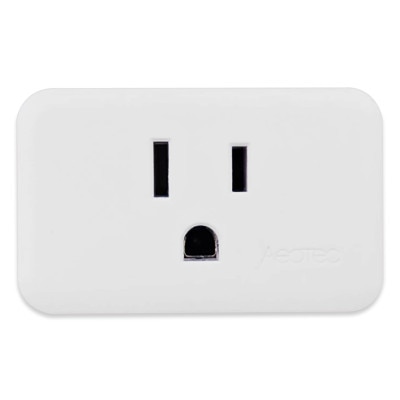

The Aeotec Smart Switch 7 plugs into a standard outlet and provides remote Z-Wave control, inclusion into automation scenes, surge protection, and energy monitoring features to devices plugged into the Smart Switch. Energy consumption will be displayed in the user interface of your Z-Wave gateway/controller (if supported).

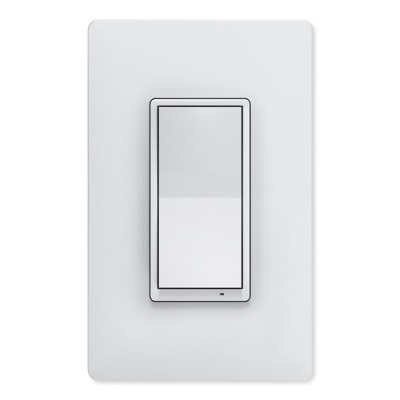

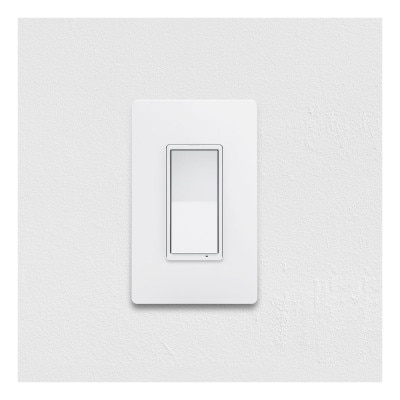

The Aeotec illumino WallMote 7 is a battery powered remote control Z-Wave 700 switch designed to look and behave as a standard wall switch but with the benefits of a wireless remote controller. The WallMote 7 is capable of controlling virtually any Z-Wave device in your network via its Multi-tap functionality, issuing On/Off controls to lights and appliances, Dim/Brighten commands to dimmable lights, and activating/deactivating pre-programmed scenes.

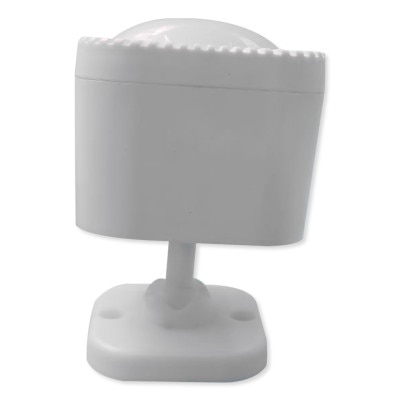

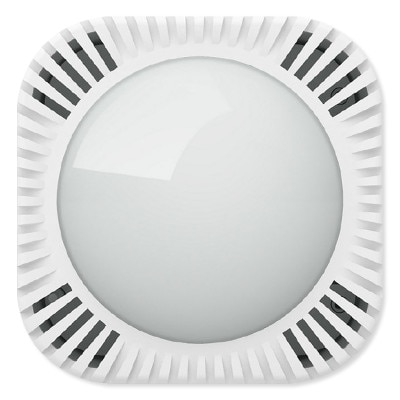

The Aeotec Z-Wave Plus MultiSensor 7 is a six-in-one sensor that detects motion, vibration, temperature, humidity, ambient light levels, and UV light levels within a 33ft zone and reports data to your connected Z-Wave controller. The sensor can be programmed to alert you when certain thresholds are reached, or give your real-time information when you check in on your mobile device or web portal. The Multi-Sensor 7 is compatible with all major Z-Wave hubs and controllers.

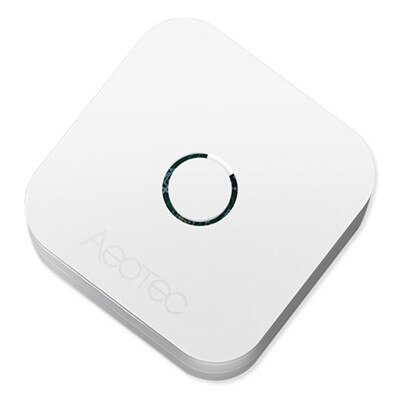

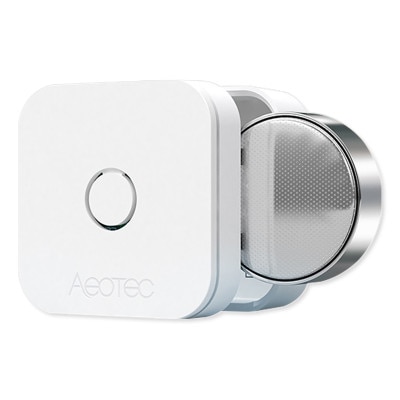

The Aeotec aërQ Temperature & Humidity Sensor is a 4-in-1 environmental sensor featuring proprietary aërQ technology used to monitor indoor temperature, humidity, dew formation point, and air quality within a single room and sends data to your Z-Wave hub. The sensor monitors and reports temperatures between -10°C and 65°C (14°F and 149°F) and with an accuracy of ±3.3°F/±1°C; monitors and reports humidity at ranges between 0% and 80% ; measures the relative dew point of its installed location separate from measured relative humidity; and calculates the potential for mold spores forming based on measured poor quality air.

For a more in-depth view of the included Z-Wave devices please visit:

• Aeotec Z-Wave Plus illumino WallMote 7
• Aeotec Z-Wave Plus v2 MultiSensor 7, Gen7
• Aeotec Z-Wave Plus v2 Z-Stick 7, Gen7
• Aeotec aërQ Z-Wave Plus v2 Temperature & Humidity Sensor, Gen7
• Aeotec Smart Home Hub, Z-Wave, Zigbee, WiFi, Matter Gateway Controller

Home Automation Scenes Make Living At Home Easier and Better

This smart home Z-Wave kit includes an assortment of smart home devices that can be included in various home automation scenes to make daily living easier. For example: Program an "Morning – Summer" automation that triggers according a specific time of day or when preselected parameters are triggered:

• From the Smartthings app, set a schedule that runs between 6 am and 8 am to automatically turn on lights controlled by either the illumino WallMote 7, Smart Switch 7, or other connected smart switch in your bedroom. If the MultiSensor 7 detects that there is no motion in the bedroom after 10 minutes, the sensor can trigger the controlling smart switch to turn off the lights.
• Additionally, if the house has cooled sufficiently through the night, include either the MultiSensor 7 or the aërQ Temperature & Humidity Sensor to turn on the AC unit when the temperature reaches your maximum comfort level, whether that's 68° or 80°. After the "Morning – Summer" automation time period ends, program a connected sensor to maintain the temperature until either a manual deactivation of the routine, or at 6pm.

With the Aeotec Smart Home Hub, you can create virtually any kind of smart routines that control your smart home or smart security devices that communicate via Z-Wave, Wi-Fi, Bluetooth, Matter, and Zigbee wireless protocols. Control the Aeotec Smart Home Hub from your phone with the SmartThings app for iOS or Android devices. If you have a voice assistant such as Amazon Alexa, Google Assistant or Apple Siri, you can ask your voice assistant to activate other compatible Z-Wave devices as you leisurely walk between rooms in your home.

Installation Details

The Aeotec Z-Wave Plus Illumino Wall Mote 7 can be installed on any wall as a surface mount switch, placed into a standard 1-gang junction box, or used as a handheld remote control. When surface mounted onto any wall or junction box, use the included hardware. The WallMote 7 magnetically affixes to the included screw plate.

The Multi-Sensor 7 comes with a mounting arm for installation on a wall or in a corner with freedom to adjust. The mounting arm allows you to rotate the sensor up to 360° and adjust its field of view by up to 50°. You can alternatively install the sensor in-wall/ceiling using the recessor mount (sold separately), which reduces the sensor's extrusion from the wall to only 12mm (less than 1/2 inch).

The Aeotec aërQ Temperature & Humidity Sensor comes with a double-sided tape to mount onto virtually any flat surface. If your Z-Wave controller/hub features SmartStart compatibility, you can scan the QR code on the sensor through your Z-Wave hub's mobile app and the sensor will be automatically included into your Z-Wave network.

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Smart Home Hub
• (2) llumino WallMote 7
• Smart Switch 7
• MultiSensor 7
• aërQ Temperature and Humidity Sensor
• Mounting Hardware
• (5) User Manuals

Notes

• Aeotec Smart Home Hub requires an internet-connected Wi-Fi router (available Ethernet port recommended), plus a smartphone or tablet running the SmartThings app.
• All included devices with the exception of the Aeotec Smart Home Hub must be enrolled into a Z-Wave network controller in order to operate remotely.
• MultiSensor 7 is intended for use in dry locations only. Optional batteries not included.

Harmonizing The Digital Home

Aeotec is a leading developer and manufacturer of wireless products which complement the "Digital Smart Home". Their products are designed to save energy, protect the home, and ultimately improve life. They focus on providing innovation, the highest caliber of quality, and unparalleled user experience without sacrifice.

Aeotec Smart Home Hub

• Manufacturer Part #: GP-AEOHUBV3US
• UPC: 810667025410
• Generation: 3rd
• Color: White
• Wireless communication: Z-Wave Plus, Zigbee 3.0, Matter, WiFi a/b/g/n/ac
• Supported Z-Wave Frequencies: 908.4MHz
• Z-Wave Range: Up to 100ft indoors, Up to 30m indoors
• Zigbee Range: Up to 40ft indoor, Up to 12m indoors
• Voice Control: Google Home, Alexa
• CPU: 528MHz ARM Cortex-A7
• Memory: 256MB DDR
• Input: Power Adapter / Barrel plug
• Output: 1x USB
• Power Adapter:
• Input: 100~240VAC 50/60 Hz, 0.4A max
• Output: 5VDC 2A
• Operational Temperature: 32~140°F (0~60°C)
• Operating Requirements:
• Broadband internet
• WiFi router
• Android OS 8.0 or higher
• iOS 12 or higher
• Dimensions: 5 x 5 x 1.2 in (127 x 127 x 31 mm)
• Weight: 0.3 lb
• Certifications: FCC/IC/CE
• Warranty: 1 Year

Aeotec Z-Wave Plus v2 Smart Switch 7, Gen7

• Manufacturer Part #: ZWA023
• UPC: 810667025366
• Repeater: Yes
• Beaming: Yes
• Frequency: 908.42 MHz
• Wireless Range:
• Indoors: 114 feet (35 m)
• Outdoors: 492 feet (150 m)
• Security: Non-Security, S0, S2 Authenticated
• Input Voltage: 100 @ 240 VAC 50/60Hz
• Working Current: 7mA
• Standby Current: 4mA
• Max. Momentary Load: 135V, Max: 15A, 2025W
• Max. Continuous Load:
• Resistive: 120V 60Hz, Max: 15A, 1800W
• Inductive: 120V 60Hz, Max: 10A, 1200W
• Capacitive: 120V 60Hz, Max: 8A, 960W
• Max standby Power: 0.6W
• Minimum Energy Sensor Reading: 2W
• Energy Reading Percentage of Error:
• Less than 300W: ±3W
• Great or equal to 300W: ±1%
• Waterproof Rating: IP20
• Operating Temperature: (32°F to 104°F) 0°C to 40°C
• Relative Humidity: 8 to 80 percent
• Dimensions: 3.5 x 1.4 x 1.3 inches (91.0 x 35.6 x 33.0 mm)
• Certifications: Z-Wave Plus, FCC, CE, RoHS, ETL
• Warranty: 1-Year Limited

Aeotec illumino WallMote 7

• Manufacturer Part #: ZWA022-A
• UPC: 810667025519
• Z-Wave Plus: Yes
• Series 700: Yes
• Repeater: No
• Beaming: No
• Security Class: S2 auth, S2 unauth, Non-Secure
• SmartStart: Yes
• Number of Child Nodes: 2
• Number of Buttons: 2
• Press functions per Group Association:
• Tap
• Press and Hold
• Release
• Press Functions per Scene Use:
• Tap
• 2x Tap
• 3x Tap
• 4x Tap
• 5x Tap
• Press and Hold
• Release
• Control Use:
• Scene Control
• Group Association
• Power Supply: 2x 3.0V CR2032 batteries
• Continuous Maximum Load:
• 960W LED, CFL, Halogen, Incandescent
• 1/2 HP Motor
• 1800W (15 A) Resistive
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 8% to 80%.
• Operating Distance: 144ft (35m) Indoor, 394ft (120m) Outdoor
• Product Dimensions: 4.09 x 1.8 x 0.51 inches (105 x 46 x 13 mm)
• Product Weight: 0.04 lbs (20g)

Aeotec MultiSensor 7, Gen7

• Manufacturer Part #: ZWA024
• UPC: 810667025403
• Z-Wave Plus Certified: Yes
• Series 700: Yes
• S2 Security: Yes
• FLiRs supported: Yes
• Power Supply:
• USB DC 5V
• Battery power (2 x CR123A batteries, 3V, 1500mAh)
• Not compatible to rechargeable CR123A batteries (3.7V)
• Maximum power consumption during a report: 28mA
• Voltage input:
• USB power:
• Min Voltage = 4.5VDC
• Max Voltage = 5.5VDC
• Battery Power:
• Min Voltage = 2.6VDC
• Max voltage = 3.2VDC
• Repeater:
• Battery powered: No
• USB powered: Yes
• Sensor Technical Information:
• Measured Temperature Range: 14°F to 122°F (-10°C to 50°C)
• Temperature Accuracy: ±1.8°F (±1°C)
• Measured Humidity Range: 20%RH to 90%RH
• Humidity Accuracy: ±5% RH (at 25°C/77°F)
• Lighting: 0 LUX to 30000 LUX
• UV Range: 0 to 11 UV index
• Operating Humidity: 8% to 80%
• Operating Temperature: 32°F to 104°F (0 to 40°C)
• Max Motion Detection Range: 33ft (10m)
• Water Proofing: IP20 rating
• Battery Life: ~3 years using 2x CR123A batteries
• Operating Distance:
• Up to 492 feet outdoors
• Up to 150 metres outdoors
• Weight: 65 g
• Product Dimensions: 45 x 45 x 35 mm
• Back Mount Plate Dimensions: 24 x 24 mm

Aeotec aërQ Z-Wave Plus v2 Temperature & Humidity Sensor, Gen7

• Manufacturer Part #: ZWA039
• UPC: 810667025526
• Z-Wave Chip: ZGM130
• Z-Wave Plus Certified: Yes
• Z-Wave Version: Series 700 and Gen7
• Z-Wave SDK: 7.12 or later
• Security: S2 native
• QR Code Inclusion: SmartStart native
• Repeater: No
• Beaming: No
• FLiRs: No
• Battery: CR2477 3V Lithium (LiMnO2)
• Battery Life: With factory default setting up to 2 years.
• Wireless Range:
• Indoors: 164 feet (50 m)
• Outdoors: 492 feet (150 m)
• Humidity Range: 0 to 80 percent
• Temperature Range: -10 to 65°C (±1°C) / 14 to 146°F (±1.8°F)
• Dew Point Range: -10 to 65°C (±1°C) / 14 to 146°F (±1.8°F)
• Operating Humidity: 10 to 95%
• Operating Temperature: 0°C to 45°C / 32°F to 113°F
• Storage Temperature: -30°C to 70°C / -20°F to 158°F
• Dimensions: 35 x 35 x 18 mm / 1.38 x 1.38 x 0.7 in
• Water Proofing: IP20 rating
• Warranty: 1-Year
