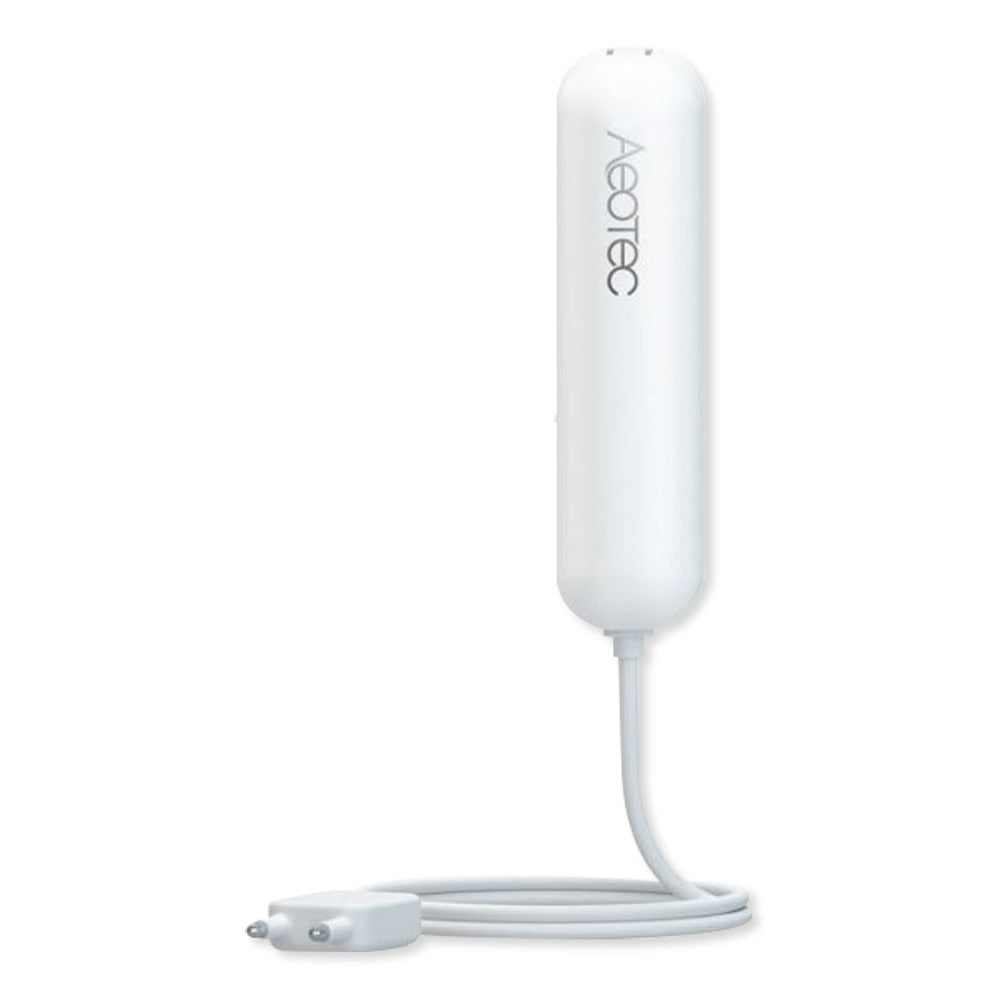

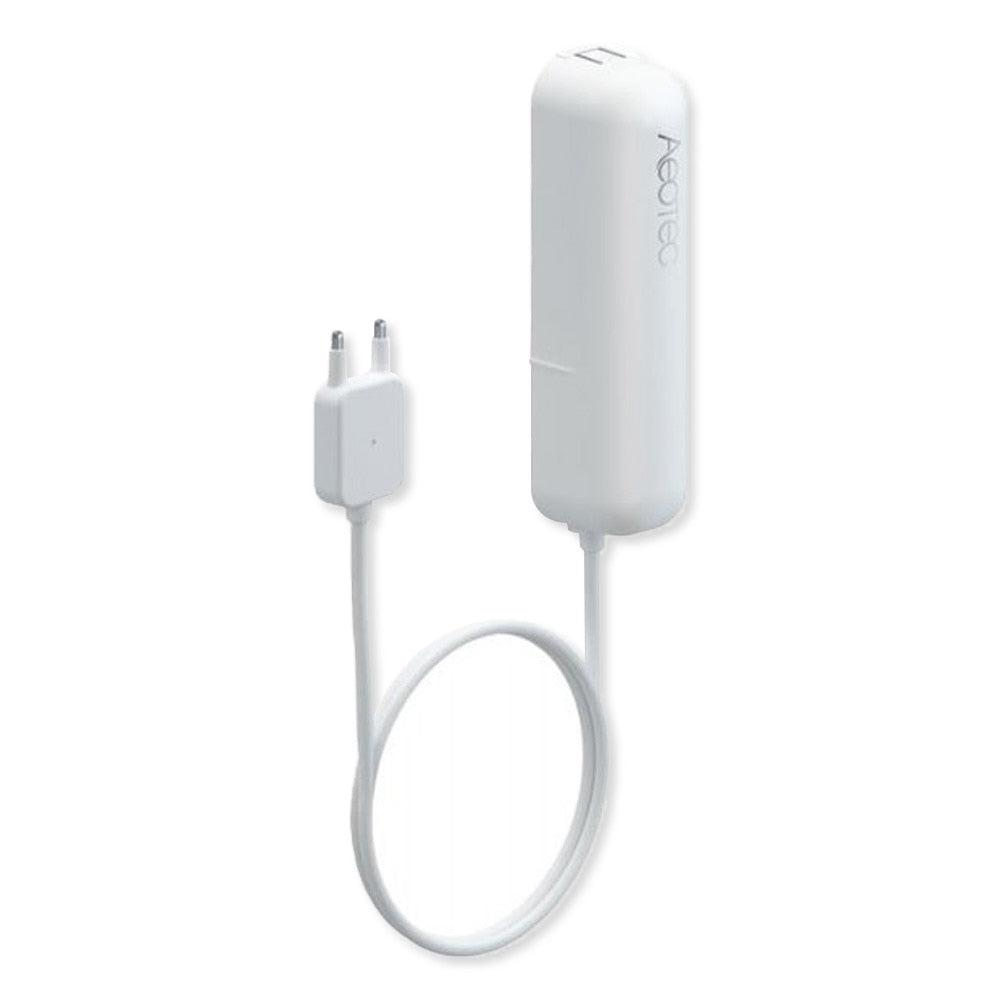

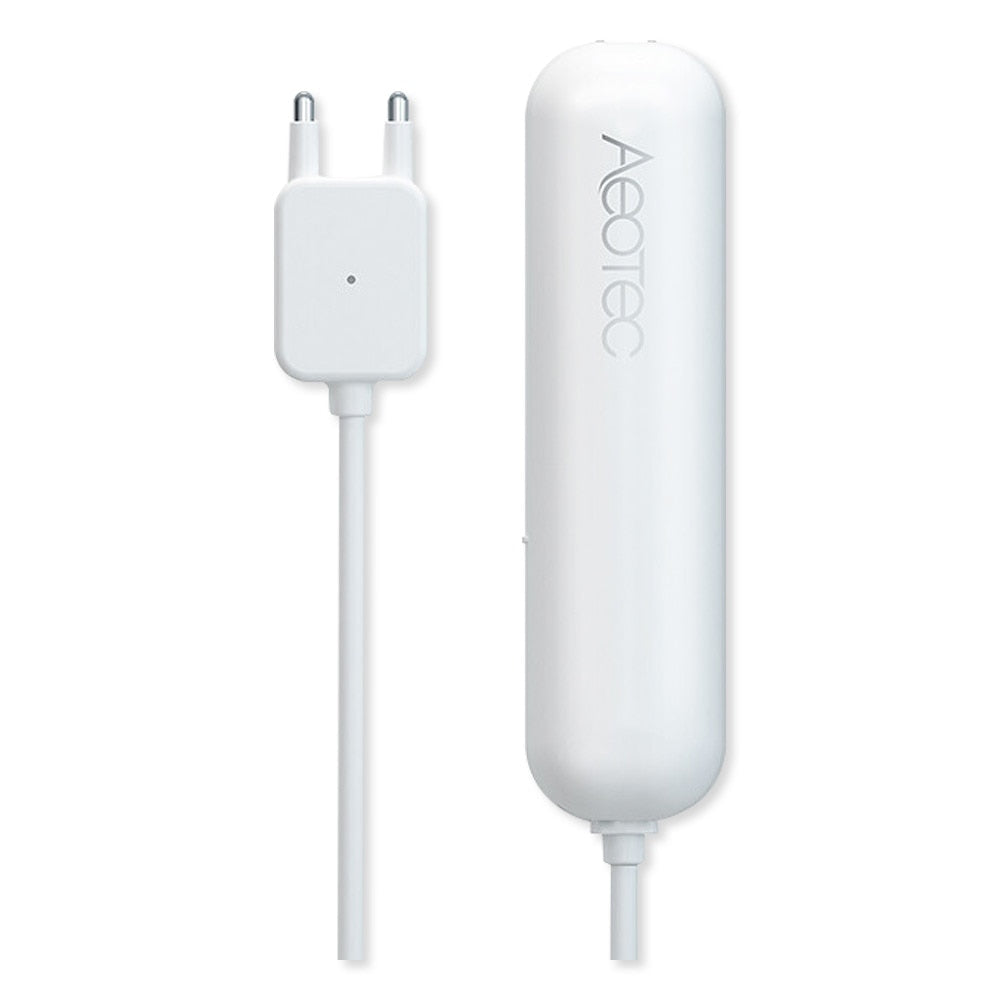

Aeotec Z-Wave Plus v2 Water Sensor 7 Basic, Gen7

Receive Immediate Alerts When Leaks Appear

Receive real time alerts when water leaks occur or when water levels change with the Aeotec Z-Wave Plus v2 Water Sensor 7 Basic. This Z-Wave leak sensor sends alerts to a connected security panel, receiver, or hub when it detects water in sensitive areas, preventing water damage or flooding from damaging your property. The leak sensor can also be used to measure water levels within containers such as water tanks, pools, hot tubs, etc. This Z-Wave sensor utilizes Z-Wave 700 software for increased transmission range, battery life, and signal encryption for guaranteed operation.

• Z-Wave sensor reports both the presence of water in unwanted areas and low water levels in containers
• Detects as little as 0.5mm or 0.02" of water in a monitored area
• Capable of issuing On/Off Z-Wave commands to Z-Wave connected pumps, valves, and other devices
• Assists in monitoring for the potential for harmful mold spores when paired with devices using aërQ technology

The Water Sensor 7 Basic can detect as little as 0.5mm or 0.02" of water in a designated area. This level of sensitivity gives you the maximum amount of time to respond to an alert before serious damage occurs. The Water Sensor 7 Basic can be programmed to work with smart water valves or electronic sump pumps to seal off in case of a pipe burst or leak, or coordinate with Z-Wave controllers to shut off electronics to prevent electrical shortages.

Installation Details

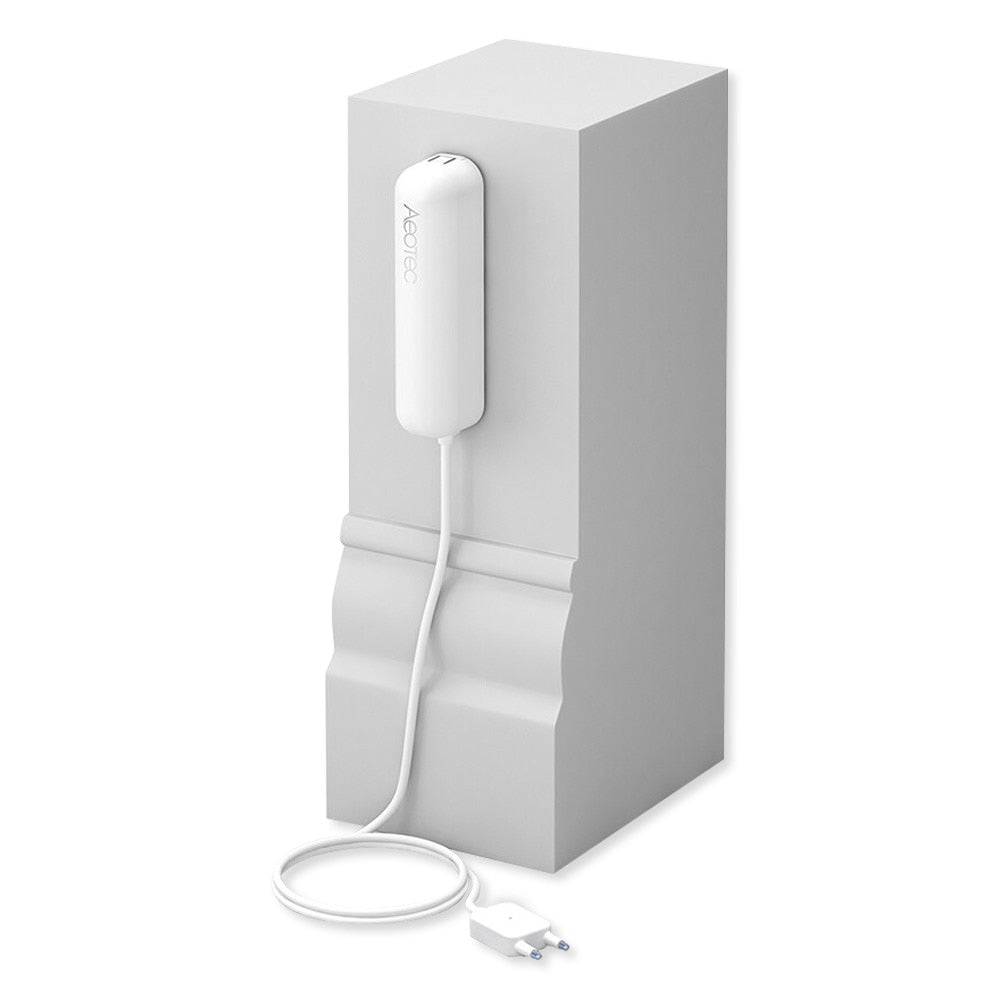

The Water Sensor 7 Basic can be placed on any flat surface whether on the floor, countertop, or adhered to a wall appliance, or any other vertical surface. The sensor's small size allows you to place it in virtually any hard to reach space where water can accumulate. When placing the Water Sensor 7, consider the direction in which a flood or leak may flow to ensure the water will come in contact with the sensor.

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave 700 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series, Gen7 Z-Wave, or Z-Wave Plus v2. Z-Wave 700 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Water Sensor 7
• Cover
• (2) Double-Sided Tape
• (4) Dowels
• (4) Screws

Notes

• Requires a Z-Wave network controller to operate.
• Unlike the ZWA019, this sensor cannot detect temperature or humidity.
• Batteries not included.

Harmonizing The Digital Home

Aeotec is a leading developer and manufacturer of wireless products which complement the "Digital Smart Home". Their products are designed to save energy, protect the home, and ultimately improve life. They focus on providing innovation, the highest caliber of quality, and unparalleled user experience without sacrifice.

• Manufacturer Part #: ZWA018
• UPC: 810667025328
• Z-Wave Version: 7.12 or later
• Smart Start: Yes
• Repeater: No
• Beaming Capable: No
• Security Supported: S2 Unauthenticated, S2 Authenticated
• Operating Distance:
• Approx. 164 feet indoors / Approx 50 meters indoors
• Up to 492 feet outdoors / Up to 150 meters outdoors
• Probe Wire Length: 3.5ft (10m – extension wire resistance must be 1.2 ohms)
• Operating Humidity: 10% to 95%
• Operating Temperature: 32 to 113°F (0 to 45°C)
• Storage Temperature: -22 to 158°F (-30 to 70°C)
• Max Current Consumption: 5mW
• Battery Type: 1/2 AA ER14250 3.6V
• Battery Life: 3 years
• Weight: 1.48 oz (42.5g)
• Dimensions: 2.76 x 0.51 x .79 inches (70 x 13 x 20 mm)
• Waterproofing: IP65 rating
• Ratings and Certifications: IP20 under IEC 60529
• Warranty: 1-Year Limited
