Home Controls Z-Wave Smart Home Kit: Lighting and Climate Control

Expand the Size and Potential of Your Z-Wave Network

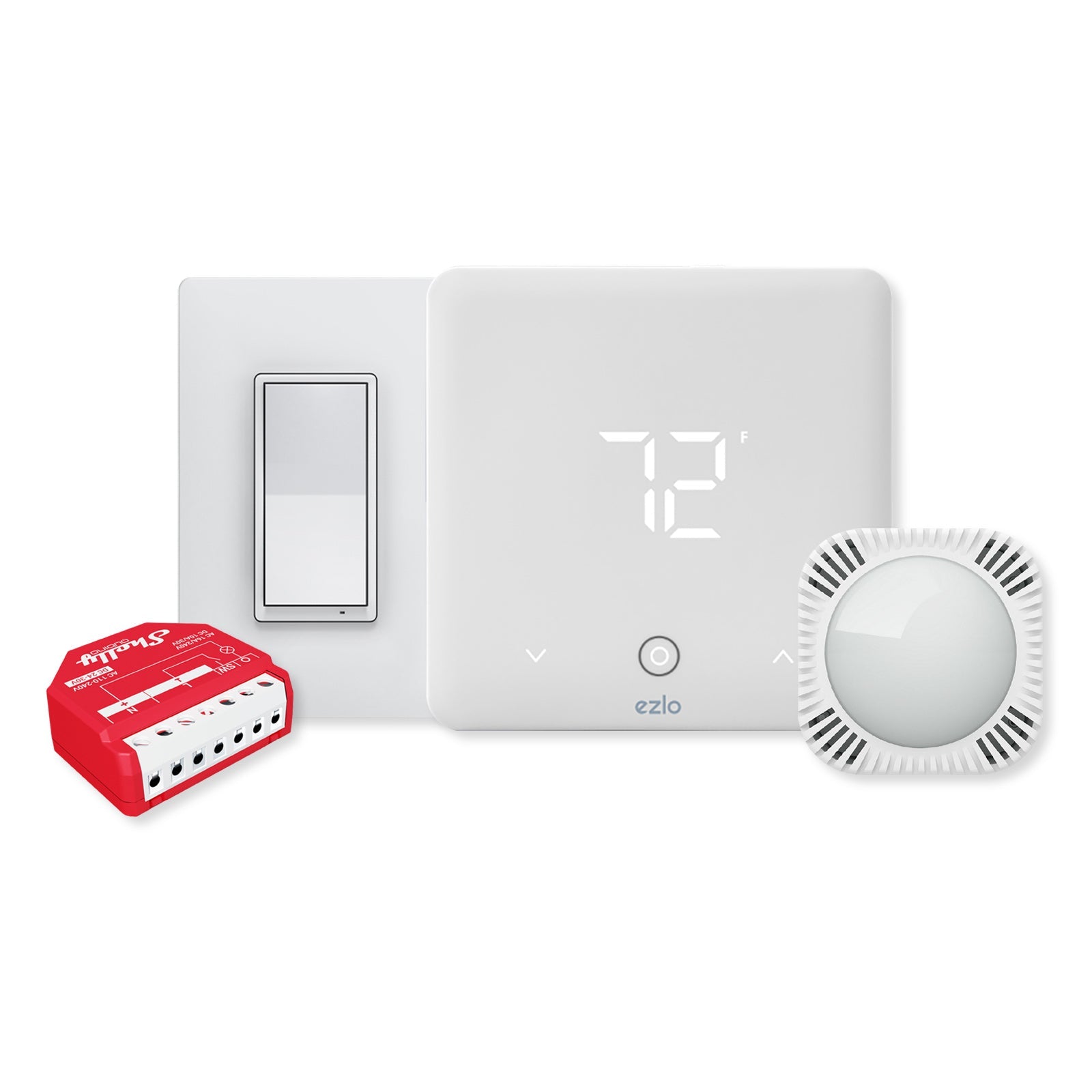

Home Controls has cultivated a selection of Z-Wave products to help build out your Z-Wave network with the Home Controls Z-Wave Smart Home Kit: Lighting and Climate Control! This smart home Z-Wave kit consists of handpicked devices that will seamlessly integrate into your existing home Z-Wave network or serve as the bedrock of a new smart home system. Included in this are two Aeotec illumino WallMote 7, two Aeotec Z-Wave Plus MultiSensor 7, Shelly Qubino Wave 1PM Z-Wave Relay Module with Power Monitoring, and the Ezlo Z-Wave Plus Smart Thermostat, 800 Series. With these devices, you will be able to control at least 2 separate lighting or electrical loads, monitor environmental settings within a single room, and control your HVAC system, all from your mobile device or computer.

This kit does not include a Z-Wave compatible hub or gateway, which is necessary for all included devices to operate. If you do not already own a Z-Wave hub, select from one of our available options here.

• Z-Wave automation kit includes 3 Z-Wave switches, 1 thermostat, and 2 sensors
• Aeotec illumino WallMote 7 commands Z-Wave devices and scenes through 6 programmable multi-tap button presses as a wall mounted or remote switch
• Aeotec Z-Wave Plus MultiSensor 7 detects motion, vibration, temperature, humidity, ambient light levels, and UV light levels within a 33ft zone
• Shelly Qubino Wave 1PM Z-Wave Relay Module installs behind a switch or outlet to add remote Z-Wave control and power monitoring
• Ezlo Z-Wave Plus Smart Thermostat provides local and remote control over single and multi-stage HVAC systems and heat pump systems
• Z-Wave hub sold separately

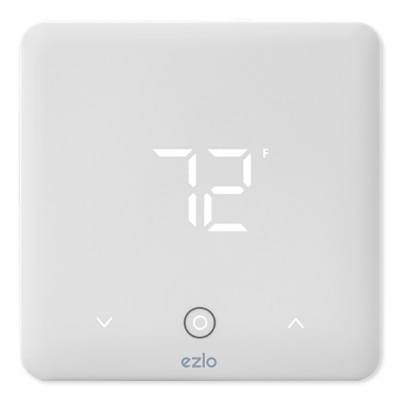

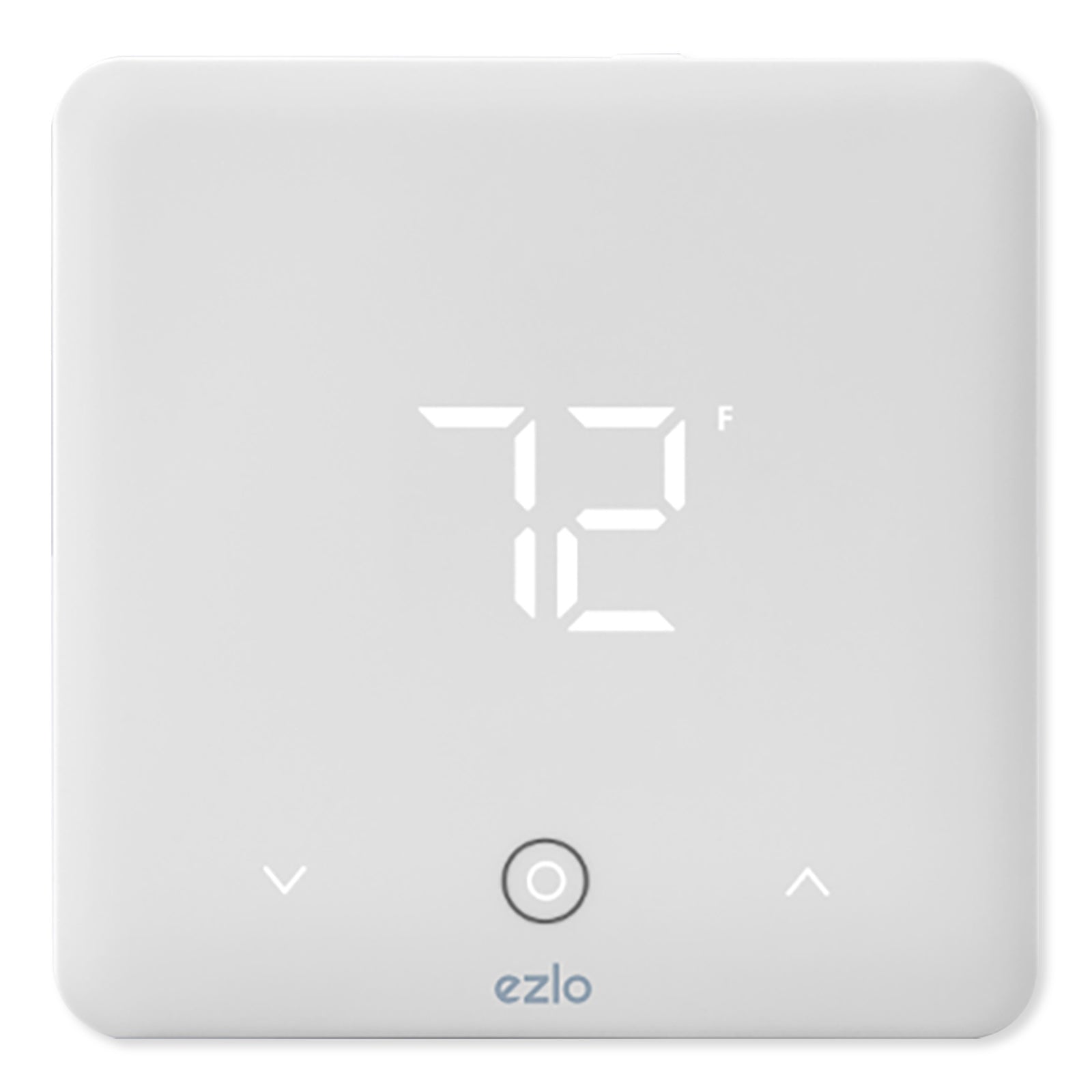

The Ezlo Z-Wave Plus Smart Thermostat, 800 Series offers simple but intuitive touch controls on its backlit LED touchscreen. Raise or lower your target temperature with the up and down arrows or access settings with the center function button at the bottom of the screen. Program unique temperature set points for every day of the week based on your personal schedule. The Smart Thermostat provides 4 time periods to set per day to ensure optimal comfort levels and maintain energy efficiency. All of these settings can be adjusted from the thermostat or by using your smart mobile device through the MiOS mobile app.

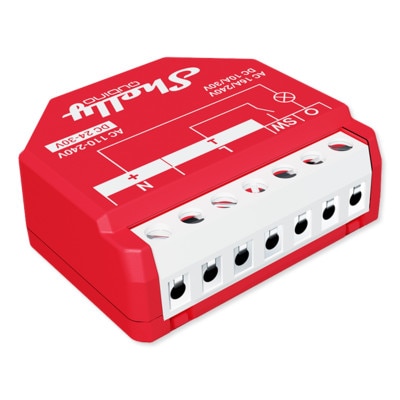

The Shelly Qubino Wave 1PM Z-Wave Relay Module with Power Monitoring adds a single switch or outlet to your Z-Wave network through a wired retrofit connection between your home's power load and a chosen switch or outlet. Once installed, the Wave 1PM will enable your connected device to respond to remote commands and automated scenes, as well as monitor energy consumption of devices connected to your selected switch or outlet. The Wave 1PM can be remotely controlled and included in Z-Wave automated scenes from the Shelly Smart Control app or your connected Z-Wave hub's app.

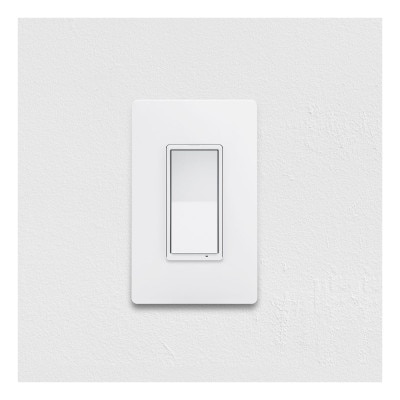

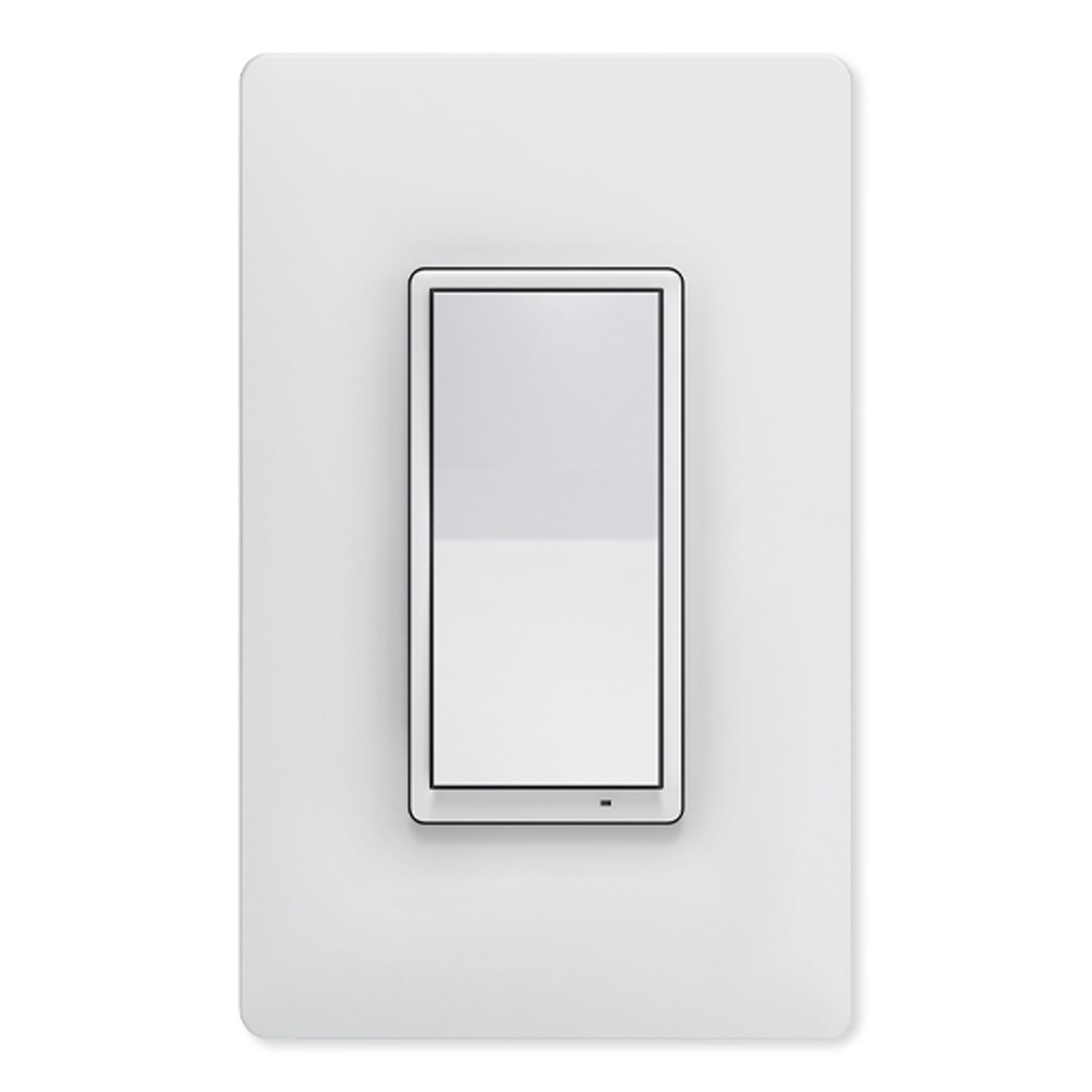

The Aeotec illumino WallMote 7 is a battery powered remote control Z-Wave 700 switch designed to look and behave as a standard wall switch but with the benefits of a wireless remote controller. The WallMote 7 is capable of controlling virtually any Z-Wave device in your network via its Multi-tap functionality, issuing On/Off controls to lights and appliances, Dim/Brighten commands to dimmable lights, and activating/deactivating pre-programmed scenes. If your Z-Wave hub/gateway is capable of controlling other wireless devices such as Wi-Fi or Zigbee connected devices, the WallMote 7 can control those devices as well.

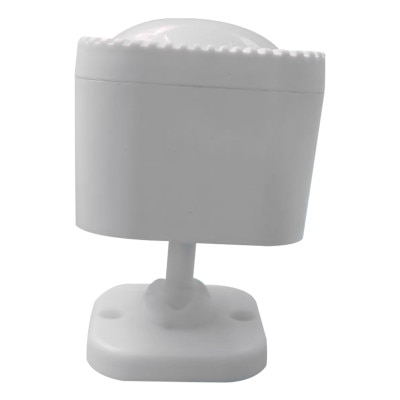

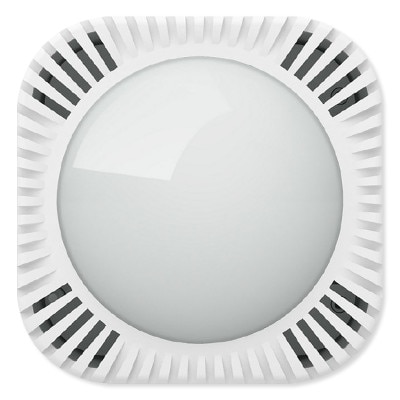

The Aeotec Z-Wave Plus MultiSensor 7 is a six-in-one sensor that detects motion, vibration, temperature, humidity, ambient light levels, and UV light levels within a 33ft zone and reports data to your connected Z-Wave controller. The sensor can be programmed to alert you when certain thresholds are reached, or give your real-time information when you check in on your mobile device or web portal. The Multi-Sensor 7 is compatible with all major Z-Wave hubs and controllers.

For a more in-depth view of the included Z-Wave devices please visit:

• Aeotec Z-Wave Plus illumino WallMote 7
• Aeotec Z-Wave Plus v2 MultiSensor 7, Gen7
• Shelly Qubino Wave 1PM Z-Wave Relay Module with Power Monitoring
• Ezlo Z-Wave Plus Smart Thermostat, 800 Series

Home Automation Scenes Make Living At Home Easier and Better

This smart home Z-Wave kit includes a great assortment of smart home devices that can be included in multiple home automation scenes. For example: Program "Away" and "Sleep" that triggers according to time of day or whenever you want:

• Use a multi-tap input of the Aeotec Z-Wave Plus illumino WallMote 7 to turn off all Z-Wave controlled lights and set the Ezlo Z-Wave Plus Smart Thermostat to a preset temperature to keep your home comfortable while you are out or going to bed.
• Install the Shelly Qubino Wave 1PM Z-Wave Relay Module behind the outlet your TV is plugged into to monitor when the TV is on and set a time to deactivate the outlet.

If you have a voice assistant such as Amazon Alexa, Google Assistant or Apple Siri, you can ask your voice assistant to activate other compatible Z-Wave devices as you leisurely walk between rooms in your home.

Installation Details

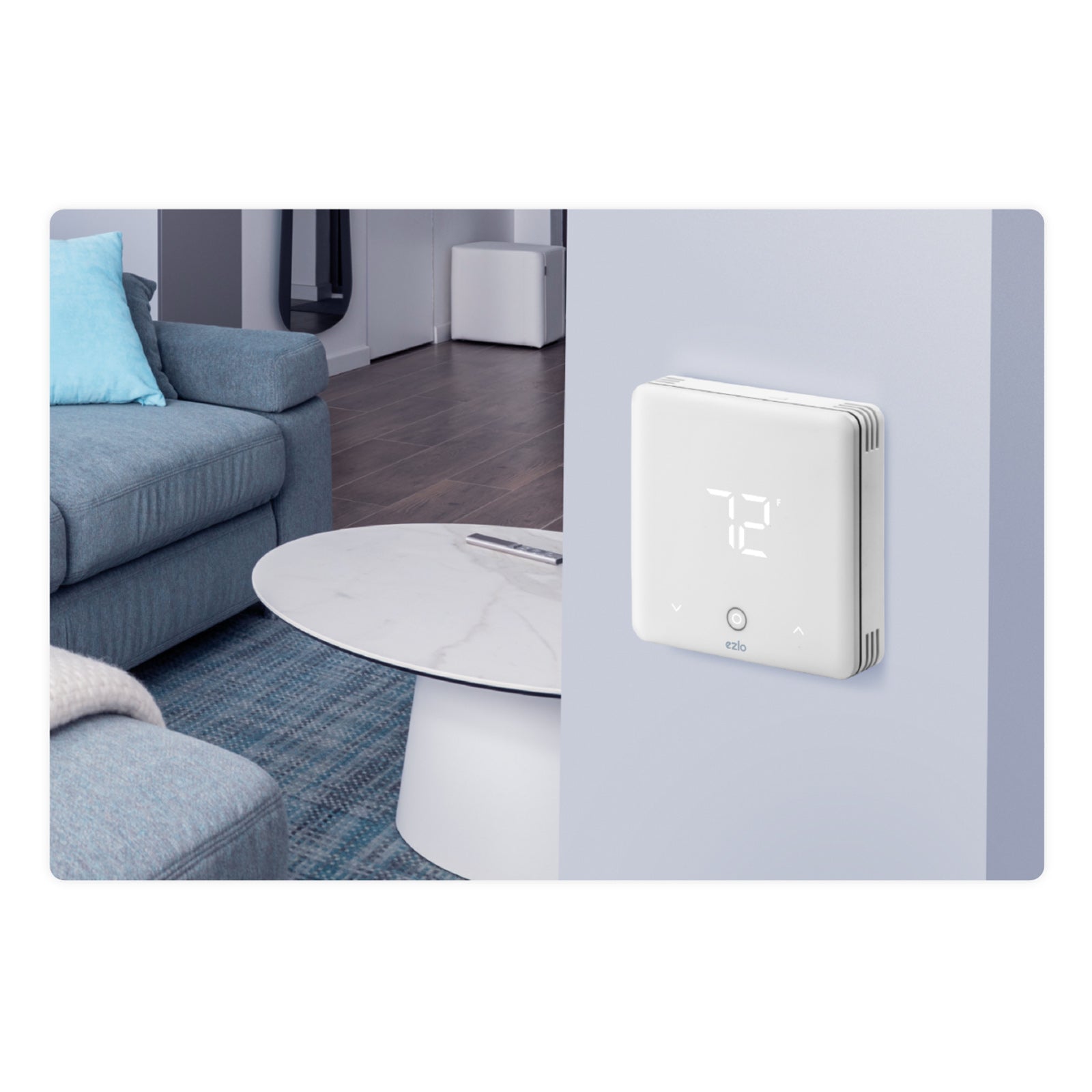

The Ezlo Z-Wave Plus Smart Thermostat, 800 Series mounts onto walls, replacing existing thermostats or as part of a new construction. The Ezlo Smart Thermostat mounts to the wall with the included backplate and mounting screws and wires to the HVAC system.

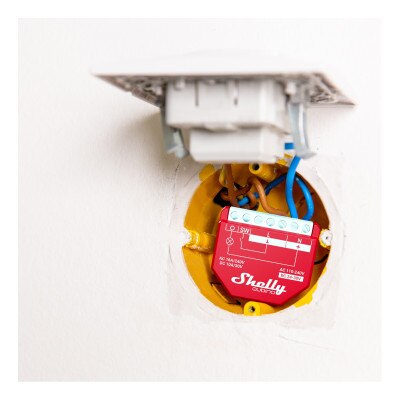

The Shelly Qubino Wave 1PM Z-Wave Relay Module with Power Monitoring fits in behind a wall switch or outlet, and requires a neutral wire for setup. The Wave 1PM will automatically attempt to locate and request inclusion into your local Z-Wave network after it is installed.

The Aeotec Z-Wave Plus Illumino Wall Mote 7 can be installed on any wall as a surface mount switch, placed into a standard 1-gang junction box, or used as a handheld remote control. When surface mounted onto any wall or junction box, use the included hardware. The WallMote 7 magnetically affixes to the included screw plate.

The Multi-Sensor 7 comes with a mounting arm for installation on a wall or in a corner with freedom to adjust. The mounting arm allows you to rotate the sensor up to 360° and adjust its field of view by up to 50°. You can alternatively install the sensor in-wall/ceiling using the recessor mount (sold separately), which minimizes the sensor's extrusion from the wall to only 12mm (less than 1/2 inch).

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Ezlo Thermostat
• Wave 1PM
• DSK Label
• (2) Aeotec illumino WallMote 7
• (2) Aeotec MultiSensor 7
• Battery Cover
• Mounting Hardware
• (5) User Manuals

NOTE: All devices require a Z-Wave compatible gateway or system hub (sold separately) that is connected to a local internet network.

Automation Products & Support Since 1989

Home Controls is the premier national distributor for the most comprehensive and unique home automation systems since 1989! Whether you are a professional installer or a do-it-yourself homeowner, our online store carries the supplies you need including: whole home automation, smart home systems, remote lighting and appliance controls, home security and video surveillance, home theatre, audio and video distribution, networking, telephones and intercoms, climate controls, central vacuums, structured wiring systems, installation tools and accessories, independent living devices, and so much more.

Aeotec illumino WallMote 7

• Manufacturer Part #: ZWA022-A
• UPC: 810667025519
• Z-Wave Plus: Yes
• Series 700: Yes
• Repeater: No
• Beaming: No
• Security Class: S2 auth, S2 unauth, Non-Secure
• SmartStart: Yes
• Number of Child Nodes: 2
• Number of Buttons: 2
• Press functions per Group Association:
• Tap
• Press and Hold
• Release
• Press Functions per Scene Use:
• Tap
• 2x Tap
• 3x Tap
• 4x Tap
• 5x Tap
• Press and Hold
• Release
• Control Use:
• Scene Control
• Group Association
• Power Supply: 2x 3.0V CR2032 batteries
• Continuous Maximum Load:
• 960W LED, CFL, Halogen, Incandescent
• 1/2 HP Motor
• 1800W (15 A) Resistive
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 8% to 80%.
• Operating Distance: 144ft (35m) Indoor, 394ft (120m) Outdoor
• Product Dimensions: 4.09 x 1.8 x 0.51 inches (105 x 46 x 13 mm)
• Product Weight: 0.04 lbs (20g)

Aeotec MultiSensor 7, Gen7

• Manufacturer Part #: ZWA024
• UPC: 810667025403
• Z-Wave Plus Certified: Yes
• Series 700: Yes
• S2 Security: Yes
• FLiRs supported: Yes
• Power Supply:
• USB DC 5V
• Battery power (2 x CR123A batteries, 3V, 1500mAh)
• Not compatible to rechargeable CR123A batteries (3.7V)
• Maximum power consumption during a report: 28mA
• Voltage input:
• USB power:
• Min Voltage = 4.5VDC
• Max Voltage = 5.5VDC
• Battery Power:
• Min Voltage = 2.6VDC
• Max voltage = 3.2VDC
• Repeater:
• Battery powered: No
• USB powered: Yes
• Sensor Technical Information:
• Measured Temperature Range: 14°F to 122°F (-10°C to 50°C)
• Temperature Accuracy: ±1.8°F (±1°C)
• Measured Humidity Range: 20%RH to 90%RH
• Humidity Accuracy: ±5% RH (at 25°C/77°F)
• Lighting: 0 LUX to 30000 LUX
• UV Range: 0 to 11 UV index
• Operating Humidity: 8% to 80%
• Operating Temperature: 32°F to 104°F (0 to 40°C)
• Max Motion Detection Range: 33ft (10m)
• Water Proofing: IP20 rating
• Battery Life: ~3 years using 2x CR123A batteries
• Operating Distance:
• Up to 492 feet outdoors
• Up to 150 metres outdoors
• Weight: 65 g
• Product Dimensions: 45 x 45 x 35 mm
• Back Mount Plate Dimensions: 24 x 24 mm

Ezlo Z-Wave Plus Smart Thermostat, 800 Series

• Manufacturer Part #: EZL-TSTAT-US
• UPC: 850010803074
• Power Supply: AC/DC24V / 4*AAA Dry Battery (device will enter low power working state)
• Application Range: Gas/Fuel Boiler, Electric Heating, Water Heating, Heat Pumps & more
• Frameless Display: Tempered Glass +PC+ABS
• Self-Consumption: < 1W
• Resistive Load: < 1A
• Temperature Setting Range: 32~104° F (0 ~ 40°C)
• Precision: 0.1°C (1 °F)
• Enclosure: Tempered Glass+PC+ABS
• Wire Connection: Terminal
• Dimensions: 113 x 113 x 19mm (4.45 x 4.45 x 0.75 inches)
• Installation: 60.3mm (2.37 inches) hole pitch
• Z-Wave Frequency: 904.42 MHz with S2 encryption
• Warranty: 1-Year Limited

Shelly Qubino Wave 1PM Z-Wave Relay Module with Power Monitoring

• Manufacturer Part #: Wave 1PM
• EAN: 3800235269022
• Power Supply: 110-240 V AC / 24amp 30 VDC
• Power Consumption: <0.3 W
• Power Measurement (W): Yes
• Max. Switching Voltage AC: 240 V
• Max. Switching Current AC: 16 A
• Max. Switching Voltage DC: 30 V
• Max. Switching Current DC: 10 A
• Overheating Protection: Yes
• Overload Protection: Yes
• Distance: Up To 40 M Indoors (131 Ft.) (Depends On Local Condition)
• Z-Wave Repeater: Yes
• CPU: Z-Wave S700
• Z-Wave Frequency Bands: 908.42 Mhz
• Maximum Radio Frequency Power Transmitted In Frequency Band(s): < 25 Mw
• Size (H x W x D): 37 x 42 x 16 ±0.5 Mm / 1.46 x 1.65 x 0.63 ±0.02 In
• Weight: 27 G / 0.95 Oz.
• Mounting: Wall Console
• Screw Terminals Max. Torque: 0.4 Nm / 3.5 Lb In
• Conductor Cross Section: 0.5 To 1.5 Mm2 / 20 To 16 Awg
• Conductor Stripped Length: 5 To 6 Mm / 0.20 To 0.24 In
• Shell Material: Plastic
• Color: Red
• Ambient Temperature: -20°C To 40°C / -5°F To 105°F
• Humidity: 30% To 70% RH
• Max. Altitude: 2000 M / 6562 Ft.
• Warranty: 2 Year
