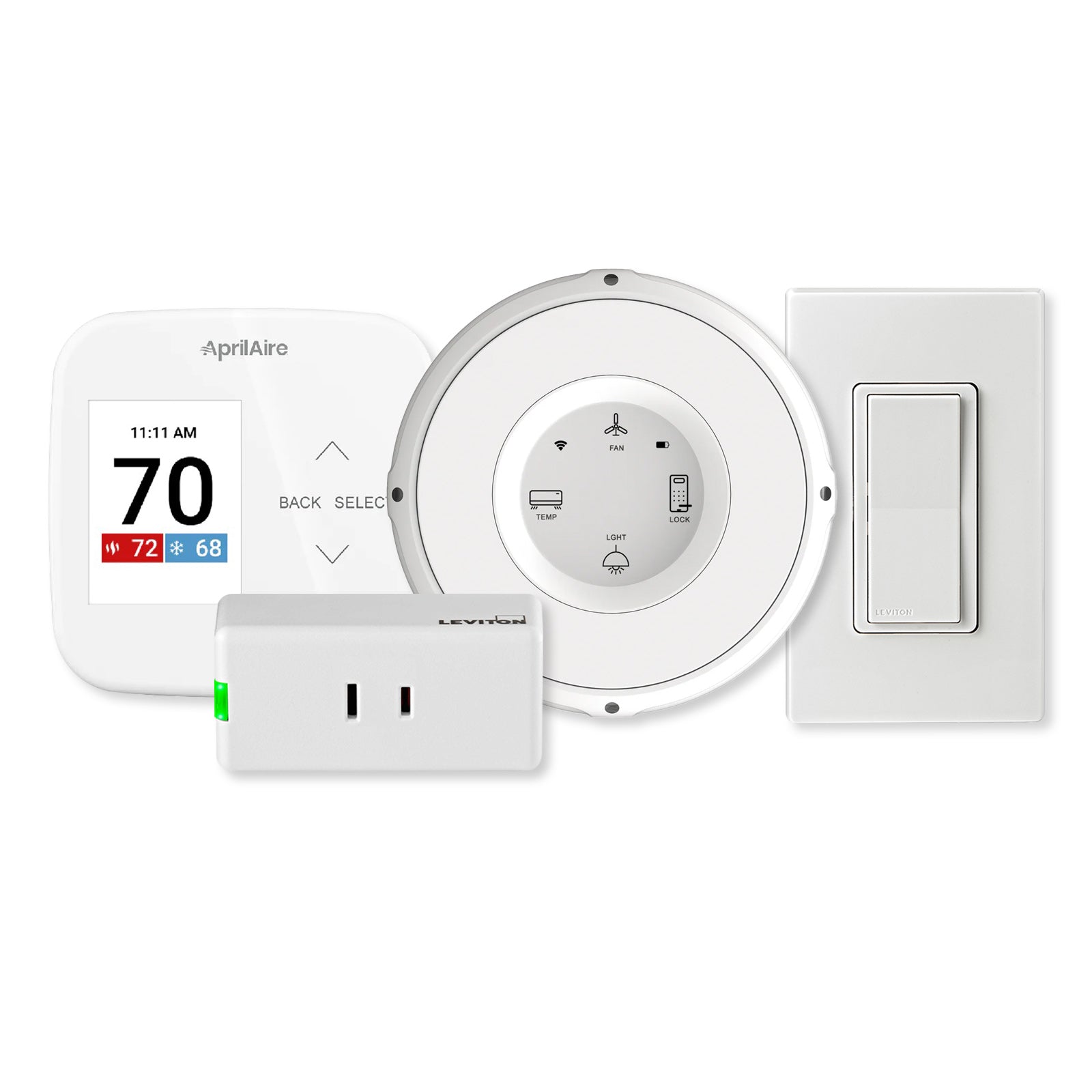

Home Controls Wi-Fi Smart Home Kit: Starter Kit

SKU: HCIWFKIT2

Order now and we'll ship same business day (if ordered before 3 pm PST).

$364.88

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Use Wi-Fi Smart Devices To Add Automation Control To Your Home

Convert your home into a smart home with the Home Controls Smart Home Kit: Wi-Fi Starter Kit. This smart home kit will allow you to automatically turn on/off lights, adjust the temperature in your home, and control the on/off status of a plug-in device all from your smartphone. It's a fantastic kit to help you get started in the world of home automation where you can enhance your daily routine and quality of life with convenient remote management of Wi-Fi connected devices. All of these devices can be controlled directly through their respective mobile app using your smartphone or tablet, a compatible Wi-Fi hub's mobile app, or with the included Linxura Smart Controller. Additionally, all of these Wi-Fi smart devices are compatible with Amazon Alexa and Google Assistant for voice commands. Some of the included devices are compatible with other smart home platforms and protocols like Matter, IFTTT, SmartThings, and Apple HomeKit.

  • Linxura Controller commands Wi-Fi smart devices including lights, switches, thermostats, speakers, and more, no smart hub required
  • AprilAire Programmable Wi-Fi Thermostat Wi-Fi programmable thermostat with 24/7-day scheduling
  • Leviton Decora Smart Wi-Fi Switch enables local and remote On/Off control of lights and devices
  • Leviton Decora Smart Wi-Fi Mini Plug-In Dimmer controls plug-in LEDS & CFLS up to 100W and incandescents up to 300W

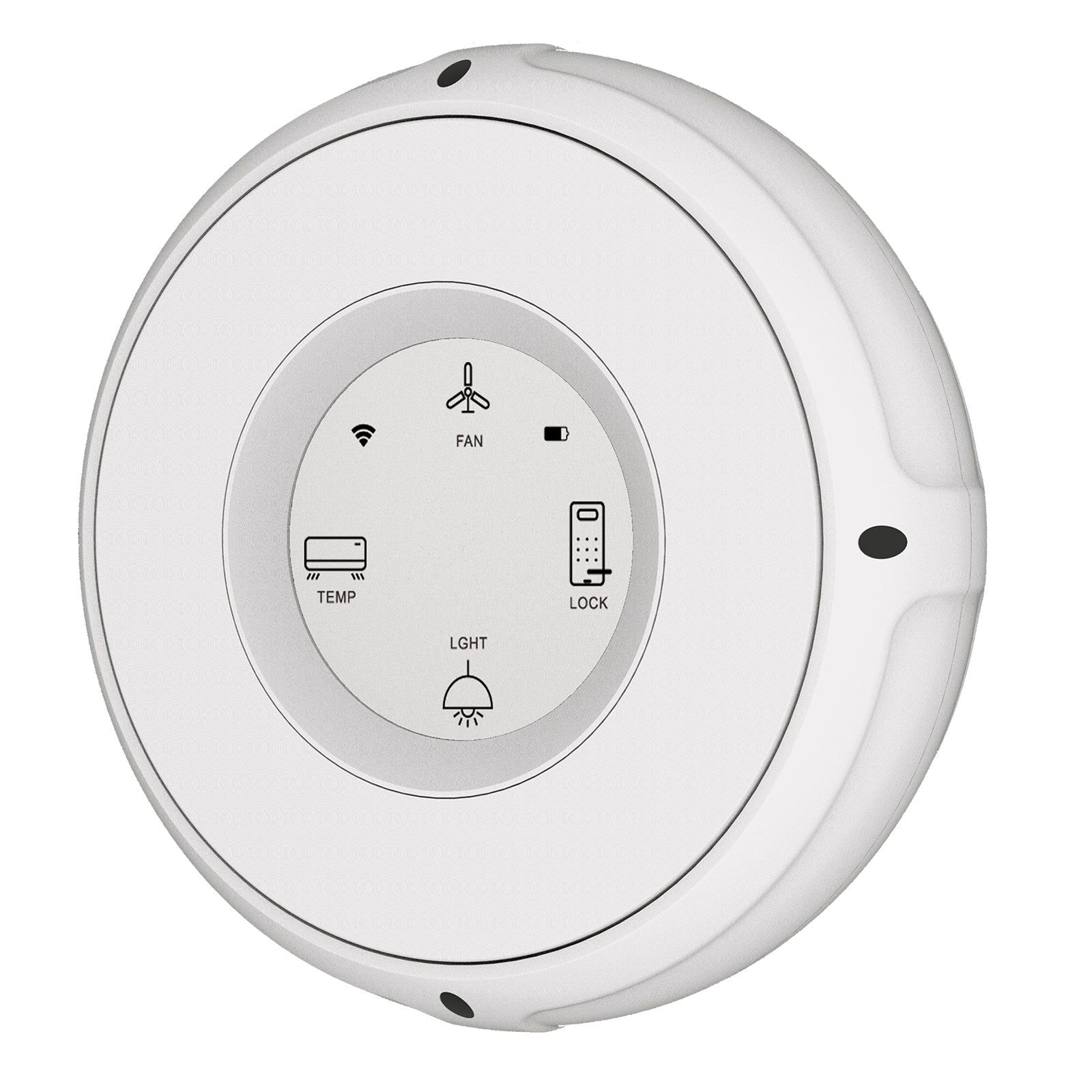

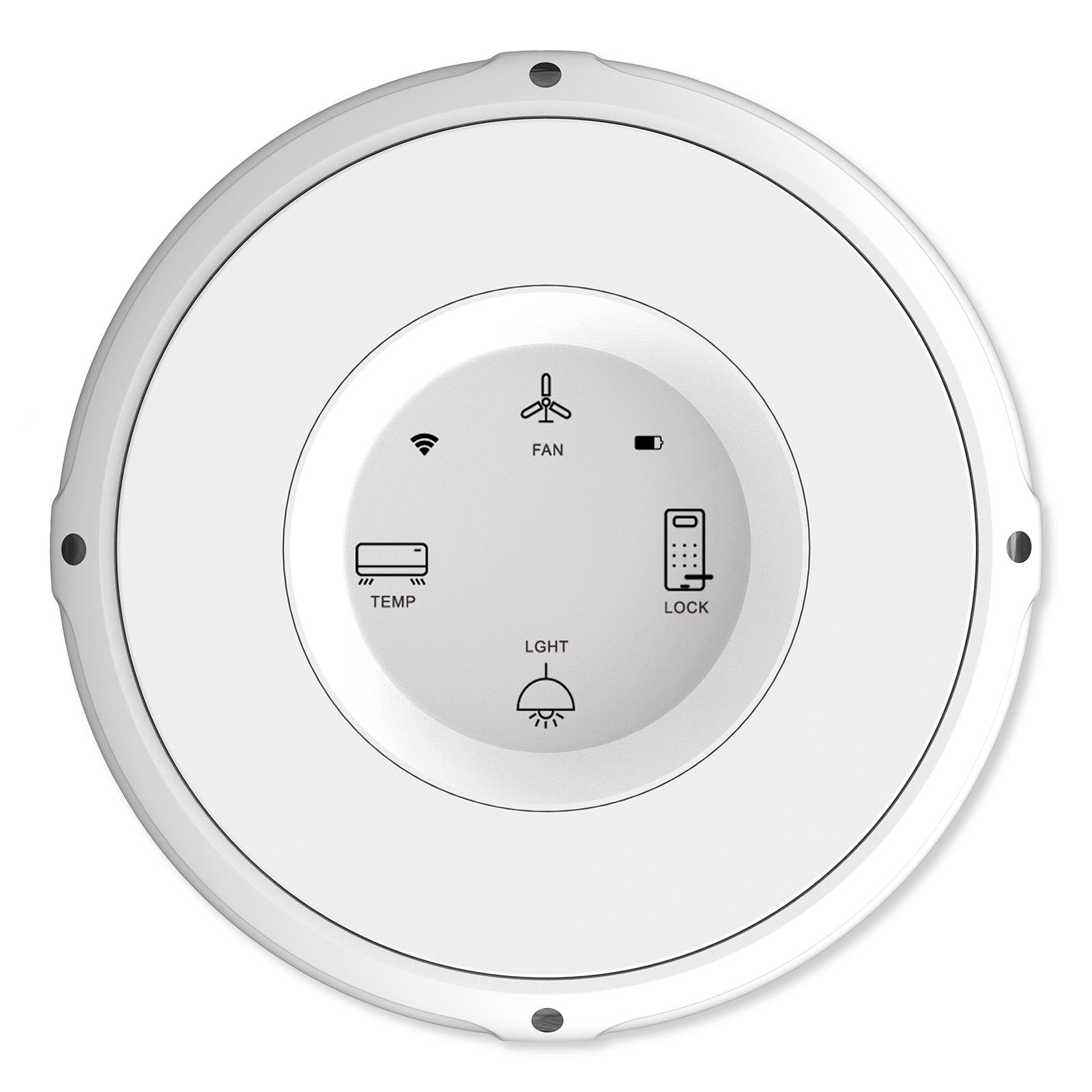

The Linxura Wi-Fi Smart Controller comes in a small portable design that allows you to carry it anywhere in your home. It can support up to 52 Wi-Fi smart devices such as lights, switches, thermostats, speakers, and more; plus it's designed with an intuitive rotating click wheel for menu navigation, dim/brighten, volume control, and for commanding paired Wi-Fi devices.

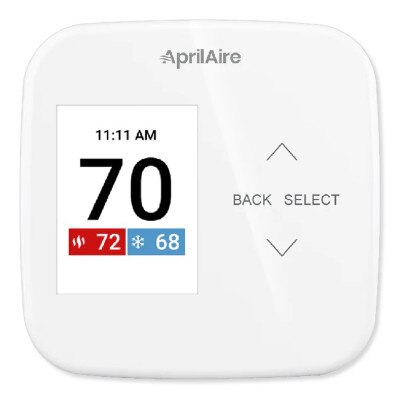

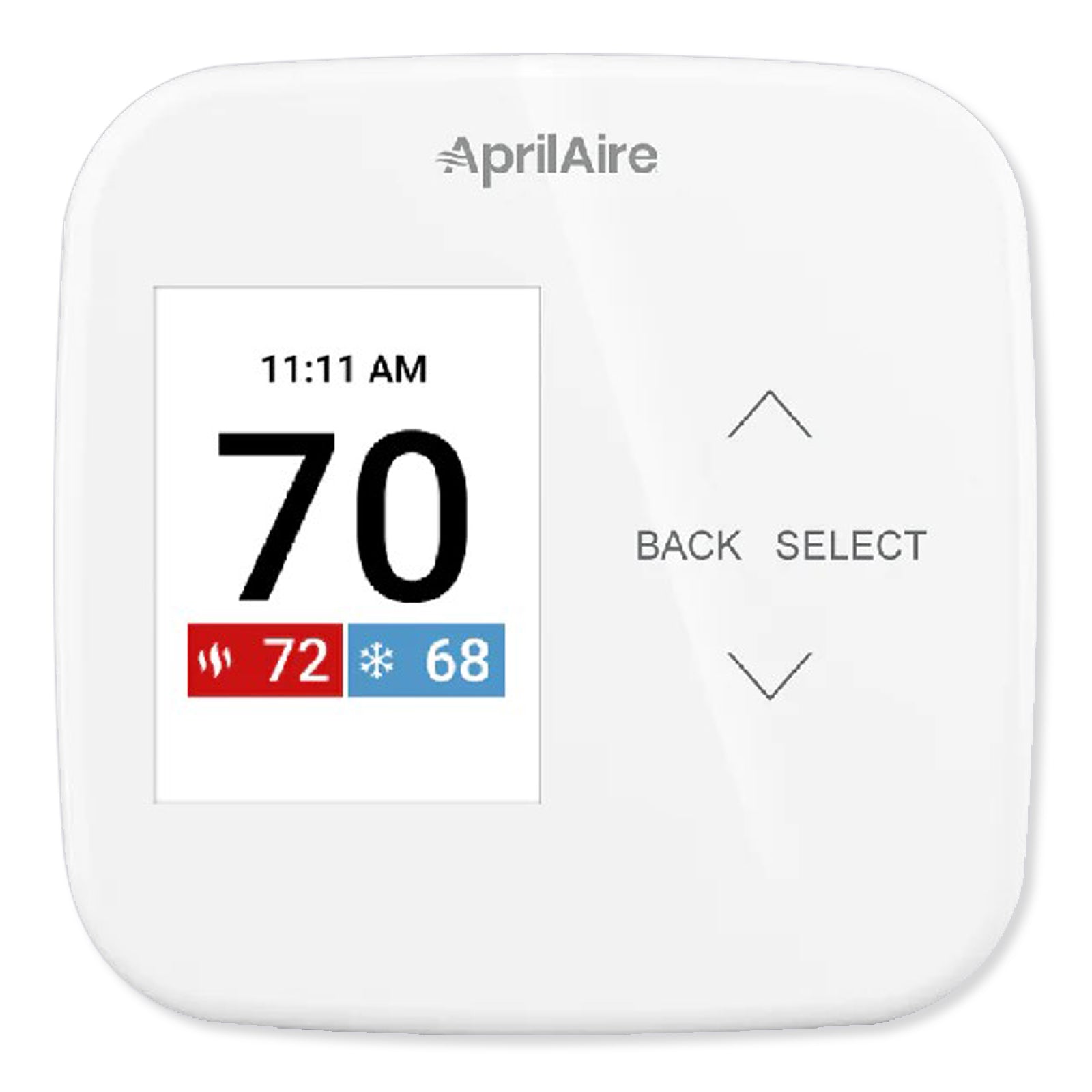

The AprilAire Programmable Wi-Fi Multi-Stage Universal Thermostat is designed with a colorful 2.4" display that shows the indoor temperature and humidity. It works with 2H/2C or 4H/2C HVAC or heat pump systems and it features Event-Based Air Cleaning to automatically ventilate and keep the air fresh, along with HeatBlast technology for rapid heating in just a few minutes.

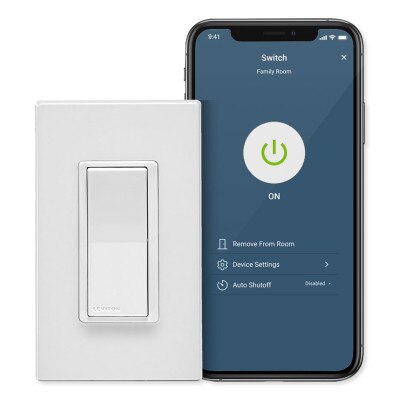

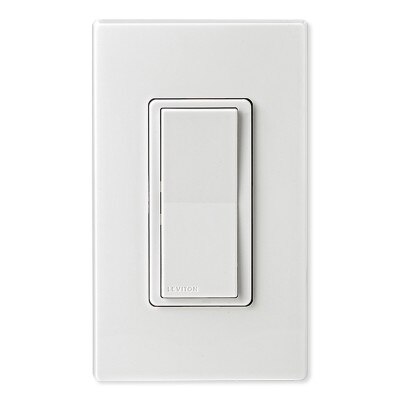

The Leviton Decora Smart Wi-Fi Switch allows local and remote On/Off control of LEDs and CFLs, as well as incandescent and fluorescent lights. It's designed with an LED indicator light for current and target light levels, and it can be programmed to control individual or grouped lights to turn on or off as part of automation scenes or at scheduled times.

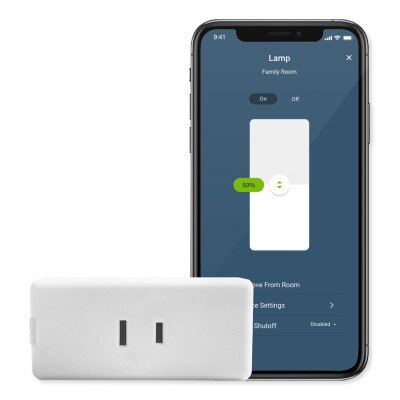

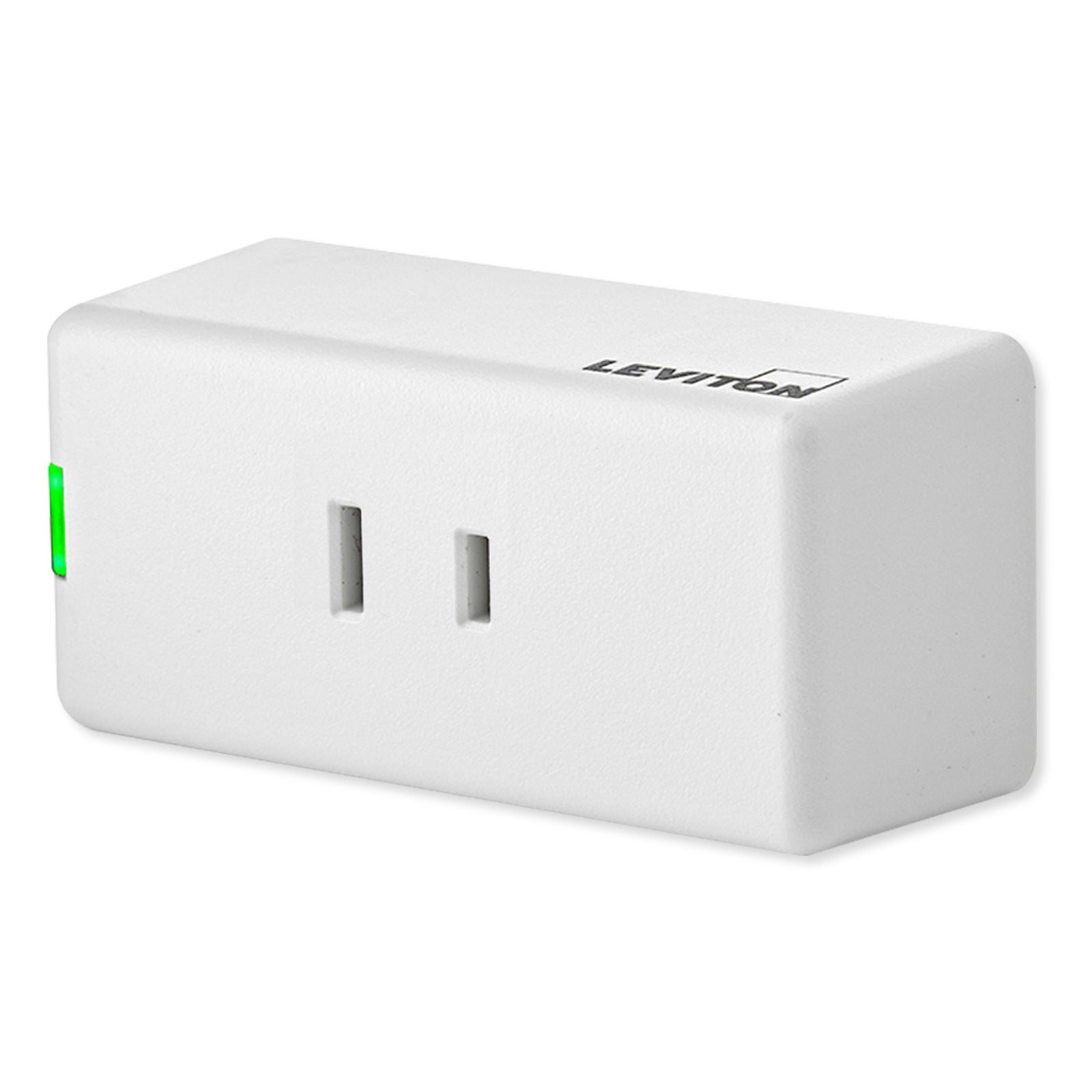

The Leviton Decora Smart Wi-Fi Mini Plug-In Dimmer can be used to command plug-in devices such as lights and appliances to turn on or off and it remembers the status of plug-in devices in the event of minor power fluctuations. It also comes in a unique design to prevent it from blocking adjacent outlets.

Home Automation Scenes Make Living At Home Easier and Better

This smart home Wi-Fi kit includes a great assortment of smart home devices that can be included in multiple home automation scenes. For example: Create an "Weekday Morning" scene where your Linxura Smart Controller triggers your other smart Wi-Fi devices when you wake up in the morning to help you get ready for the day:

  1. Your nightstand light, plugged into the Leviton Decora Wi-Fi Plug-in Dimmer, automatically turns on to help you wake up.
  2. The Leviton Decora Smart Wi-Fi Switch turns on your kitchen lights so you can head straight for your coffee maker or refrigerator.
  3. You'll notice your home becoming cooler as the AprilAire Programmable Wi-Fi Thermostat activates the air conditioner.

If you have a voice assistant such as Amazon Alexa, Google Assistant or Apple Siri, you can ask your voice assistant to activate other compatible Wi-Fi devices as you leisurely walk from room to room in your home.

For a more in-depth view of the included smart Wi-Fi devices please visit:

Contents

  • Linxura Smart Controller, Wi-Fi Remote Controller
  • AprilAire S86WMUPR Programmable Wi-Fi Multi-Stage Universal Thermostat with IAQ Control
  • Leviton Decora Smart Wi-Fi Switch, 15A (2nd Gen)
  • Leviton Decora Smart Wi-Fi Mini Plug-In Dimmer (2nd Gen)

Additional Product Notes

  • All devices require a stable connection to a Wi-Fi Network.

Linxura Smart Controller, Wi-Fi Remote Controller

  • Bluetooth compatible devices must be within Bluetooth proximity range in order to control.

AprilAire S86WMUPR Programmable Wi-Fi Multi-Stage Universal Thermostat with IAQ Control

  • Only one (1) air quality ancillary system (humidifier, dehumidifier, whole home ventilation) can be controlled per thermostat.

Leviton Decora Smart Wi-Fi Switch, 15A (2nd Gen)

  • Wireless operation requires a 2.4GHz Wi-Fi network and the free My Leviton app.
  • MyLeviton app requires an iOS (12.0 or later) or Android (8.0 or later) mobile device.
  • Requires a neutral wire connection.
  • Wallplates sold separately.

Leviton Decora Smart Wi-Fi Mini Plug-In Dimmer (2nd Gen)

  • Wireless operation requires the free My Leviton app.
  • For indoor use only.

Automation Products & Support Since 1989

Home Controls is the premier national distributor for the most comprehensive and unique home automation systems since 1989! Whether you are a professional installer or a do-it-yourself homeowner, our online store carries the supplies you need including: whole home automation, smart home systems, remote lighting and appliance controls, home security and video surveillance, home theatre, audio and video distribution, networking, telephones and intercoms, climate controls, central vacuums, structured wiring systems, installation tools and accessories, independent living devices, and so much more.

Specifications

Linxura Smart Controller, Wi-Fi Remote Controller (Snow Pearl)

  • Manufacturer Part #: SCHA-1-SP
  • UPC: 860010190104
  • Wireless Protocol: Wi-Fi – 2.4GHz
  • Power Supply: 5V/1A
  • Battery: 3.7V/760mAh
  • Dimensions: 7 in. Dia x 7 in. H
  • Warranty: 1-Year Limited

AprilAire S86WMUPR Programmable Wi-Fi Multi-Stage Universal Thermostat with IAQ Control

  • Manufacturer Part #: S86WMUPR
  • UPC: 686720007699
  • Color Graphical Display: 2.4-inch
  • Power: 24V (C-Wire required)
  • Heat/Cool Stages: 2H/2C
  • Heat Pump Stages: 4H/2C
  • Navigation/Set-Up: Real Language
  • Controls & Display Main Menu:
    • Set Schedule Button
    • Clean Screen
    • Set Vacation
    • Set Current Time and Date
    • Done Button (Exit Menu)
    • User System Settings
  • Environment:
    • Operating Temperature: 32° to 120°F (0° to 48.9°C)
    • Operating Humidity: 5% to 90% Relative Humidity
  • Electrical:
    • Operating Voltage – 24VAC (18-30VAC)
    • Current – Maximum: 2.5A (total), 1.0A (single output)
    • Max Surge Current: 5A
  • Thermal Measurements:
    • Display Range Room Temperature: 32° to 99°F (0° to 40°C)
    • Outdoor Temperature: -40° to 130°F (-40° to 55°C)
    • Setpoint Temperature Ranges:
      • Heat: 40° to 90°F (4° to 32°C)
      • Cooling: 50° to 99°F (10° to 37°C)
    • Setpoint Humidity Ranges:
      • Humidification: 10% to 50% R.H.
      • Dehumidification: 40$ to 90% R.H.
  • Dimensions: 4.38 L x 4.38 W x 0.80 D
  • Approvals: FCC
  • Warranty: 5-Year Limited

Leviton Decora Smart Wi-Fi Switch, 15A (2nd Gen)

  • Manufacturer Part #: D215S-1BW
  • UPC: 078477523018
  • Network:
    • Wi-Fi – 802.11 a/b/g/n @ 2.4GHz
    • Security – WPA, WPA2, WPA3, or open
    • Bluetooth – v5.0
  • Ratings:
    • LED/CFL 5A – 600W
    • Incandescent/Halogen – 1500W
    • Resistive – 15A
    • Fluorescent – 15A, 1500W
    • Inductive – 1500VA
    • Motor – 3/4 HP
  • Operating Temperature: 32 to 104°F (0 to 40°C)
  • Operating Humidity: 0 to 90% non-condensing
  • Certifications:
    • Complies with UL 917, CSA C22.2 No. 177-13
    • CSA Listed for USA and Canada
    • NOM Certified
    • Wi-Fi CERTIFIED™
    • Complies with FCC Part 15, Class B
  • Warranty: 2-Year Limited

Leviton Decora Smart Wi-Fi Mini Plug-In Dimmer (2nd Gen)

  • Manufacturer Part #: D23LP-1BW
  • UPC: 078477523032
  • Network:
    • Wi-Fi – 802.11 a/b/g/n @ 2.4GHz
    • Security – WPA, WPA2, WPA3, or open
    • Bluetooth – v5.0
  • Ratings:
    • General Use – 120VAC, 50/60Hz
    • LED/CFL – 100W
    • Incandescent – 300W
  • Operating Temperature: 32 to 104°F (0 to 40°C)
  • Operating Humidity: 0 to 90% non-condensing
  • Certifications:
    • Complies with UL 917, CSA C22.2 No. 177-13
    • CSA Listed for USA and Canada
    • NOM Certified
    • Wi-Fi CERTIFIED™
    • Complies with FCC Part 15, Class B
  • Warranty: 2-Year Limited

Downloads

»Linxura SCHA-1 Smart Wi-Fi and Bluetooth Controller Brochure (.pdf)
»Linxura, WeMo, Flic and Brilliant Comparison Chart (.pdf)
»AprilAire S86W MUPR Wi-Fi Thermostat Quick Start Guide (.pdf)
»AprilAire S86W MUPR Wi-Fi Thermostat with IAQ Installation Manual (.pdf)
»AprilAire S86W MUPR Wi-Fi Thermostat Installation Manual (.pdf)
»AprilAire S86W MUPR Wi-Fi Thermostat with IAQ User Manual (.pdf)
»Leviton Decora Smart Wi-Fi Lighting Controls Brochure (.pdf)
»Leviton D215S Decora Smart Wi-Fi 15A Switch (2nd Gen) Spec Sheet (.pdf)
»Leviton D215S Decora Smart Wi-Fi Switch (2nd Gen) Installation Manual (.pdf)
»Leviton D23LP Decora Smart Wi-Fi Mini Plug-In Dimmer (2nd Gen) Spec Sheet (.pdf)
»Leviton D23LP Decora Smart Wi-Fi Mini Plug-In Dimmer (2nd Gen) Installation Manual (.pdf)
