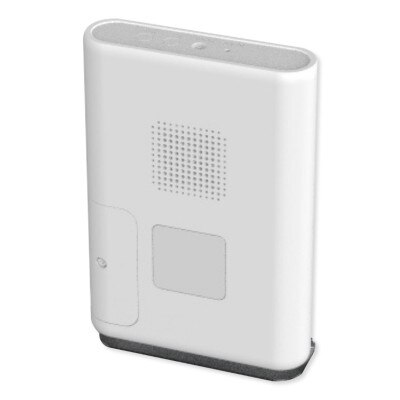

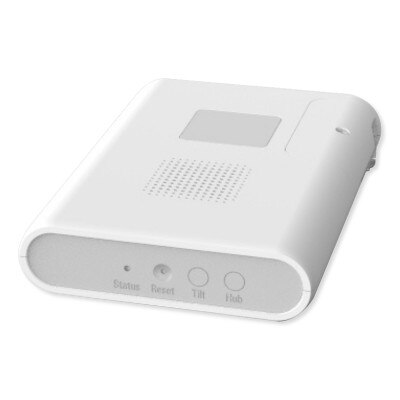

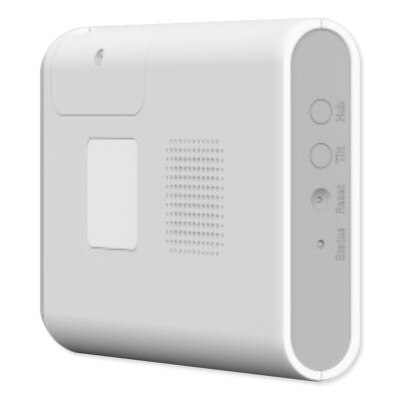

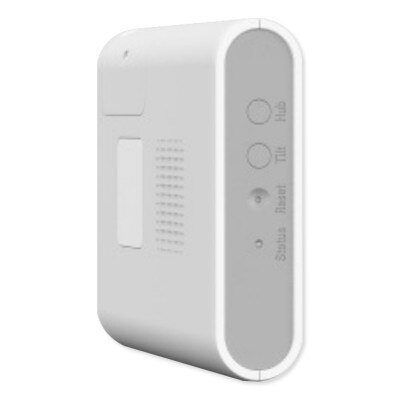

Ecolink Z-Wave Plus Garage Door Controller

Garage Door Remote Access With Z-Wave Control

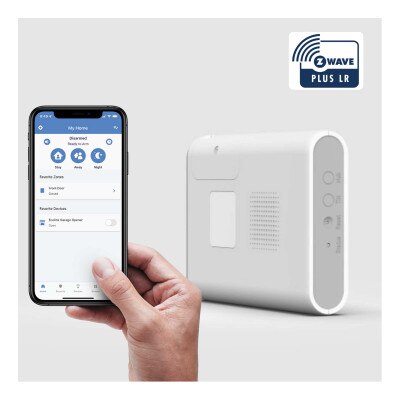

Add Z-Wave control and remote access to your garage door with the Ecolink Z-Wave Garage Door Controller. Compatible with most legacy garage door openers, this unique controller can easily be integrated into any Z-Wave network because it works with Z-Wave, Z-Wave Plus 500, Z-Wave Plus 700, and Z-Wave Plus 800 series compatible home automation hubs or security controllers. With up to 2200 feet line-of-site communication with a paired Z-Wave hub/panel, this garage door controller will provide real time status of your garage door and allow you to open and close the door from a remote location using your Z-Wave hub's app. The Ecolink Z-Wave Garage Door Controller also includes a tilt sensor that utilizes the 345 Mhz frequency to transmit the garage door's open/close state to your hub/panel. For added security, it can ignore control commands to the garage door if it deems it's unsafe to execute the command.

• Garage door sensor adds Z-Wave functionality and remote access to a garage door
• Works with Z-Wave 300, 500, 700 and 800 series controllers and hubs
• Up to 2200 feet line-of-site between the controller and Z-Wave hub
• Comes with 345Mhz Clearsky® protocol tilt sensor
• Audible and flashing light warnings prior to open/close door operation
• Simple to install and connect with Z-Wave or SmartStart (via QR-Code)

Installation Details

The Ecolink Z-Wave Garage Door Controller can easily be mounted onto the existing L bracket and be connected directly to the garage door operator, which enables communication with the Z-Wave hub or security panel. Mount the included door sensor to the garage door, or if you prefer, you can use a hard-wired reed switch to monitor the state of the garage door. For controlling the garage door opener, you'll need to wirelessly pair the Z-Wave Garage Door Controller to the garage door opener or use a hard-wired connection to the garage door opener's button terminal. Pair the Z-Wave Garage Door Controller to your Z-Wave enabled hub or security panel; then test if it can open or close the garage door via the "test" mode and whether or not it can be controlled via your Z-Wave network.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless range up to 1300 ft/400 m indoors, three layers of encryption, faster operation, and up to 10 year battery life.

Contents

• Garage Door Controller
• Tilt Sensor
• AC/DC Power Adapter
• Mounting Hardware
• Manual

Notes

• Requires a compatible Z-Wave hub or Z-Wave security controller or hub.
• For indoor use only.

Ecolink

Every Ecolink product originates as an insight – an idea generated by something that people want or something they want to do better. At Ecolink, it's not about the things they make, it's about the things they make possible. Ecolink was born from a pedigree of great distinction within the electronics industry. With countless years of design/development experience and numerous innovative and game-changing products, the Ecolink team designs and manufactures products to the highest standards of performance and quality.

• Manufacturer Part #: GDZW7-ECO
• UPC: 851166005343
• Frequency: 908.42 MHz, 345MHz
• Z-Wave LR Transmission Distance: Up to 2200 FT line of sight
• Z-Wave Operating Frequencies: 908.42MHz, 916MHz, Z-Wave Long Range (912MHz, 920MHz)
• Wireless Garage Door Operating Frequencies: 310MHz, 915MHz, and 390MHz
• Certification: UL-325
• Specifications: Power: 120VAC, 50/60 Hz
• Garage Door Position Sensor Frequency: 345 MHz, Z-Wave Frequency: 908.42 MHz
• UL Certified Pre-Installed Bellwire to 2nd External Contact: 22AWG, 2 Conductor, Solid Copper Security Cable, White, L = 1.5m
• Dimensions: 5 L x 3.75 W X 1 D inches (127 L x 95.25 W x 25.4 D mm)
• Power: Line powered 120 VAC 60 Hz, 0.08A Maximum US
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Other Features:
• Temperature Sensing
• External contact for installer to opt-in using magnetic contact instead of using tilt sensor for determination of the garage door's state
• Accelerometer
• Z-Wave S2 Encryption
• Regulatory and Certification:
• UL-325 Specification Design
• UL certified pre-installed bellwire to 2nd external contact:
• 22AWG, 2 Conductor, Solid Copper Security Cable, White, L = 1.5m
• Warranty: 12 Months
