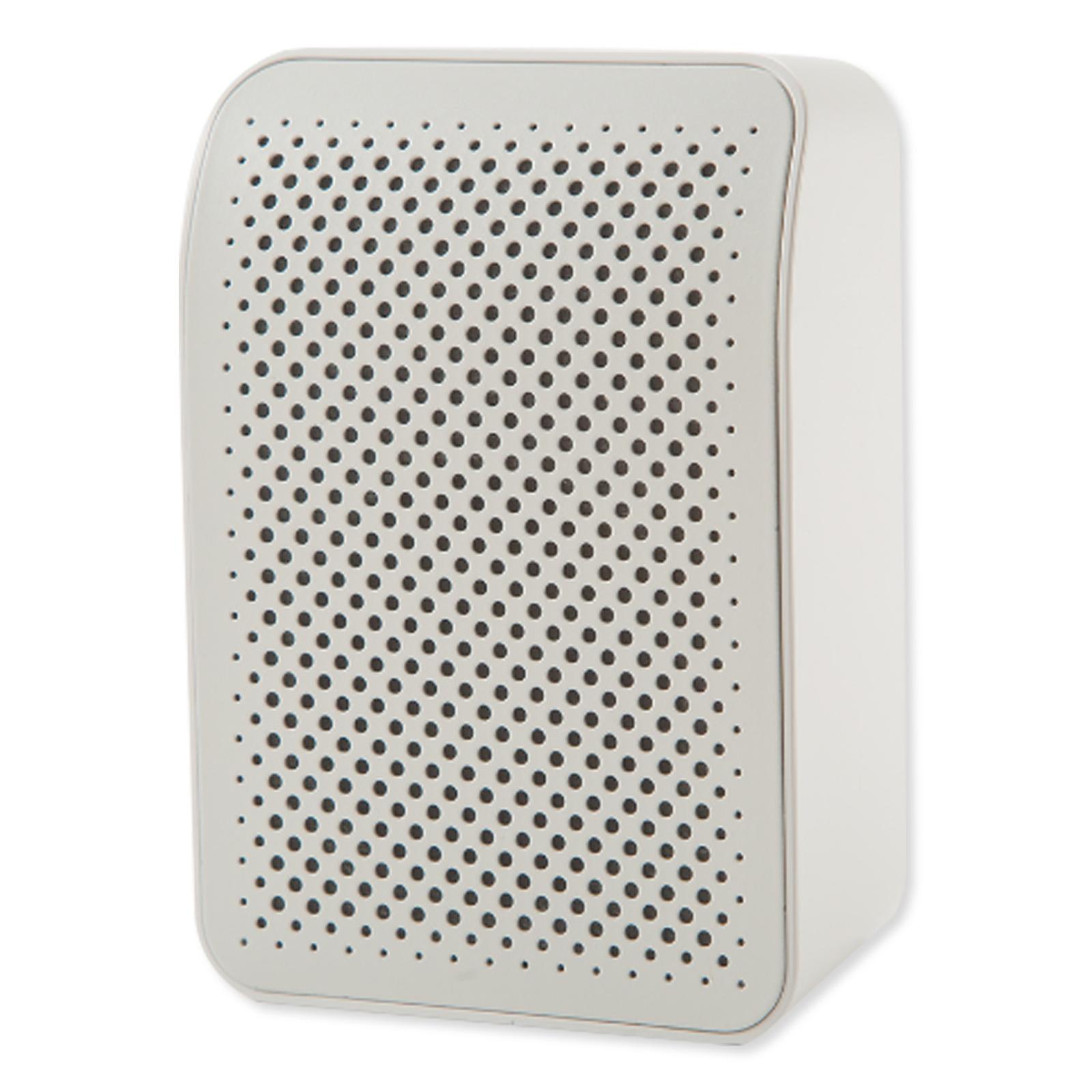

Ecolink Z-Wave Plus v2 Siren/Notification Device, Gen7

Listen and Know When a Problem Occurs in Your Z-Wave Network

The Ecolink Z-Wave Plus Siren/Notification Device, Gen5 will alert you with an audible sound whenever it detects a problem using Z-Wave technology. This device is powerfully loud at 105db and features 30 built-in sound options, S2 Security Encryption, a learn-in button, dual-LED indicator lights (green and red), volume control, and a 24-hour battery backup. It will even allow you to use customized sounds by using a Micro-SD card for unique audible alarms.

• Provides an audible alert when a problem occurs
• Extreme security with S2 Security Encryption
• Up to 30 built-in sound options are available
• Customize audible alerts with a MicroSD card (not included)
• Plugs into a power outlet, no wiring required
• Green and Red LED indicators
• Includes self-charging backup battery

Adding to a Z-Wave Network via SmartStart

To add via SmartStart, you will need the device's DSK QR-Code which is located on the backside of the device, on the packaging, and on a leaflet within the packaging. Apply power to the device by inserting the device into a wall receptacle, and the device will go into SmartStart inclusion mode. While in this mode, the sensor can be added to a Z-Wave controller that supports SmartStart.

Adding to a Z-Wave Network (Classic Inclusion Method)

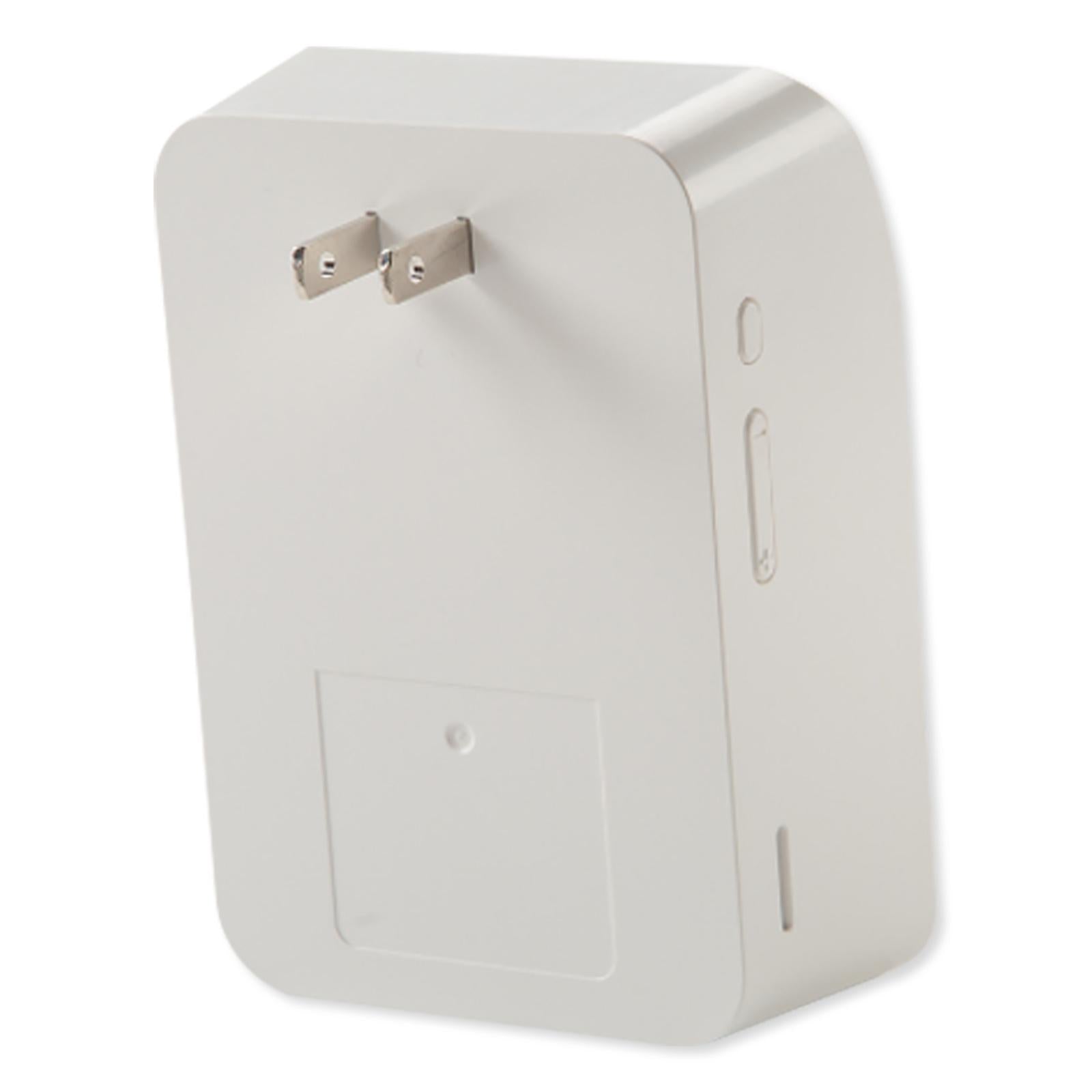

Just plug the Ecolink Z-Wave Plus Siren/Notification Device, Gen5 into a wall receptacle and press the Add+Test button (the smaller of the 2 buttons). The device will enter classic inclusion mode, which implements both classic inclusion with a Node Information Frame, and Network Wide Inclusion. During Classic Inclusion mode, the Green LED will blink three times every three seconds. When Classic inclusion times-out, the device will blink red and green.

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Siren/Notification Device
• Installation Guide
• Accessory Pack

NOTE: The sensor must be added to a Z-Wave network prior to use. To include the sensor in a Z-Wave network, both the sensor and the network controller must be in inclusion mode at the same time.

Ecolink – Intelligent Security and Home Automation

Every Ecolink product originates as an insight – an idea generated by something that people want or something they want to do better. At Ecolink, it's not about the things they make, it's about the things they make possible. Ecolink was born from a pedigree of great distinction within the electronics industry. With countless years of design/development experience and numerous innovative and game-changing products, the Ecolink team designs and manufactures products to the highest standards of performance and quality.

• Manufacturer Part #: ISZW7-ECO
• UPC: 851166005343
• Color: White
• Operating Frequency: 908.42, 916 MHz
• Operating Range: Up to 100 feet (line of sight)
• Operating Temperature: 32° to 120° F (0° to 49° C)
• Line Powered: 120v AC 60Hz US
• Battery Backup: 24 Hours
• Compliant: UL/ETL
• Warranty: 1 Year

»Ecolink ISZW7-ECO Z-Wave Plus v2 Chime + Siren Installation Manual (.pdf)
