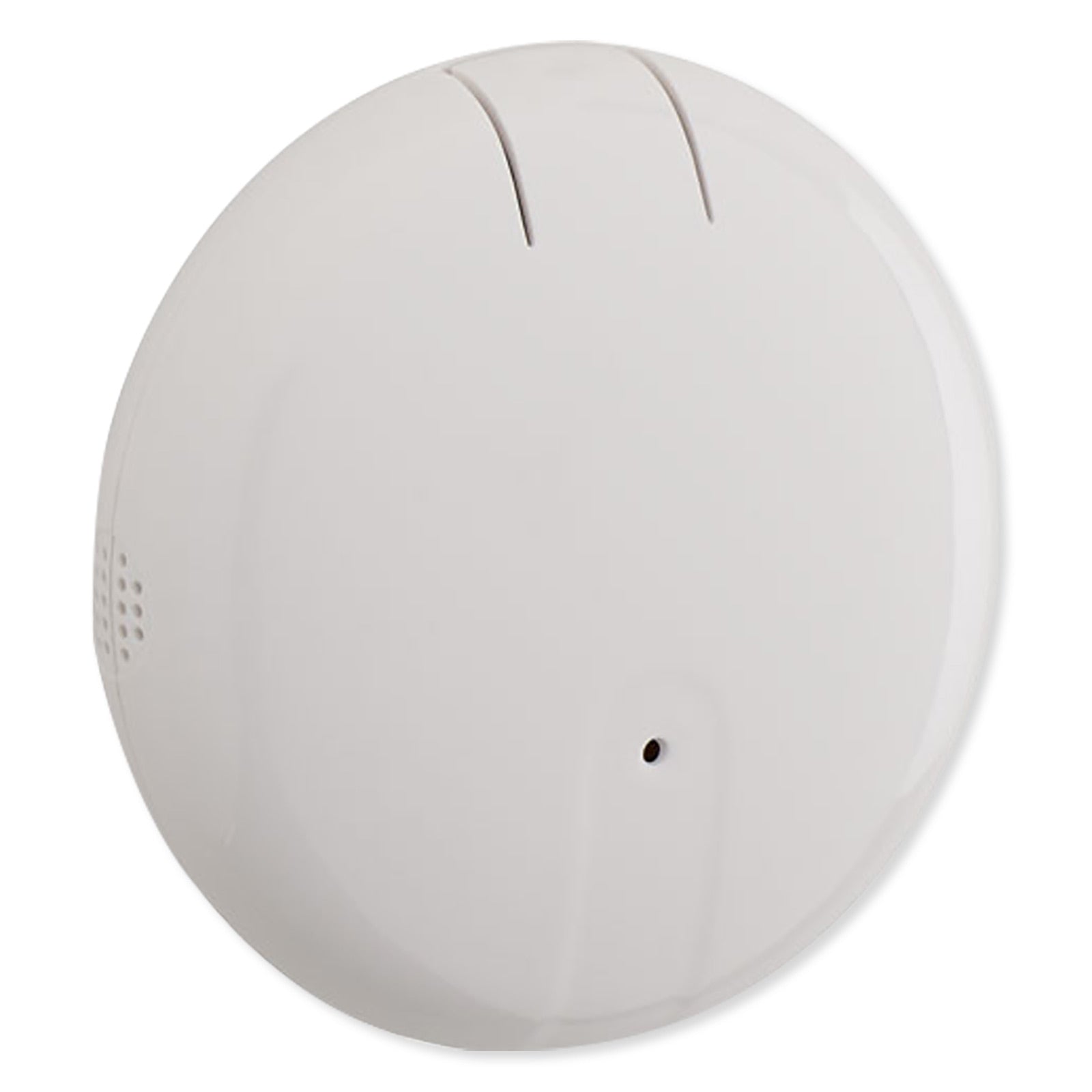

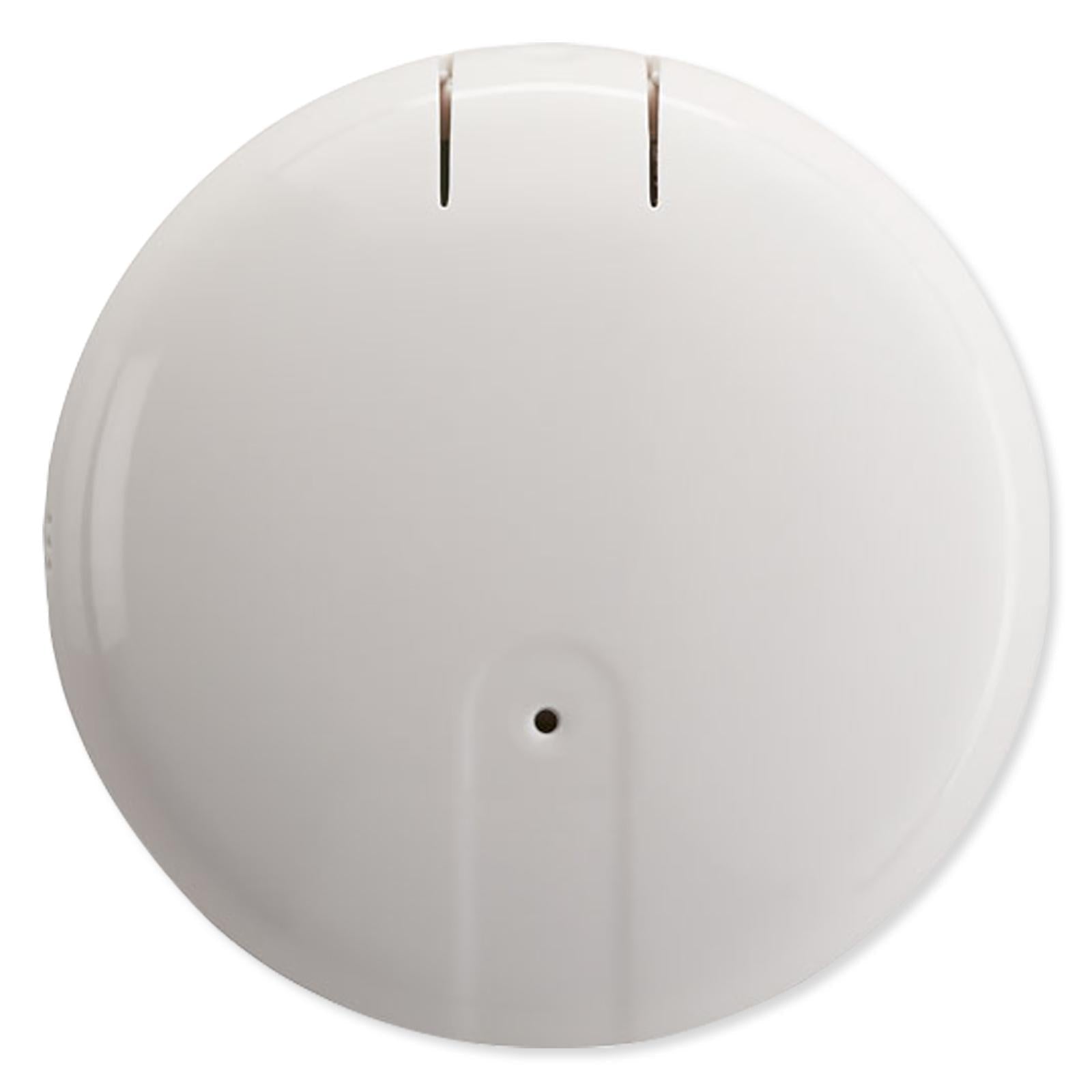

Ecolink Z-Wave Plus FireFighter Smoke/CO Audio Sensor, Gen5

Know When Your Smoke/CO Detector Sounds An Alarm Via Z-Wave

Receive notifications via Z-Wave technology when your traditional hardwired smoke detector and/or your carbon monoxide detector sound an alarm by installing the Ecolink Z-Wave Plus FireFighter Smoke/CO Audio Sensor, Gen5. This battery-powered sensor mounts up to 6 inches away from a UL-listed smoke alarm or carbon monoxide detector. It senses when an audible alarm sounds using its built-in microphone, and then transmits a wireless alarm signal to your Z-Wave network.

• Converts a hardwired smoke or carbon monoxide detector to work with wireless alarm panels
• Transmits status of Fire and Co alarms
• Battery-powered up to 5 years (depending on usage)
• Mounts up to 6 inches away from smoke/CO detector
• Detects Temporal 3 pattern or UL detectors, and detects 4 patterns of CO detectors

Installation Details

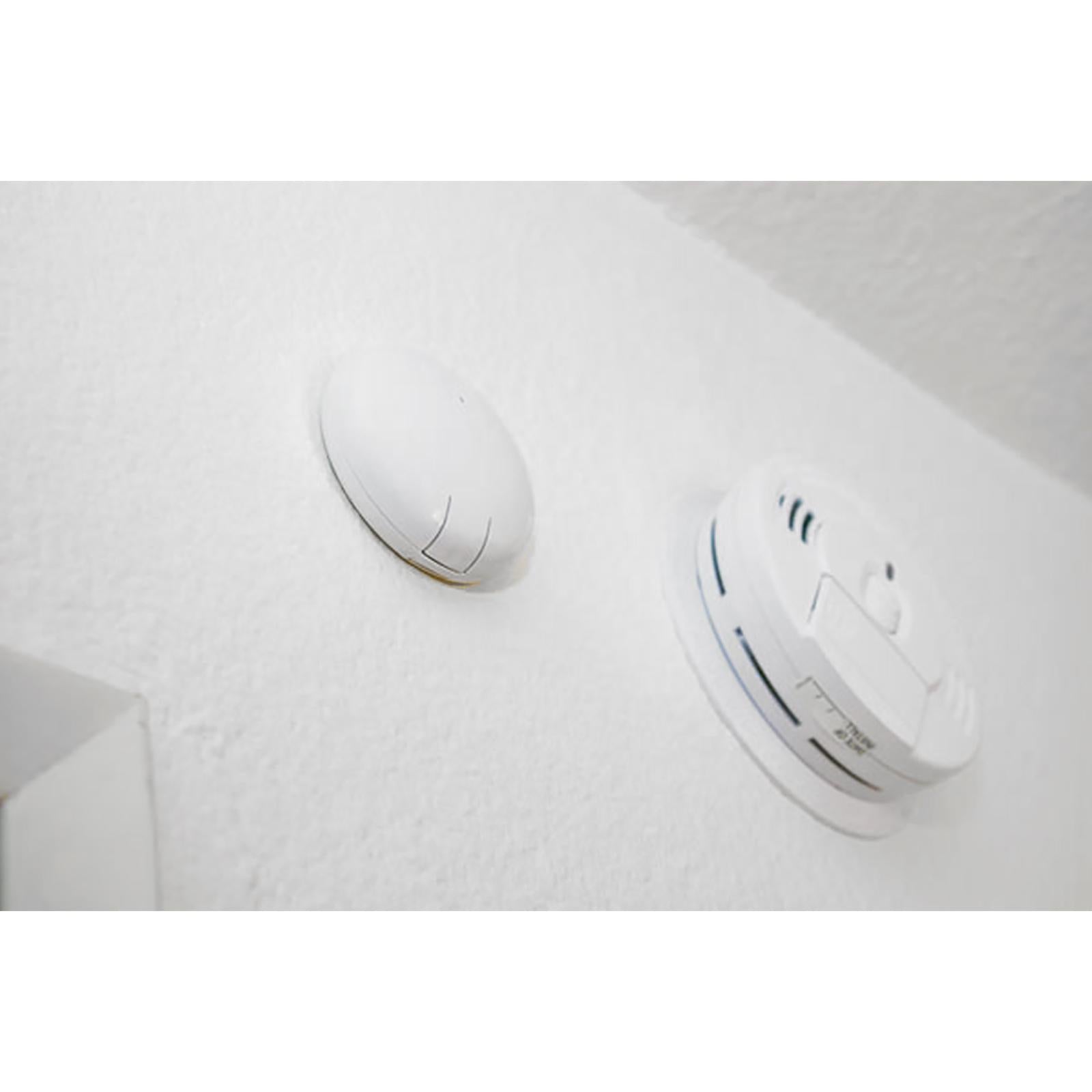

The FireFighter Sensor-Transmitter easily mounts to the wall or ceiling with the included hardware. It can be placed up to 6 inches away from the smoke/carbon monoxide detector as long as its small microphone holes are facing the detector.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• FireFighter Smoke/Co Audio Sensor
• CR123A Battery
• Installation Guide
• Accessory Pack

NOTE: The sensor must be added to a Z-Wave network prior to use. To include the sensor in a Z-Wave network, both the sensor and the network controller must be in inclusion mode at the same time.

Ecolink – Intelligent Security and Home Automation

Every Ecolink product originates as an insight – an idea generated by something that people want or something they want to do better. At Ecolink, it's not about the things they make, it's about the things they make possible. Ecolink was born from a pedigree of great distinction within the electronics industry. With countless years of design/development experience and numerous innovative and game-changing products, the Ecolink team designs and manufactures products to the highest standards of performance and quality.

• Manufacturer Part #: FF-ZWAVE5-ECO
• UPC: 851166005077
• Color: White
• Operating Frequency: 908.42 MHz
• Detection Distance: 6 inches max
• Operating Temperature: 32° to 120° F (0° to 49° C)
• Operating Humidity: 5-95% non-condensing
• Battery: 3V Lithium CR123A (included)
• Battery Life: 5, depending on use
• Dimensions: 3-1/8" diameter x 1.0" tall (79 x 25mm)
• Warranty: 3 Years
• Approvals: FCC

»Ecolink FF-ZWAVE5-ECO Z-Wave Plus FireFighter Audio Detector Installation Manual (.pdf)
