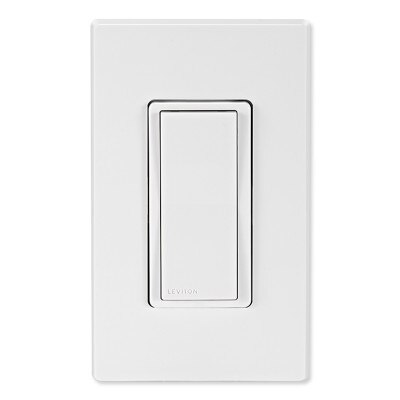

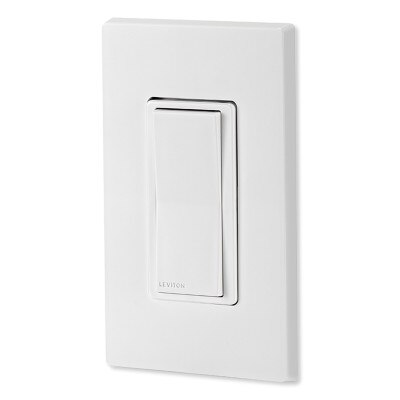

Leviton Decora Smart Z-Wave Plus v3 Smart Switch, 800 Series

Adds Z-Wave Functionality & Local Lighting Control

Enhance your indoor lighting control all while adding advanced Z-Wave functionality to your home with the Leviton Decora Smart Z-Wave 800 Series Smart Switch. This intelligent smart switch uses Z-Wave technology to effortlessly command LED, CFL, incandescent, and halogen lights, enabling convenient On/Off control remotely as well as locally for wired lights, ceiling fans, exhaust fans, motors, pumps, and other appliances. As part of the Z-Wave 800 series, it uses cutting-edge features such as a faster processor for swift transmissions and improved energy efficiency during the control of the device and communication with Z-Wave hubs. Whether for single or multi-way wired setups, it can seamlessly integrate with an add-on switch, allowing it to be used in various wiring configurations from single pole to 3-way. Plus, you can easily integrate into your Z-Wave network at home for smart automation groups or scenes.

• Z-Wave On/Off switch works with LED, CFL, incandescent, and halogen lights plus small appliances and devices
• Supports loads up to 15A and 3/4 HP for control of lights, ceiling fans, exhaust fans, motors, pumps, and more
• Suitable for single pole or 3-way applications with add-on Leviton DD0SR switch (sold separately)
• Can be included in multiple Z-Wave automated groups or networks through a Z-Wave compatible hub
• Works as a repeater to strengthen your Z-Wave Mesh network
• Z-Wave 800 software provide increased power, longer range, faster transmissions, and improved security
• Supports S2 Security and Z-Wave Over-the-Air updates

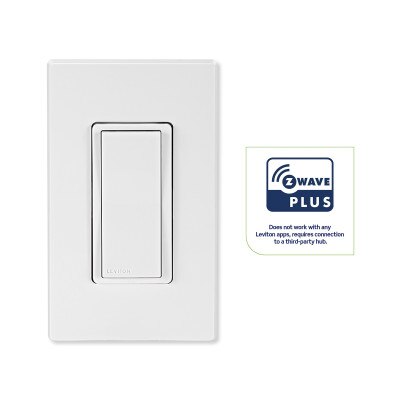

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 1300ft/400m (or 7900 ft/2400m point-to-point range with Z-Wave LR), three layers of encryption, faster operation, and longer battery life.

Contents

• Leviton Decora Smart Z-Wave 800 Series Smart Switch
• Manual

Notes

• Does not work with any Leviton apps and requires connection to a third-party hub.
• Supports SmartStart enrollment when used with a Z-Wave controller that supports SmartStart inclusion.
• Requires a compatible Z-Wave hub and neutral wire.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From dimmers and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

• Manufacturer Part #: ZW15S-R02-1RW
• UPC: 078477398463
• Z-Wave Plus Network: 908.40, 908.42, 916.00 MHz
• Z-Wave Range: 50 feet to the hub or another Z-Wave enabled repeater
• Power Ratings:
• General Use: 15A, 120VAC, 60Hz
• LED/CFL/Electronic Ballast: 5A
• Incandescent/Halogen: 1500W
• Magnetic Ballast: 15A
• Motor: 3/4 HP
• Operating Temperature: 0° to 40° C (32° – 104° F)
• Operating Humidity: 10% to 90% non-condensing
• Agency Standards and Compliance:
• Complies with UL917; CSA C22.2 No. 177-13
• CSA Certified for USA and Canada
• NOM Certified
• Z-Wave Plus v2 Certified
• Complies with FCC Part 15, Class B
• FCC ID: QGH-ZW15S
• IC: 2473A-ZW15S
• Warranty: 2-Year Limited

»Leviton ZW15S Decora Smart Z-Wave 800 Series 15A Switch Spec Sheet (.pdf)
»Leviton ZW15S Decora Smart Z-Wave 800 Series Switch Installation Manual (.pdf)
