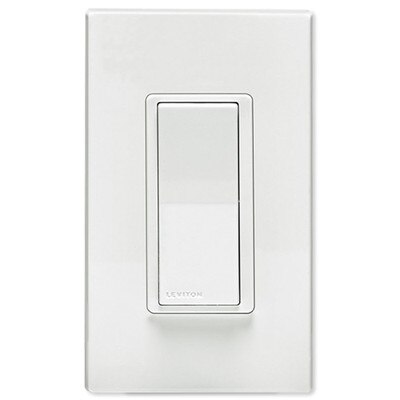

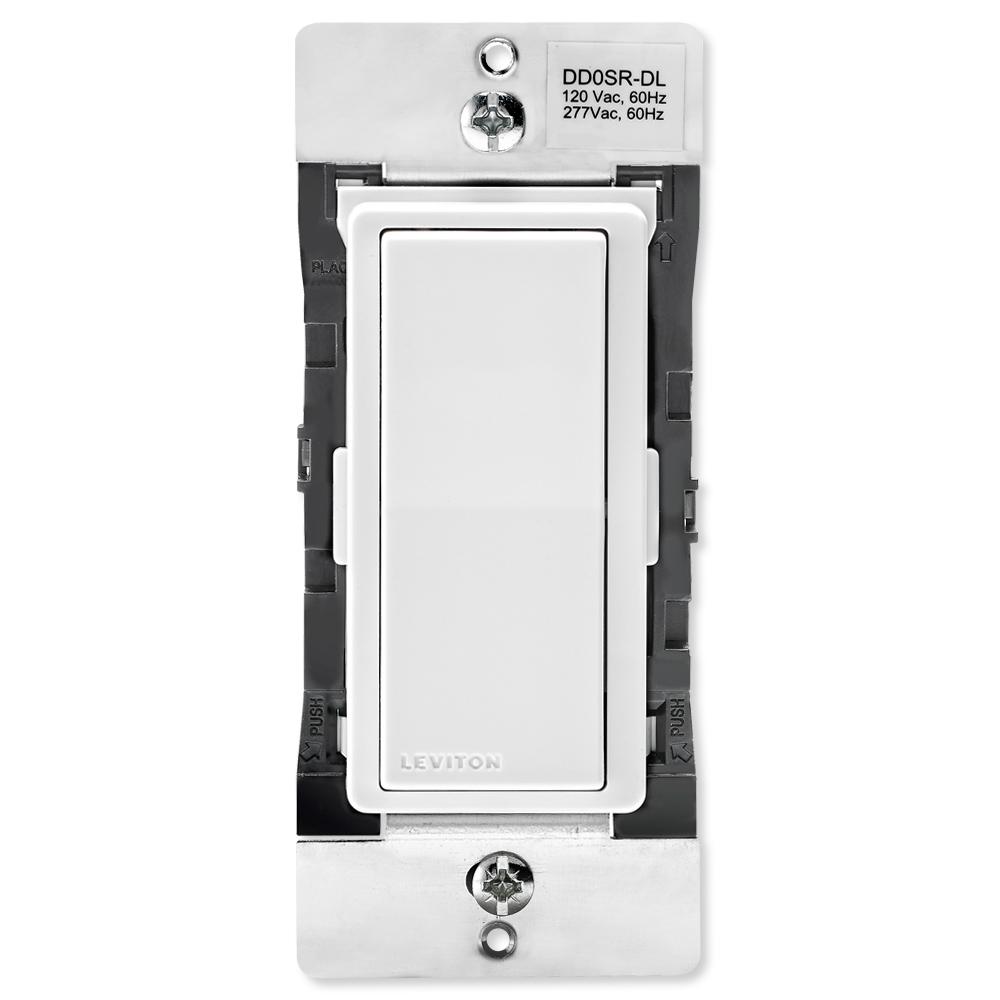

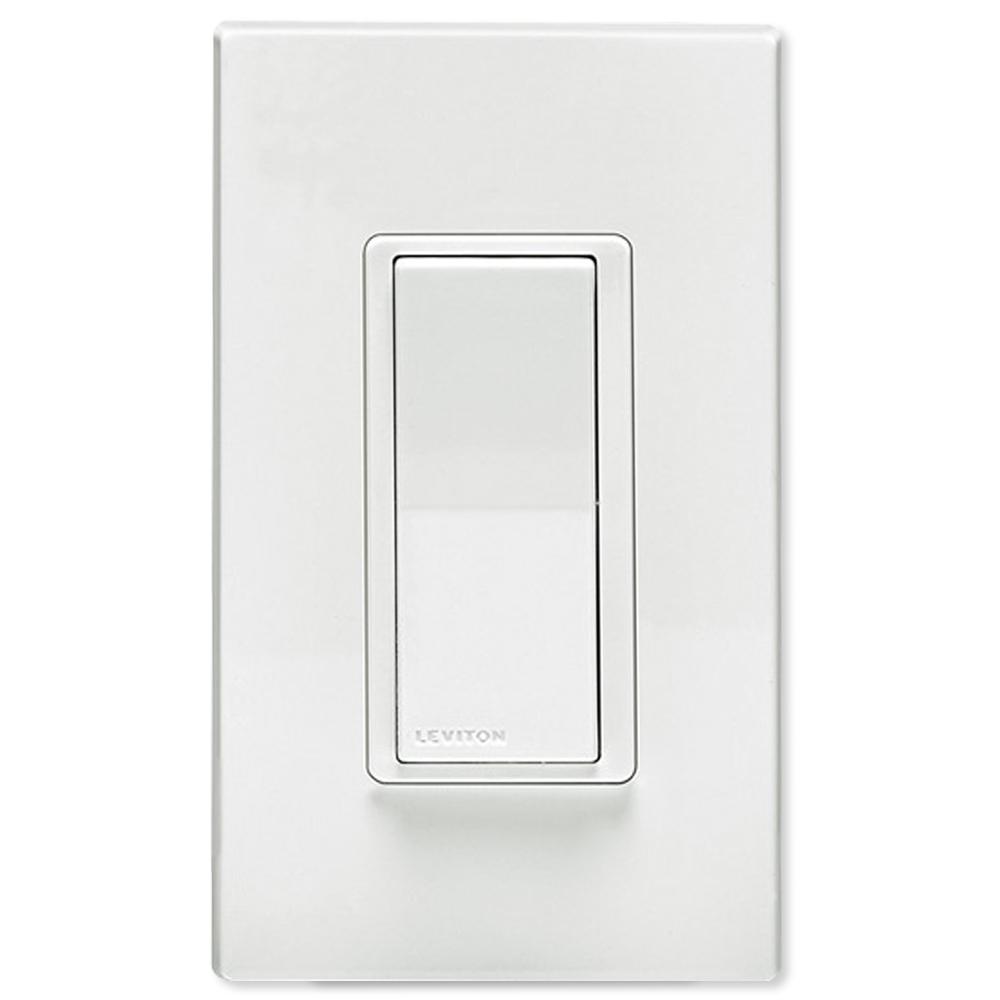

Leviton Decora Digital/Decora Smart Dual Voltage Matching Switch Remote

On/Off Auxiliary Switch for Decora Digital Switches

Create a multi-way On/Off switch for a light or appliance by combining a Leviton Decora Digital or Decora Smart Switch, such as the DDS15 (sold separately), with this Leviton Decora Digital/Decora Smart Dual Voltage Matching Switch Remote. The smooth, Decora-style rocker switch features a push pad for On/Off control. Digital circuitry provides soft fade on/fade off. Up to four of these "matching" remotes can be used with one main switch.

• For use with Leviton's Decora Digital or Decora Smart Switches
• Enables multi-way On/Off control up to 4 additional locations
• LED locator indicates load's On/Off status
• Decora style for compatibility with Decora wallplates
• Can replace a standard wall switch (neutral required)
• Dual voltage for 120VAC and 277VAC applications

White faceplate installed. Light Almond and Ivory color change kits included.

The "matching" remote switch features an LED locator to help guide you in the dark (illuminates when load is turned Off). If you're using 120VAC and you prefer not to have an LED locator OR you want to connect more than four remote switches to your main switch, opt for the Leviton Decora Digital/Decora Smart Coordinating Switch Remote (DD0SR-1Z). It provides the same functionality without an LED, and allows up to nine remote switches instead of only four.

Contents

• Switch Remote
• White Faceplate
• Ivory Faceplate
• Light Almond Faceplate

Notes

• Does not operate independently. Requires connection to a compatible Leviton Decora Digital or Decora Smart Switch, sold separately.
• Neutral wire required.
• Wallplate sold separately. Compatible with Decora wallplates.
• This model is not Bluetooth-enabled.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

• Manufacturer Part #: DD0SR-DLZ
• Action: Rocker Switch for ON/OFF
• Color: White, Ivory, Light Almond
• Color Change Kit: DDKIT-S (not included)
• LED Color: Green
• Light: LED Locator
• Style Name: Decora
• Switch Type: 3-Way or Up to 4 Location Applications
• Type: Digital
• Voltage: 120/277VAC, 60Hz
• Wallplate: Order Separately
• Wiring Notes: Neutral required
• Standards and Certifications: CSA, NOM, FCC
• Warranty: 5-Year Limited
