Yale Z-Wave Plus Assure Interconnected Key-Free Touchscreen Lockset, Augusta Lever, Left Handed, 5.5" Prep

Eliminate Lockpicking While Ensuring Safe Access To and From Your Home

Find a long lasting and secure lock for your home or office door safe from lockpicking that offers quick and easy egress with the Yale Z-Wave Plus Assure Interconnected Key-Free Touchscreen Lockset, Augusta Lever, Left Handed, 5.5" Prep. This electronic interconnected leverset and deadbolt is specifically designed for swift and panic-proof exits through a single turn of the inside lever that retracts the deadbolt and latch simultaneously. Even when the deadbolt is locked, pushing down the indoor handle will unlock the deadbolt and allow you to open the door to leave. From the outside, this key-free Z-Wave Plus compatible lock can be operated by inputting a 4-8 digit code into the touchscreen keypad or from your smartphone using wireless Z-Wave control when connected to your Z-Wave network. As a no-cylinder "key-free" model, the deadbolt prevents lock picking or bumping, while offering smart locking features including one-touch tap locking and 30 second auto locking.

• Leverset and key-free deadbolt with backlit touchscreen keypad
• Indoor lever retracts latchbolt and deadbolt simultaneously for quick exit
• Lock/unlock deadbolt via 4-8 digit access code or Z-Wave command
• Includes 30 second auto-lock and one-touch tap locking features for swift security as you leave
• Share unique codes with friends and family, review lock status, and manage settings from a connected Z-Wave hub's app
• Weather-resistant keypad numbers won't wear off
• 5.5" center to center dimensions
• Easy to install, AA battery-powered with optional 9V backup battery
• ANSI/BHMA Grade 2 for strong, reliable security

The Yale Z-Wave Plus Assure Interconnected Lockset with Touchscreen Key Free Deadbolt comes with an optional Z-Wave Network Module (908.4 MHz U.S. frequency), allowing the lock to be added into your local Z-Wave network. The lock can seamlessly integrate with 50+ home automation and security systems including Ezlo, SmartThings, Alarm.com, Honeywell, and more. Once integrated into a smart Z-Wave network, the Z-Wave lock gains additional features*:

• Lock/unlock deadbolt remotely via Z-Wave
• Max. number of user codes increases from 25 to 250
• Create codes, view access history, and adjust settings via Z-Wave
• History log shows when family/friends come and go in real time
• Trigger other Z-Wave devices upon valid/invalid code entries
• Privacy mode locks out all users for enhanced security

*Features may vary based on the Z-Wave controller.

Installation Details

Designed for use with most standard interior or exterior doors, the leverset and deadbolt install on doors measuring 1-3/8 to 1-3/4 inches thick. This model is factory preset for left-handed use (hinges left). It may be reversed in the field by a professional. (For the right-handed model, alternatively purchase part YRC256ZW2AU5-xxx-RH, sold separately.) All the necessary hardware (latch, strike, screws, etc.) is included, along with a template for door preparation and detailed instructions.

• Installs on a standard door 1-3/8 to 1-3/4 inches thick
• Set for left-handed use by default (hinges left)
• Adjustable latch fits existing backset of either 2-3/8"
• 5.5" center to center dimension

The deadbolt is powered by four (4) AA batteries, which should power the deadbolt for about 18 months. A 9-volt battery (not included) may be used for backup power. The Z-Wave Network Module easily snaps in above the batteries. When the battery is low, or wrong codes are entered, or the lockset is tampered with, an alert is triggered. Programming is accomplished either at the lockset via the touchscreen keypad, or through your Z-Wave system controller.

Contents

• Z-Wave Assure Interconnected Key-Free Touchscreen Lockset (LH)
• Augusta Style Lever
• Strike Plate
• Deadbolt
• Latch
• Z-Wave Network Module
• (4) AA Batteries
• (2) Turnkeys
• Mounting Hardware
• Instruction Manual

NOTE: Optional network integration requires a Z-Wave controller. (If Apple HomeKit compatibility is desired instead of Z-Wave, alternatively purchase the Apple iM1 HomeKit Module, part number AYR202-iM1, sold separately.)

Yale – Secure Solutions for the Modern Home

Yale is among the most popular and respected names in the home security industry, with millions of Yale locks and entry systems used worldwide. Yale is the brand behind locks such as door locks, Padlocks and digital door locks as well as safes, door handles, alarms, and more. Secure your home with Yale products!

• Manufacturer Part #:

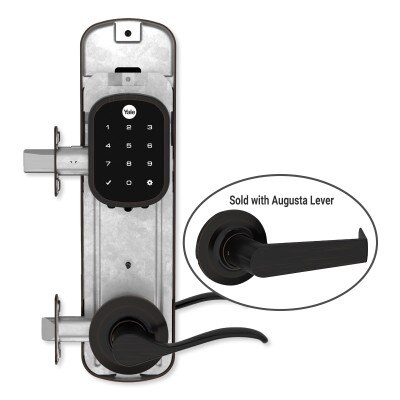

• YRC256-ZW2-AU-5-0BP-LH: Oil-Rubbed Bronze

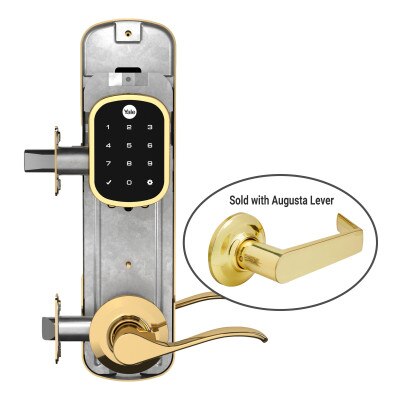

• YRC256-ZW2-AU-5-605-LH: Polished Brass

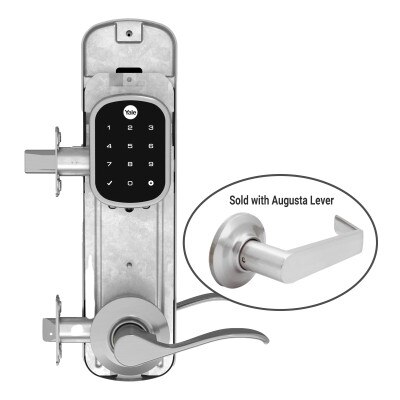

• YRC256-ZW2-AU-5-619-LH: Satin Nickel

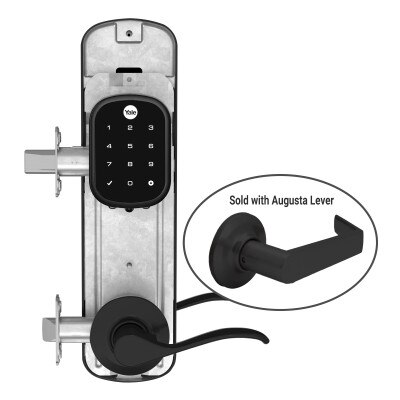

• YRC256-ZW2-AU-5-BSP-LH: Black Suede
• UPC: N/A
• Grade 2: A156.36 ANSI/BHMA
• Wireless Protocol: Z-Wave (908.4 MHz) U.S. – includes plug-in Network Module
• Max. User Codes: Standalone: 25 user codes; With Network Module: 250 user codes; 4-8 digits each
• Keypad Type: Touchscreen
• Batteries: 4 AA Alkaline Batteries (Included), 9V Backup Battery
• Lever Style: Augusta (AU)
• Handing: Reversible, Self handing
• (Please hand while in unlocked position)
• (Lock is set at LH (hinges left); can be reversed in the field for RH by a professional)
• Latch Front: RC (Round Corner)
• Door Thickness: 1 3/8 to 1-3/4 inches
• Strike: 1" x 2 1/4"
• Strike Front: RC (Round Corner)
• Face Bore: 2-1/8" (54mm)
• Edge Bore: 1" (25mm)
• Backset: 2-3/8"
• Center to Center: 5.5"
• Indoor Keyway 1: KW-1, 5-Pin
• Number of Keys: 2
• Operating Temperature:
• Outdoor Keypad: -22°F to 140°F (-30 to 60°C)
• Indoor Keypad: 5°F to 158°F (-15 to 70°C)
• Approvals: FCC/IC; ANSI/BHMA Grade 2 – BHMA Certified; ANSI A117.1 Accessibility Code; UL/cUL listed for 90 minute fire doors
• Warranty: 1 Year for Electronics and Finish; 3 Years for Mechanical
