Ezlo EZ Essentials Kit

Create a Smart Security and Automation System with Z-Wave, Zigbee, RF, & Wi-Fi Control

Build a versatile home security and automation system with one of the most powerful smart home and security controllers in the industry and access to a reliable security platform with the Ezlo EZ Essentials Kit. This security and automation kit includes the Ezlo Secure Smart Security Controller, a 2GIG PIR Motion Sensor, and three (3) 2GIG Thin Door/Window Sensors. The Ezlo Secure is one of the most powerful automation and security system controllers available, capable of supporting thousands of Z-Wave, Zigbee, RF 345/433 MHz, and Wi-Fi devices via mobile app, web platform, or voice control. Featuring a built-in backup battery, local network control, and optional backup LTE connectivity, the Ezlo Secure ensures your smart home or smart security network is always online and performing optimally. The 2GIG Wireless Passive Infrared Motion Detector senses movement within a 30-foot long by 50-foot wide area view and ignores movement from small to medium-sized animals weighing up to 55 pounds. The 2GIG Wireless Thin Door/Window Contact monitors the status of any open/close object, including a door, window, cabinet, drawer, etc.

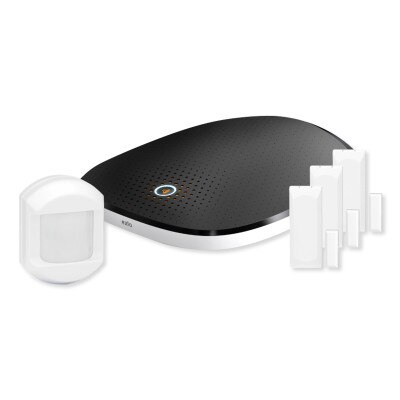

• Security and automation kit includes Ezlo Secure controller, 3 door/window sensors, and 1 Pet Immune motion detector
• Ezlo Secure commands up to 4000 Z-Wave, Zigbee, RF 345/433 MHz, and Wi-Fi connected devices including lights, thermostats, door locks, ONVIF cameras, sensors and more
• Compatible with up to 27,000 Wi-Fi devices associated with Amazon Alexa or Google Assistant using Ezlo VOI
• Ezlo VOI platform consolidates separate voice command systems and communication protocols under the Ezlo Protect app
• EzloCast feature enables instant and simultaneous control over groups of devices
• Ezlo Secure 4G LTE backup keeps you online if the internet connection is lost (with Ezlo Protect Security Platform only)
• Build custom automation scenes with MiOS based on your preferences, schedule, and needs for individual or grouped devices
• Local control offers ultra-fast responsiveness and keeps your system off the cloud
• Thin Contact Sensor fit into small spaces and monitors open/close status of an object
• PIR Motion Detector reports movement within 30(D) x 50(W) foot area and ignores animals up to 55 pounds
• Z-Wave Smart Start technology pairs news devices quickly and S2 framework ensures enhanced security
• Z-Wave 700 and Z-Wave LR software provide increased power, longer range, faster transmissions, and improved security
• Receive notifications and manage devices on your iOS or Android phone through the Ezlo Protect app
• Compatible with Ezlo Protect Security Platform for optional cloud storage, central station monitoring, and 4G LTE backup connectivity

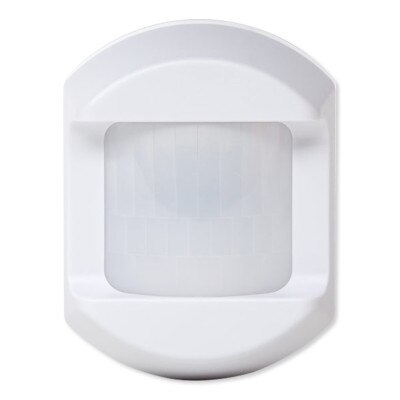

The 2GIG Wireless Passive Infrared Motion Detector senses movement up to a 30-foot away within a 50-foot horizontal view. This infrared motion sensor includes a pet immunity feature that ignores movement from small to medium-sized animals up to 55 pounds, allowing pets to roam your home anytime without setting off an alarm. The motion detector mounts indoors either flat against a wall or in a corner with the included installation hardware.

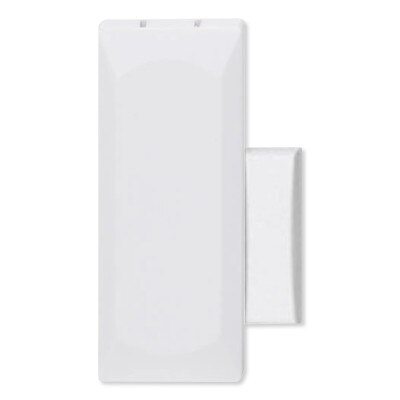

The 2GIG Wireless Thin Door/Window Contact monitors the status of any open/close object, including a door, window, cabinet, drawer, etc. This wireless, battery-powered sensor has an exceptionally narrow width to allow it to fit into small spaces and avoid detection from intruders. When the monitored open/close object is opened, the sensor signals the control panel to trigger an alarm.

What is EzloCast™?

Normally, Z-Wave triggers devices one by one when a command is executed. EzloCast™* utilizes the newest Z-Wave multicast capability, allowing for near simultaneous control by sending a single command to up to 232 grouped devices. In addition, the Ezlo Secure features the Z-Wave Long Range (Z-Wave LR) specification, which increases the transmission range of the controller as well as the number of connected devices from 230 to 4000.

Ezlo VOI Brings Multiple Networks & Voice Assistants Into One System

Ezlo VOI is a powerful patent-pending platform that consolidates control of all of your automated devices associated with any voice assistant through the VeraMobile or Ezlo Protect apps, eliminating the problem of device and communication compatibility between different virtual assistants and automation networks. For example, when your outdoor Wi-Fi camera paired to your Ezlo Secure hub spots movement in the yard at night, the VeraMobile or Ezlo Protect apps can tell Alexa or Google to activate your Z-Wave siren and turn on Wi-Fi connected lights without you having to utter a word.

Alternatively, you can create a security scene that activates your Z-Wave Door/Window sensors, turns off all your Wi-Fi connected lights and light switches, and auto locks your front door behind you when you say "Alexa, I'm off for work".

Ezlo Protect Security Platform Provides Additional Support and Features for Installers and Customers

The Ezlo EZ Essentials Kit is compatible with the Ezlo Protect Security Platform, an optional security package and software platform that takes full advantage of the capabilities of Ezlo's hubs to enable users to integrate and control thousands of devices from hundreds of partnered companies. Powered by MiOS software, Ezlo Protect provides benefits for installers and end users alike to ensure that your Ezlo network is properly installed and capable of fulfilling any automation or security tasks that you envision. Ezlo Protect is a monthly subscription service available in three tiered packages outlined below:

• EZ Smart Home: The EZ Smart Home package provides additional remote and automation features to your Ezlo Security network including remote notifications, IP Connectivity for all compatible devices, as well as cloud video storage that saves footage from a compatible video camera or doorbell for up to 60 days.
• EZ Smart Security: The EZ Smart Security package includes everything provided by EZ Smart Home, as well as the added benefits of remote monitoring and support from Ezlo's Central Station Monitoring Service and forwarded alarm signals to the Monitoring Service so someone is guaranteed to know when an alert is triggered.
• EZ Smart Security Plus: The EZ Smart Security Plus package includes everything provided by EZ Smart Home and EZ Smart Security, plus 4G LTE connectivity for the Ezlo Secure Security Controller to keep your network connected in the event of your local internet failing.

For more information, visit https://www.ezlo.com/business/ezlo-protect/.

Ezlo Protect App Provides a Powerful & Intuitive User Interface

Control the Ezlo EZ Essentials Kit with the Ezlo Protect app for iOS and Android mobile devices (also accessible via PC). The EzloProtect app works with the web browser MiOS Dashboard to bring all of your connected devices into a single user-friendly interface, making initial setup, device inclusion, and scene configuration easy to accomplish.

• Individually configure and manually control any connected device
• Use pre-set modes to quickly assign commands to all connected devices in your network
• View the status and energy consumption of all connected devices
• Customize your dashboard to access favorite or recently used devices or settings
• Enable Local Mode to keep your automation or security network running without connecting to cloud servers
• Voice Control compatible with Amazon Alexa and Google Home

Dealers and Installers benefit from Ezlo Protect through an exclusive Ezlo Protect Installer app that streamlines the installation process, helps customers start up their automated scenes, manages installation queue appointments, and gives the option to send out surveys to end users when installation is complete.

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Installation Details

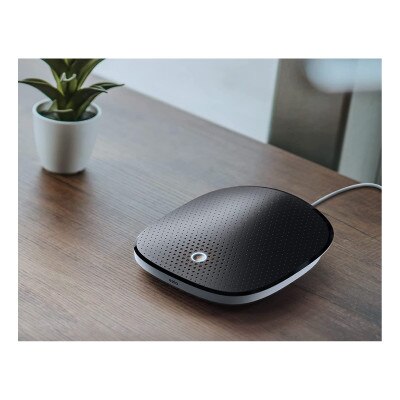

The Ezlo Secure connects to your router (or other Internet source) via Wi-Fi or with the included Ethernet cable. It plugs into a power outlet using the included power supply.

The 2GIG Wireless Thin Door/Window Contact Sensor consists of two pieces, the sensor and the magnet. The sensor mounts on the door/window itself and the magnet mounts on the frame using the included mounting tape.

The 2GIG Wireless Passive Infrared Motion Detector mounts indoors either flat against a wall or in a corner with the included installation hardware.

Contents

• Ezlo Secure Controller
• Power Supply
• Ethernet Cable
• Quick Start Guide
• PIR Motion Detector
• Mounting Bracket
• Flat Wall Mount
• Corner Mount
• (2) Dowels
• Door/Window Contact
• Magnet
• Mounting Tape
• Wire Lead, 12"
• (5) Screws
• (3) Lithium Batteries
• Instruction Manual

Notes

• Ezlo Secure requires an Internet connection.
• iOS 9 or Android 8.1 are required for operation of Ezlo VOI and VeraMobile app.
• *4G connectivity with Ezlo Protect service only.

Ezlo Aims To Connect Everything

Ezlo's goal is to provide automated solutions to everyday tasks by delivering innovative smart devices into your home. With products that promote wide compatibility and connectivity with a multitude of technologies and manufacturers, including FortrezZ and Vera Control, Ezlo aims to make home automation more accessible and easier to improve upon.

• Manufacturer Part #: EzloSecure 3-1
• UPC: 850010800493
• Warranty: 3-Year Limited

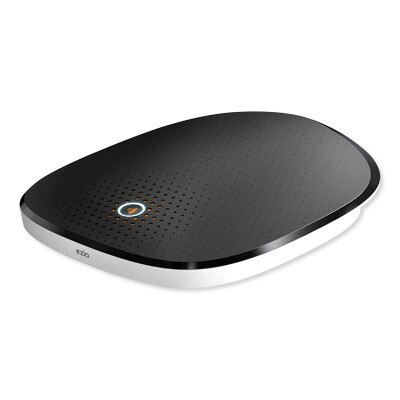

Ezlo Secure Smart Security Controller (EzloSecure-US-EP)

• Wireless Protocols:
• Z-Wave Plus (700 Series), Z-Wave LR (Long Range)
• Zigbee HA 3.0, 1.2
• Wi-Fi: 802.11 a/b/g/n/ac; 2.4 and 5GHz
• Connectors:
• 1 USB Port 2.0, USB host
• 1 WAN Port 10/100 Ethernet
• Processor: 1GHz, Quad-Core Cortex-A7 ARM CPU
• Flash Memory: EMMC 16GB
• RAM Memory: DDR3 512MB
• Power Supply:
• Input: AC 100-240VAC, 50-60Hz; Li-ion battery 5000mAh
• Output: DC 5V/2A
• Dimensions: 7.65 H x 6.48 W x 1.8 D inches (194.37 x 6.48 x 45.85 mm)
• Certifications: FC, CE, RoHS

2GIG Wireless Passive Infrared Motion Detector (2GIG-PIR1-345)

• Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
• Code Outputs: Alarm; Alarm Restore; Tamper; Tamper Restore; Supervisory; Low Battery
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Transmitter Frequency Tolerance: ±15kHz
• Transmitter Bandwidth: 24kHz
• Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
• Unique ID Codes: Over one million different code combinations
• Supervisory Interval: 70 minutes
• Peak Field Strength: Typical 50,000 uV/m at 3m
• Sensor Type: Quad element
• Pet Immunity: Selectable – 15 kg (33 lbs) or 25 kg (55 lbs; default)
• Sensitivity Jumper: Selectable – High or Low (default)
• Suggested Mounting Height: 7.5 feet (2.3 m)
• Sensor Range: 30 x 50 feet (9.1 x 15.2 m)
• Max. Horizontal Sensing Angle: 90 degrees
• Dimensions: 3.2(L) x 2.5(W) x 1.9(H) inches (8.12 x 6.35 x 4.82 cm)
• Weight: 3.7 ounces (104.9 g)
• Housing Material: ABS plastic and polycarbonate
• Color: White
• Operating Temperature: 32° to 120° F (0° to 49° C)
• Relative Humidity: 5 to 95 percent Non-Condensing
• Battery: One (1) Panasonic CR123A or equivalent Lithium battery (included)
• Regulatory Listings: ETL, FCC Part 15, Industry Canada
• Included Accessories: Mounting brackets, 2 long Phillips head screws, 2 plastic wall anchors
• Warranty: 2-Year Limited

2GIG Wireless Thin Door/Window Contact (2GIG-DW10-345)

• Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
• Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery; External Alarm; External Restore; Tamper; Tamper Restore
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Transmitter Frequency Tolerance: ±15kHz
• Transmitter Bandwidth: 24kHz
• Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
• Unique ID Codes: Over one million different code combinations
• Supervisory Interval: 70 minutes
• Peak Field Strength: Typical 36,000 uV/m at 3m
• External Input Sampling Current: 20 uA
• External Input: Accepts N/C dry contact devices
• Reed Switch Magnetic Sensitivity: 10 to 20 amp turns
• Reed Sensitivity: 0.625 in. (1.59 cm) minimum gap, 0.85 in. (2.16 cm) typical
• Magnet Dimensions: 1.3(L) x 0.435(W) x 0.312(H) inches (3.3 x 1.1 x 0.79 cm) typical
• Magnet Type: Rare earth
• Sensor Dimensions: 2.59 x 1.03 x 0.49 inches (6.58 x 2.62 x 1.24 cm)
• Weight: 1.1 ounces (31.2 g), including battery and magnet
• Housing Material: ABS plastic
• Color: White
• Operating Temperature: 32° to 104° F (0° to 40° C)
• Relative Humidity: 5 to 95 percent Non-Condensing
• Battery: Two Panasonic CR2032 or equivalent Lithium batteries (installed with pull tab)
• Included Accessories: Two Phillips flat-head screws
• Warranty: 2-Year Limited
