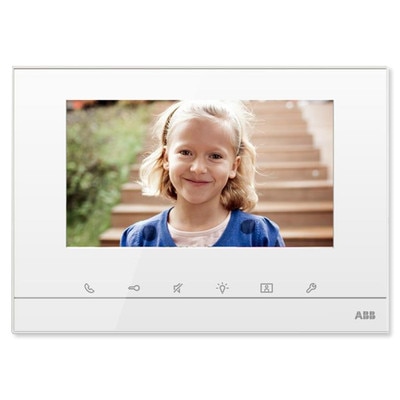

ABB-free@home Touch Indoor Video Station, 7", White (Open Box)

Unite Two ABB Systems in One Location

Control your ABB free@home and ABB Welcome systems with the ABB-free@home Touch Indoor Video Station, 7 Inch. This touchscreen video panel acts as both a controller for your ABB-free@home system and as an intercom for your ABB-Welcome system. As a controller, this video station can control up to 16 functions including lighting, automation, thermostats, and more. As a video intercom the indoor station emits one of 5 sounds and displays a picture of the visitor when a connected door station is rung.

• Touch display integrates with both ABB-free@home and ABB Welcome door entry systems
• Local control over up to 16 functions
• Command connected lighting, scenes, door openers, thermostats, intercoms, and more
• Illuminated operation keys display options
• Full thermostat control capability
• Displays and stores picture of guests when door station is used
• Available SD card slot for additional picture memory
• Configurable via ABB-free@home app or web browser

The Touch Indoor Video Station connects to both the ABB-free@home System Access Point and the ABB-Welcome Systems Controller and is powered by either the system hubs. The Video Station can be used exclusively as part of the ABB-Welcome system.

Installation Details

The Touch Indoor Video Station mounts onto a DIN Rail mount or directly onto a metal surface.

Contents

• Video Station
• Mounting Hardware

NOTE: For indoor use. free@home System Access Point and Welcome System Controller each sold separately.

ABB: Power & Productivity For A Better World

ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.

• Manufacturer Part #: DP7-S-611-01
• UPC: 888614778948
• Color: White
• Display resolution: 800 x 480
• Display size: 17.8 cm (7")
• Operating temperature: -5°C to +40°C
• Storage temperature: -20°C – +70°C
• Protection: IP 20
• Single-wire clamps: 2 x 0.6 mm² – 2 x 1 mm²
• Fine-wire clamps: 2 x 0.6 mm² – 2 x 0.75 mm²
• Welcome bus voltage: 28 V- ±2 V
• free@home bus voltage: 21-30V
• free@home bus clamps: 0.6-0.8mm Single-wire
• Volume Maximum: 85 dBA (Distance:0.5 m)
• Dimensions: 8.58 in (H) x 6.10 in (W) x 1.14 in (D)
• Approvals: RoHs
