ABB-free@home Ceiling Fan Controller

Please select option to view availability

SKU: ABFC31xx
$111.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Add Simple Fan Control with LED Speed Indicator

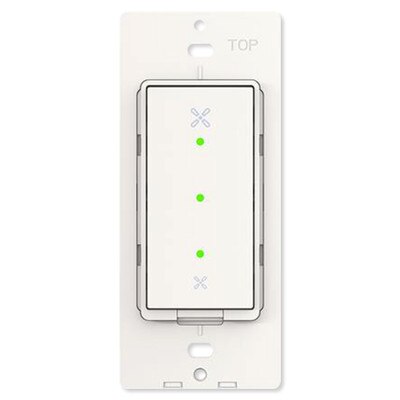

Replace a standard On/Off Switch with a multi-speed fan switch with the ABB-Free@home Ceiling Fan Controller. This multi-speed ceiling fan controller offers noiseless control of your household ceiling fan. Simply press the rocker paddle to choose among four speeds – off, low, medium or high. LEDs on the rocker paddle display the current fan speed. A fan symbol is engraved on the rocker paddle for easy identification.

  • Wire-in fan switch operates silently
  • Three green LEDs on rocker paddle indicate fan speed
  • LED backlight assists with locating the ceiling fan controller in the dark
  • Binary input allows for three-way applications with fan control from multiple locations (neutral wire required)
  • Available in white and light almond colors to compliment any home décor
  • Fits in standard decorator-style wall plates

When integrated into the ABB-free@home smart home system, the ceiling fan controller can be programmed for three-way applications as a remote to control other ABB-free@home devices. The rocker paddle can be programmed as a keypad controlled with the upper and lower rocker functions.

With ABB-free@home integration, you can configure the ceiling fan controller to work with a motion detector and automatically switch off after a specified period of inactivity for energy savings. You can also set the brightness of the LED for day and night or disable the LED altogether.

Contents

  • Fan Controller

NOTE: Does not require a remote device to be mounted in the ceiling fan motor. Neutral wire required for three-way applications.

ABB: Power & Productivity For A Better World

ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.

  • Manufacturer Part #:
    • FC-3.1-LA: Light Almond
    • FC-3.1-WH: White
  • Load Type:
    • Fan Power: (150 W) 15 A
    • Output power: (200 VA/watt) 15 A
  • Operative Voltage: 120 VAC, 60Hz
  • Connection: Hot and Neutral wires required
  • Operating Temperature: 23°F to 113°F (-5°C to 45°C)
  • Certifications: UL, FCC, IC
