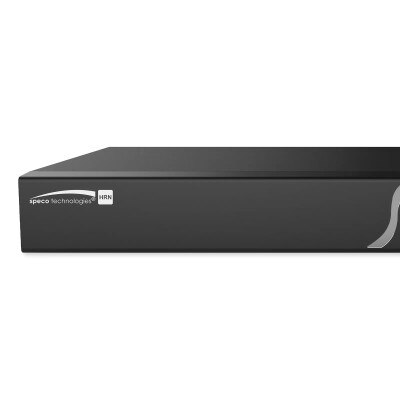

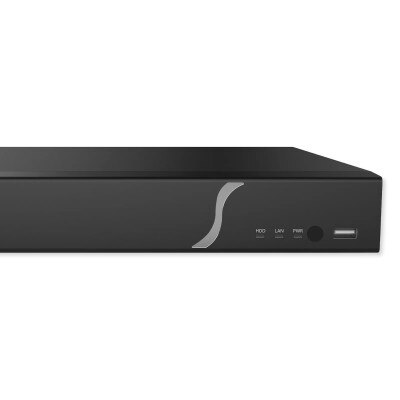

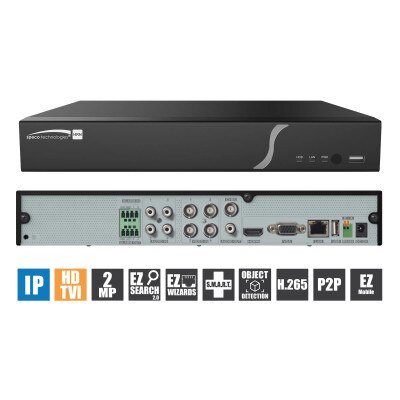

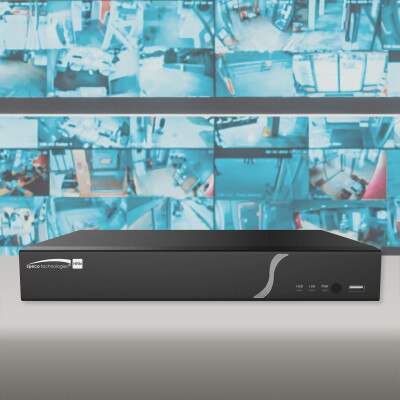

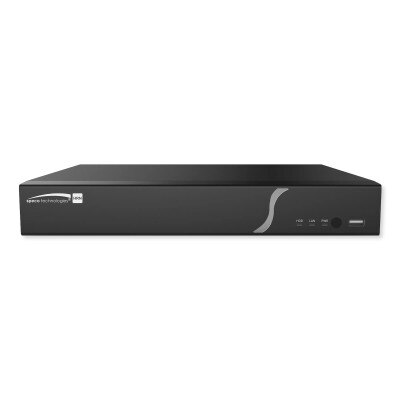

Speco 6 Channel Hybrid Digital Video Recorder with 1 SATA Port

Support 4 Analog Cameras and 2 IP Security Cameras

Create an HD surveillance network with the Speco 6 Channel Hybrid Digital Video Recorder with 1 SATA Port. This digital video recorder (DVR) records surveillance footage captured from 4 analog TVI and 2 IP security cameras for a flexible surveillance installation that makes use of existing legacy cameras and newer IP cameras. 1 SATA port is available to connect the DVR to a separate storage unit or to an additional DVR to expand the size of your surveillance network. This DVR supports Smart Analytics software for superior surveillance performance and playback review with features like motion detection, line crossing detection and alerts, object recognition, and more when paired with compatible cameras.

• Digital video recorder supports 4 configurable hybrid channels (TVI, AHD, or CVI) and 2 dedicated IP channels
• Analog channels reach a max resolution of 1920 x 1080p@15fps, and IP channels reach a max resolution of 2560 x 1920p @30fps
• Supports 2-way audio communication to talk with subjects within a camera's FOV
• Simultaneous HDMI and VGA monitor output
• H.265 compression stores up to 2x more footage than H.264
• Smart Analytics improve saved footage with smart playback functionality
• Remote viewing of connected stream via web browser, Apple TV, Amazon Fire TV, or mobile device

The DVR supports between 1024 x 768p to 1920 x 1080p resolution across all four analog channels, and 720 x 480p to 2560 x 1920p (5 MP) resolution across 2 IP channels (depending on network bandwidth). This DVR supports Smart Analytics software that simplifies reviewing saved footage for specialized surveillance tasks. By connecting a Speco Analytic camera to the DVR, you can review footage through the Speco management portal using Smart Playback functions, such as drawing a line or box across a specific area of a recording in order to rapidly search for activity within the selected area.

The 6 Channel Hybrid DVR connects to the Internet to provide remote management and access to the system and enables you to playback footage, adjust settings, and monitor connected cameras from any Internet enabled device. Built-in S.M.A.R.T. technology enables self-monitoring, analysis and reporting for the DVR's HDD. In case of network interruption or connection loss, the DVR can automatically record footage to inserted USB drives and transfer files back to the DVR when connection is restored.

The 6-Channel DVR has "EZ Wizard" functions for quick installation.

• EZ Wizards: For the Quickest Use & Installation
• Camera: Quickly discovers and installs all Speco IP cameras
• Setup: For quick system setup
• Network: Network setup and port forwarding
• Record: Quickly setup recording resolutions and recording type
• EZ Search 2.0: Quickly search events from thumbnails
• EZ Copy: Auto copy what you are playing onto a USB flash drive
• EZ Mobile: Easy Mobile Setup for viewing on desktop or mobile apps

A web-enabled PC or MAC computer is required to operate the DVR. You can access the network via Speco Blue and SureGuard VMS, and supported Internet browsers.

Installation Details

The DVR can be placed on a tabletop or rack mounted within a media enclosure. Configure the inputs to match with your available TVI or IP cameras and connect them to the recorder with the corresponding cables. Once the connections are set up, use the EZ Wizard tools to quickly set up your surveillance system.

Contents

• DVR Unit
• Power Cable
• Ethernet Cable
• Optical Mouse
• Quick Start Guide

Notes

• Hard drives not covered by 5-year warranty.
• USB device not included.
• Smart Analytics requires Analytic Cameras connected to the DVR, sold separately.

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers, architects and homeowners rely on Speco products to satisfy both their commercial and residential needs.

• Manufacturer Part #:
• H6HRN2TB: 2TB
• H6HRN4TB: 4TB
• UPC:
• H6HRN2TB: 030519034845
• H6HRN4TB: 030519034869

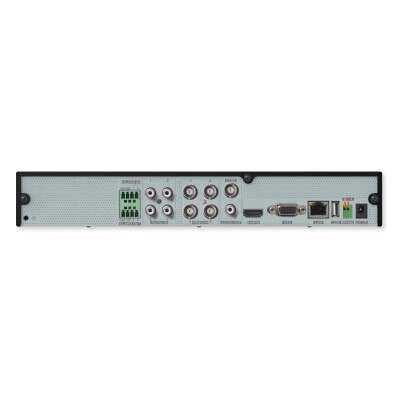

System

• OS: Embedded Linux

Video

• Analog Only Input:
• BNC x 4
• BNC Interface (1.0Vp-p; 75Ω)
• TVI/AHD/CVI: 1080P/720P/WD1 (live)
• IPC Video Input:
• 2 dedicated channels
• Up to 5MP @30fps
• Bandwidth: 16Mbps
• Total Number of Channels: 6 CH
• Output:
• HDMI x 1: 1920 x 1080 / 1280 x 1024 / 1024 x 768
• VGA x 1: 1920 x 1080 / 1280 x 1024 / 1024 x 768
• BNC x 1: CVBS (used as the main or spot output)
• Multi-screen Display: 1 / 4 / 6 / 8 / 9 / 13 / 16
• Compression: H.264/H.265

Audio

• Network Input: RCA x 4
• Network Output: RCA x 1
• Two-Way Audio: Take up channel one audio input
• Compression: G.711 (U/A)

Recording

• Resolution: 5MP Lite / 4MP Lite / 1080P / 1080P Lite / 720P / WD1 / D1
• Frame Rate:
• Analog Channel: 1080P@15fps; 720P / WD1 / D1 / 30fps (NTSC)
• IP Channel: 30fps (NTSC)
• Recording Mode: Manual, timer, motion, smart event

Search & Playback

• Simultaneous Playback: Max 4 Channels
• Search Modes: Time slice / time / event / tag search
• Smart Search: Highlighted color to display camera records in a certain period of time, different colors refer to different record events
• Playback Functions: Play, pause, FF, FB, digital zoom, etc

Alarm

• Mode: Manual, motion, exception, smart event
• Channel Input: 4 channels
• Channel Output: 1 channels

Network

• Interface: RJ45 100 Mbps
• Protocols: TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
• Webclient: Max 5 online users monitoring
• Mobile Device OS: Speco Blue, iOS, Android, SecureGuard® Client

Storage

• HDD: SATA x1, max 16TB per HDD
• eSATA: 0

Backup

• Local: USB, USB mobile HDD
• Network Backup: Yes

Ports

• RS 485: Yes (half-duplex), connect to PTZ or keyboard
• USB: USB 2.0 x 2
• Remote Control: Optional

Power

• Power Supply: DC12V/2A
• Power Consumption: ≤10W (without HDD)

Physical

• Dimensions: 11.8" x 9.8" x 1.77" (300mm x 249mm x 45mm)
• Operating Temperature: -4 to 122°F (-10 to 50°C)
• Operating Humidity: 10 to 90% non-condensing
