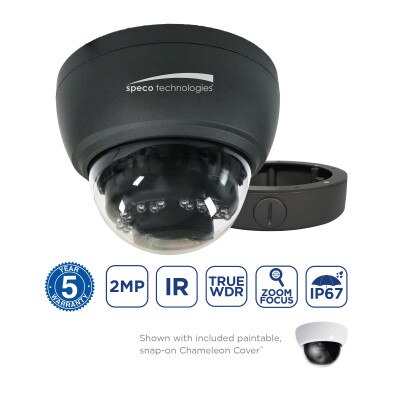

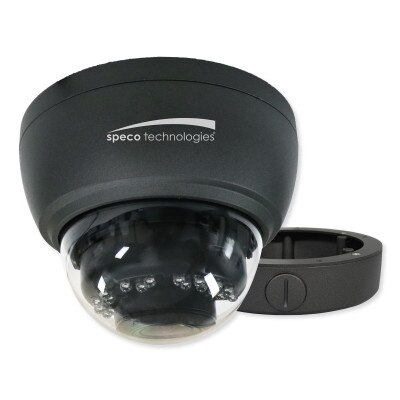

Speco 2MP HD-TVI IR Dome Camera, 2.8-12mm Motorized Lens
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Watch Over Your Property in Any Weather Conditions
Monitor your outdoor property in high definition with the Speco 2MP HD-TVI IR Dome Camera, 2.8-12mm Motorized Lens. This HD outdoor surveillance camera captures video footage in 1080p resolution @ 30fps through a 2.8-12mm motorized lens to deliver to a connected digital video recorder (DVR) via coax connection. The camera utilizes a powerful IR cut filter and CMOS image sensor to reduce saturation and see in near total darkness during night time operation, while also employing true wide dynamic range operation (WDR) to improve the image quality of the camera under high-contrast lighting conditions. The camera is protected by IP67 rated weather resistant housing that includes a built-in heater and anti-fog glass to reduce condensation and freezing during inclement weather and ensure consistent operation. Additionally, this camera includes a paintable, snap-on Chameleon Cover™ that helps camouflage your camera and blend in with your build-ings decor.
- Dome camera with 2.8-12mm motorized mens captures Full HD 1080p @ 30fps resolution over coax (HD-TVI)
- True WDR (wide dynamic range) maintains image clarity in high contrast areas
- IR cut filter allows the camera to record in near total darkness
- Full Object Storage Drive (OSD) operation via on-board control and UTC (up the coax)
- Capture and record footage in multiple format options (TVI, CVI, AHD, CVBS)
- Built-in heater and anti-fog glass reduces condensation and frost build up in rainy, humid, and freezing conditions
- Paintable Chameleon Cover™ helps the camera blend in to match any décor
- 12VDC & 24VAC dual voltage operation
- Weather resistant (IP67) and vandal resistant casing and junction box for most environmental conditions
Retrofit Analog Installations
HD-TVI (High Definition Transport Video Interface) cameras use the same coaxial cables as traditional analog CCTV cameras, making HD-TVI cameras excellent retrofit solutions for existing home surveillance systems. HD-TVI cameras let you avoid having to rewire your home with ethernet cables, saving you time and money while still providing 1080p HD images.
Remote Management from Your Computer or Phone
The Dome Camera can be controlled via Speco's web management tool and free Speco Mobile app when connected to a compatible digital video recorder (DVR), sold separately. Through the web tool or the app, you can view live footage from connected cameras, adjust settings and customize presets for optimal, personalized performance.
Installation Details
Place the mounting base onto a flat surface and drill the mount into place. Route and connect the camera's coaxial and power cables before attaching the camera to the mounting base. Adjust the direction of the camera using the len's 3 axis mount.
Contents
- Bullet Camera
- Junction Box
- Installation Hardwire
- Manual
Notes
- 12VDC Power Supply not included.
- Digital video recorders (DVR) sold separately.
IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.
Speco Technologies
For over 45 years, SPECO Technologies has been dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers and architects rely on Speco products to satisfy both their commercial and residential needs.
Specifications
- Manufacturer Part #: HT5940TM
- UPC: 030519037549
- Image Sensor: 1/2.9" Progressive Scan CMOS, 2MP
- Minimum Illumination: 0.00 lux (IR LED on)
- Effective Pixels: 1984 (H) x 1105 (V)
- Total Pixels: 2000 (H) x 1121 (V)
- Scanning System: Progressive Scan
- IR Range: 66ft. (depending on scene reflection)
- Signal Distance: Up to 1600 feet (depending on coax quality)
- S/N Ratio: More than 50dB
- Resolution: 1920 x 1080 @ 30fps / 1280 x 720 @ 60fps
- Video Output: 1.0Vp-p / 75 Ohms
- Electronic Shutter: Auto/Manual (1/30 – 1/30,000 sec.)
- WDR: On (Low/Middle/High)/Off
- Day and Night: Auto/Color/BW/External
- White Balance: Auto/AWB/AWC-Set/Manual
- Brightness: 0 to 20 (adjustable)
- AGC (Gain Control): 0 to 20 (adjustable)
- Sense-up: 2x – 32x (adjustable)
- Backlight: BLC/HLC
- Motion Detection: On/Off (4 zones)
- Privacy Masking: On/Off (16 zones)
- Mirror: On/Off
- Flip: On/Off
- Sharpness: 0 – 10 (adjustable)
- DNR: Off/Low/Middle/High
- Test Monitor Output: CVBS
- Communication: UTC (up the coax)
- Power: 12VDC/24VAC dual voltage (power supply not included)
- Power Consumption:
- 12VDC, 500mA max.
- 24VAC, 195mA max.
- Operation Temperature: -4° to 122°F (-20° to 50°C)
- Weight: 3 lbs

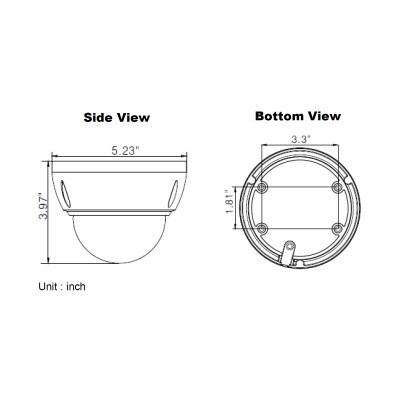

- Dimensions: 3.95" (H) x 5.24" (Dia)
- Weight: 0.7 lbs.
- Certifications: FCC, RoHS
- Warranty: 5 Years
