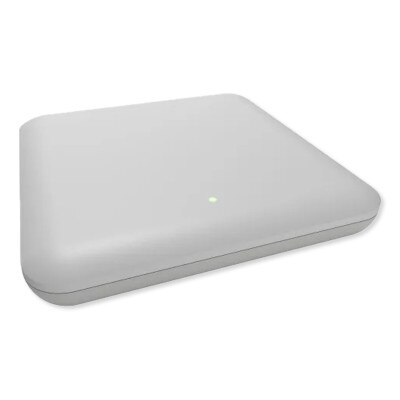

Luxul Wi-Fi 6 4x4 Multi-Gig Access Point

Wi-Fi 6 Router Delivers Consistent Gigabit Speeds

Add Wi-Fi 6 network capabilities to your home or business over with the Luxul Wi-Fi 6 4x4 Multi-Gig Access Point, US. This wireless access point utilizes Wi-Fi 6 network standards to deliver optimal wireless performance in large or crowded spaces. The Access Point includes four dual-band antennas capable of streaming data at speeds up to 1.2 Gbps at 2.4GHz and 2.4 Gbps & 5GHz to a large number of wireless devices. It can also reliably handle multiple simultaneous high bandwidth data streams at the same time, such as video surveillance or HD video streaming. This Access Point includes support for captive portal and walled garden features to create secure local networks ideal for commercial applications.

• Wi-Fi 6 Access point delivers optimal Wi-Fi coverage for large or crowded areas with lower latency, less interference, and better transfer speeds
• Stream data up to 1.2 Gbps at 2.4GHz and 2.4 Gbps at 5GHz
• Supports high-bandwidth tasks including HD streaming, video surveillance, or gaming applications
• VLAN supports creation of a secure guest network
• Supports Captive Portal / Walled Garden Access for secure local wireless access
• PoE connection simplifies installation

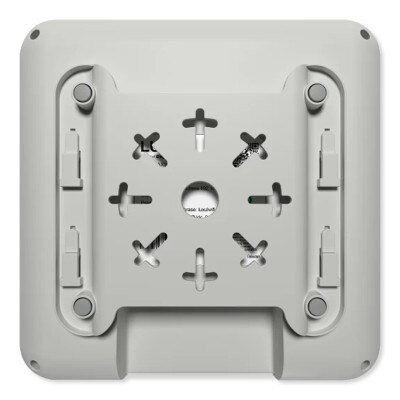

• Versatile mounting options for walls, drop ceilings, or desktop surfaces

Installation Details

The Luxul Wi-Fi 6 4x4 Multi-Gig Access Point can be set up as the single wireless gateway to your local network. The Wireless Access Point is primarily powered by a Power over Ethernet connection from a compatible router, network switch, or PoE adapter (sold separately). Connect the Access Point to your routing device with an Ethernet cable via either a standard Ethernet port or a PoE compatible port and configure the Access Point via your preferred web browser.

Contents

• AP-3064 4x4 Dual Band Indoor Access Point
• Mounting Bracket
• Rubber Adhesive Mounted Feet
• Drop Ceiling Mounting Clips
• Quick Install Guide

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

• Manufacturer Part #: AP-3064
• UPC: 655003923698
• Standards: IEEE 802.11b/g/n/ax, IEEE 802.11a/n/ac/ax, IEEE 802.3af/at

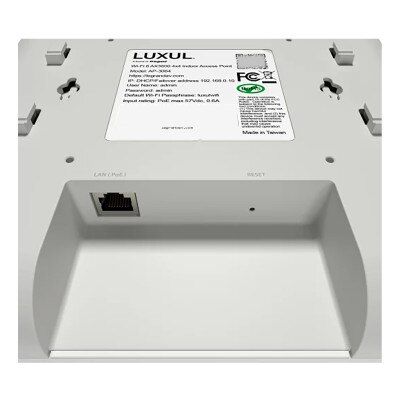

• Interface:
• 2.5GbE port with 802.3at Type2
• PoE+ Class 4 PD, Also supports 1GbE
• Antenna:
• 4 x 2dBi 2.4GHz integrated dual band antenna
• 4 x 2dBi 5GHz integrated dual band antenna
• Button: Reset
• Power Supply: IEEE 802.3af/at PoE input (Plug-In Injector not included)
• Max Power Consumption: 25.5W
• LEDs: One tri-color R/B/G LED
• Frequency: Concurrent 2.4GHz and 5GHz with Beamforming
• Wireless Speed:
• 2.4GHz: 1 mbps
• 5GHz: 2.4 mbps
• Wireless Security: WPA2, WPA3, WPA2/WPA3 mixed mode-PSK
• Operating Mode: Wireless AP
• Other Functions and Features:
• Captive Portal Configuration
• Walled Garden Configuration
• Target Wake Time (TWT)
• 4x4 Mu-MIMO
• System Logging
• Backup & Restore Configuration
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Dimensions: 8.86 (L) x 8.86 (W) x 1.71 (H) inches (185 x 185 x 43.5 mm)
• Weight: 2.27 lbs
• Certification: FCC, IC, RoHS, TAA
• Warranty: 3-Year Limited
