Luxul AC1200 Wireless Controller Kit

Gain Seamless Roaming for Mobile Devices In Large Areas

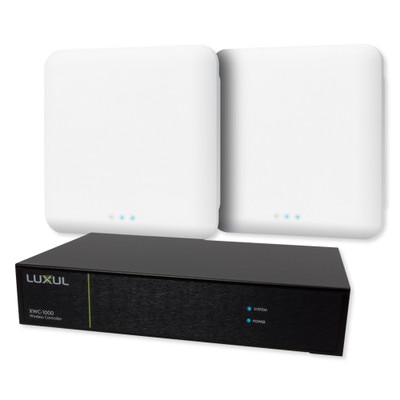

The Luxul Wireless Controller Kit uses Roam Assist Technology and includes everything needed to provide stable, secure, and usable Wi-Fi coverage in large areas. This kit includes one XWC-1000, two XAP-810 Access Points (APs), and two PoE Injectors. The wireless controller provides an easy way to set up and manage a multi-access point wireless network to provide seamless roaming of mobile devices. The XAP-810 Access Points offer 802.11ac 2x2 dual-band technology and 5Ghz beamforming for creating a wireless connection that's faster, stronger, and more reliable.

• Provides everything needed for seamless roaming of mobile devices within a wireless network
• Includes one XWC-1000, two XAP-810 Access Points, and two PoE Injectors
• Create a secure guest network with broad coverage
• Central control and configuration of Luxul access points
• Deliver broader Wi-Fi coverage and eliminate device roaming issues
• 802.11ac 2x2 MIMO technology with data transfers up to 1200Mbps and 5Ghz beamforming

Installation is easy since this wireless controller only has two connections: one for power and another for a single Gigabit Ethernet port. The XAP-810 APs have a sleek design, allowing for unobtrusive installation on a wall, ceiling, or flat surface. Two PoE injectors are included for delivering data and electrical power to PoE-enabled devices such as Wireless Access Points using Ethernet cable. This eliminates the need of having to place APs near power outlets, making installation even easier.

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

• ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
• ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
• ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

The Luxul devices in this kit are ProWatch Enabled. They can all be remotely monitored and controlled via the ProWatch software, receive OTA firmware updates, deliver notifications, and remotely restarted.

Contents

• XWC-1000 Wireless Controller
• Rack Mount Kit
• Rubber Feet
• Power Cord
• (2) XAP-810 Access Points
• (2) PoE Injector

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

Requirements

• Computer with Windows, Mac or Linux OS
• Ethernet Cable

Product Features

Access Point (XAP-810)

• AC1200 2x2 dual-band MIMO
• Up to 4 SSIDs per band (8 total)
• Compatible with the Luxul Roam
• Assist Wireless Controllers
• Single cable installation with
• PoE (Injector included)

Technical Details

• Manufacturer Part #: XWS-1810
• UPC: 655003920697
• Warranty: 3-Year Limited

Wireless Controller (XWC-1000)

• Controller:
• Simple Setup Wizard
• Management via Web Interface
• Cloud-based Firmware Updates
• Access Point:
• AP Provisioning
• Supports up to 16 APs
• Secure Guest Networks via VLAN
• 802.1Q VLANs
• WPA, WPA2 Security with TKIP, AES Encryption
• Interface: One 10/100/1000M Port
• Button: Reset button
• AV Series: LEDs on the front, Port on the back
• Power: Internal Switched Power AC100-240V, 50/62Hz 0.3A
• Max Power Consumption: 8.6W (XWC-1000)
• Dimensions: 11.6 x 7 x 1.75 inches (294 x 178.8 x 44.5mm)
• LEDs: Power, System, Ethernet Activity
• XWC-1000 Compatible Access Points:
• XAP-1510 AC1900 Dual-Band Wireless AP
• XAP-1500 Dual-Band Wireless 900N Low Profile AP
• XAP-1410 AC1200 Dual-Band Wireless AP
• XAP-1240 Wireless 300N Outdoor AP
• XAP-1230 Wireless 300N Commercial Grade AP
• XAP-1210 Wireless 300N Low Profile APwser
• Secure remote access via VPN
• Certification: FCC, CE, RoHS
• Warranty: 3-Year Limited

Access Point (XAP-810)

• Standards Compliance: IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at
• Interface: Two 10/100/1000M Ports
• Antenna: Two Dual-Band Antennas
• Button: Reset button
• Power: PoE (Injector Included)
• Power Consumption: 12W Avg
• Max Power Consumption: 17W
• Operating Temperatures: 32°F to 122°F (0°C to 50°C)
• Dimensions: 6.25 x 6.25 x 1.75 inches (158.75 x 158.75 x 44.45mm)
• LEDs: Power, 2.4GHz, 5GHz (Can be turned Off/On Via User Interface)
• Frequency: Concurrent 2.4GHz and 5GHz with Beamforming
• Wireless Speed:
• 2.4GHz: 300Mbps;
• 5GHz: 866Mbps
• Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2
• Operating Modes: Wireless AP
• Other Functions:
• Remote Web Management
• System Logging
• Backup & Restore Configurations
• Firmware Upgradeable via UI
• Certification: FCC, IC, CE, RCM, CE-LVD, CE-ErP
• Warranty: 3-Year Limited

PoE+ Injector (XPE-2500)

• Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3af/at standards
• Output Voltage: 51V 0.6A
• Output Power: PoE: 15.4W PoE+: 30W
• Input Voltage: AC100-240V 0.8A 50 60Hz
• Ports:
• 2-10/100/1000Mbps RJ45
• 1-Power Input
• Cable: Cat5e or better
• LED:
• PoE: Indicates power is being passed to the Connected 802.3af/at PoE device
• PWR: Power is connected to the PoE Injector
• PoE LED:
• On: Indicates the PoE Injector is delivering power to the connected 802.3af/at PoE enabled device
• Off: Indicates no power is being delivered to the connected device
• Flashing: An error indicating a power fault
• PWR LED:
• On: Power is connected to the PoE Injector
• Off: Injector is not receiving power
• Data & Power Out: Delivers power and data (via Ethernet cable) to the connected PoE enabled device
• Data In: Connects to your data source over Ethernet cable
• Power: 100-240V input voltage
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 0% to 90% (Relative Humidity Non-condensing)
• Storage Humidity: 10% to 90% (Relative Humidity Non-condensing)
• Dimensions: 5.25 x 2.375 x 1.3125 inches (133.35 x 60.32 x 33.34 mm)
• Certification: FCC, CE, RoHS
• Warranty: 3-Year Limited
