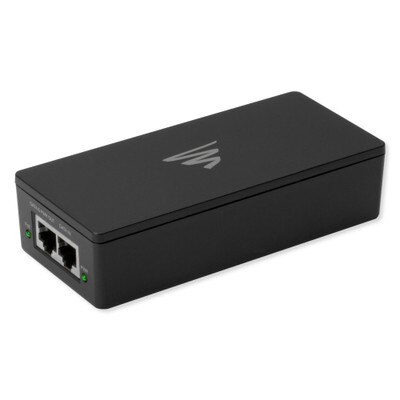

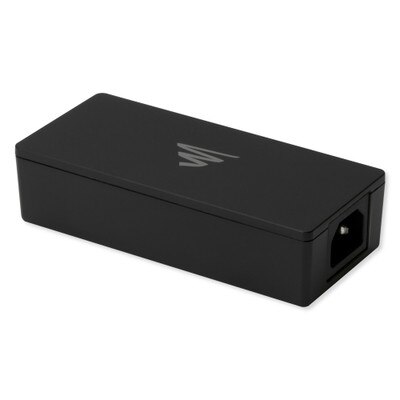

Luxul 1-Port PoE+ Injector

SKU: LXXPE2500

Usually ships in 3-5 days.

$Dealer

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Provide PoE Connections To PoE-Enabled Devices

Power and connect PoE-enabled devices using the Luxul Single Port Gigabit PoE/PoE+ Inject 30W. This injector delivers up to 30W of output power and data signals to 802.3af/at PoE enabled devices via a single Ethernet cable. The Injector can support data speeds up to 10/100/1000 Mbps and installation is easy – just plug and play.

  • Connects and powers PoE-enabled devices via Ethernet cable
  • Meets IEEE 802.3af/at compliant
  • Ethernet speeds up to 10/100/1000Mbps
  • Power overload protection
  • Easy to install, just plug and play

Contents

  • Luxul Single Port Gigabit PoE/PoE+ Inject 30W
  • Power Cord
  • Quick Install Guide

NOTE: If the injector is connected to a device and the PoE LED does not illuminate, this is an indication the connected device is not PoE enabled or not a 802.3af/at compatible device. Data will still be transferred.

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

Specifications

  • Manufacturer Part #: XPE-2500
  • UPC: 729440674496
  • Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3af/at standards
  • Output Voltage: 51V 0.6A
  • Output Power: PoE: 15.4W PoE+: 30W
  • Input Voltage: AC100-240V 0.8A 50 60Hz
  • Ports:
    • 2-10/100/1000Mbps RJ45
    • 1-Power Input
    • Cable: Cat5e or better
  • LED:
    • PoE: Indicates power is being passed to the Connected 802.3af/at PoE device
    • PWR: Power is connected to the PoE Injector
  • PoE LED:
    • On: Indicates the PoE Injector is delivering power to the connected 802.3af/at PoE enabled device
    • Off: Indicates no power is being delivered to the connected device
    • Flashing: An error indicating a power fault
  • PWR LED:
    • On: Power is connected to the PoE Injector
    • Off: Injector is not receiving power
  • Data & Power Out: Delivers power and data (via Ethernet cable) to the connected PoE enabled device
  • Data In: Connects to your data source over Ethernet cable
  • Power: 100-240V input voltage
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 0% to 90% (Relative Humidity Non-condensing)
  • Storage Humidity: 10% to 90% (Relative Humidity Non-condensing)
  • Dimensions: 5.25 (L) x 2.375 (W) x 1.3125 (H) inches (133.35 x 60.32 x 33.34 mm)
  • Certification: FCC, CE, RoHS
  • Warranty: 3 Year Limited

Downloads

»Luxul XPE-2500 Gigabit Power-over-Ethernet (PoE/PoE+) Injector Installation Manual (.pdf)
