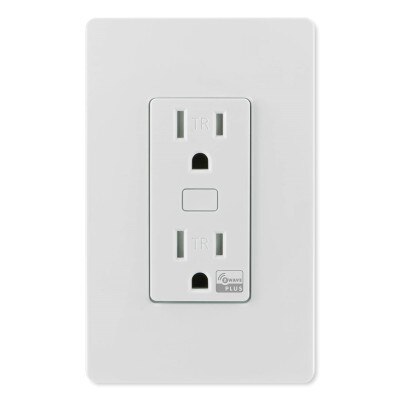

Enbrighten Z-Wave Plus v2 Smart Receptacle, Tamper Resistant, 700 Series

Add Z-Wave Control By Replacing A Standard Outlet

Add automation control to your home using Z-Wave technology by replacing a standard outlet with the Enbrighten Z-Wave Plus v2 Smart Receptacle, Tamper Resistant, 700 Series. When paired with a compatible Z-Wave hub, this outlet provides endless home automation possibilities, including voice control with Alexa and Google Home Assistant or wireless control of a plugged in appliance or lamp. This smart outlet includes a pass-through "always on" top outlet and a Z-Wave Plus controlled bottom outlet, which allows just about any low voltage plug-in device to be integrated into your automated Z-Wave network.

• One "always on" outlet and one Z-Wave Plus controlled outlet
• Z-Wave 700 Series Chipset includes S2 security and SmartStart provide easy inclusion into automation networks and secure operation
• Local On/Off button on the outlet allows for manual control of the device
• Built-in LED indicates On/Off status and helps locate outlet in the dark
• Range up to 150 ft (line of sight) between the closest Z-Wave Plus receiver and wireless controller
• Tamper-resistant design prevents insertion of foreign objects

The receptacle uses your existing wiring for easy installation (neutral wire required). As a tamper-resistant receptacle, this model prevents foreign objects from being inserted into the electrical slots, providing built-in protection that is superior to conventional protection plates or outlet caps.

The Z-Wave Plus controlled outlet supports a plug-in incandescent lamp up to 960 Watts, motor loads up to 1/2 HP, or 1800W/15A resistive loads. The entire receptacle (both outlets) can handle a total load up to 1800W/15A.

Z-Wave Plus v2 Certification

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Available Colors: White or Light Almond

Contents

• Z-Wave In-Wall Tamper-Resistant Smart Outlet
• Quick Start Guide

Notes

• Requires a Z-Wave hub controller.
• Neutral wire required.
• Wallplate not included. Uses standard single-gang wallplate. For indoor use only.
• The switch is designed only for use with permanently installed fixtures.

Enbrighten: Leader And Innovator In Electronics

Enbrighten products are a subsidiary of Jasco, a leader in the design and development of home automation products and wireless accessories. Established in 1975, Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

• Manufacturer Part #: 58449
• UPC: 030878584494
• Power: 120 VAC, 60 Hz
• Frequency: 908.42/916 MHz
• Total Max Load for Both Outlets: 1800W (15A), Resistive load
• Range: Up to 150 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
• Environmental Conditions: For indoor use only.
• Operating Temperature Range: 32 to 104°F (0 to 40°C)
• Approvals: FCC, IC
• Warranty: 2-Years Limited
