Aeotec Z-Wave Plus v2 Range Extender 7, Gen7

Strengthen Your Z-Wave Network

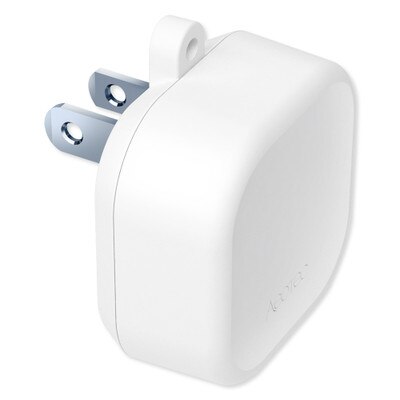

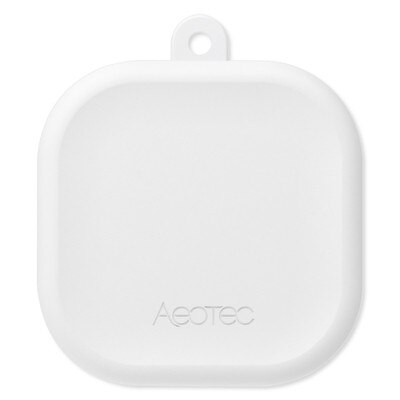

Amplify all Z-Wave signals within your Z-Wave network by plugging in the Aeotec Z-Wave Range Extender 7. The repeater improves the signal strength of Z-Wave Plus networks by adding an additional Z-Wave node to pass along commands from transmitters to their intended receivers, increasing the range and signal strength of your Z-Wave Plus network. The repeater's small size prevents it from covering up neighboring outlets, so you can boost your network without blocking a second plug.

• Boosts Z-Wave signal strength throughout your network
• Z-Wave SmartStart compatibility makes installation effortless
• Plugs into a standard power outlet

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave 700 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series, Gen7 Z-Wave, or Z-Wave Plus v2. Z-Wave 700 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Range Extender 7

NOTE: This item is a Z-Wave frequency extender; it will not work to boost your Wi-Fi signal.

Harmonizing The Digital Home With Z-Wave

Aeotec is a leading developer and manufacturer of wireless products which complement the "Digital Smart Home". Their products are designed to save energy, protect the home, and ultimately improve life. They focus on providing innovation, the highest caliber of quality, and unparalleled user experience without sacrifice.

• Manufacturer Part #: ZW189
• AC Input: 120V 60Hz, Max: 100mA
• Power Consumption: 0.6W
• Frequency: 908.42MHz
• Product Dimensions: 2.09 x 1.811 x 1.57 inches (53.2 H x 46 W x 40mm D)
• Operating temperature: 32°F to 104°F/0°C to 40°C.
• Operating distance: Up to 98 feet/30 meters indoors; Up to 492 feet/150 meters outdoors.
• Relative humidity: 8% to 80%.
• Waterproof and Dust Rating: IP20
• Smart Start: Yes
• Security Encryption: S2 Unauthenticated, S2 Authenticated
• Certifications: FCC, CE, RoHS, Z-Wave Plus
• Warranty: 1 Year

»Aeotec ZW189 Range Extender 7 User Manual (.pdf)
