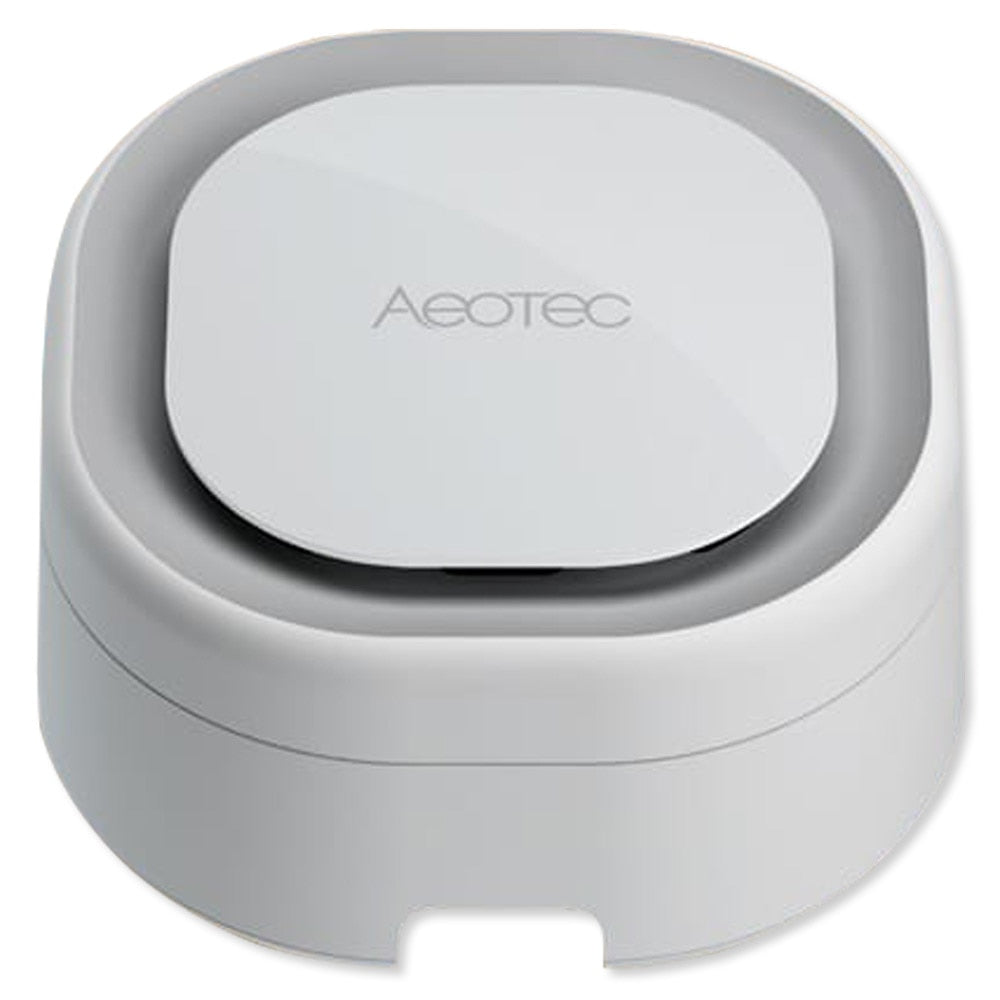

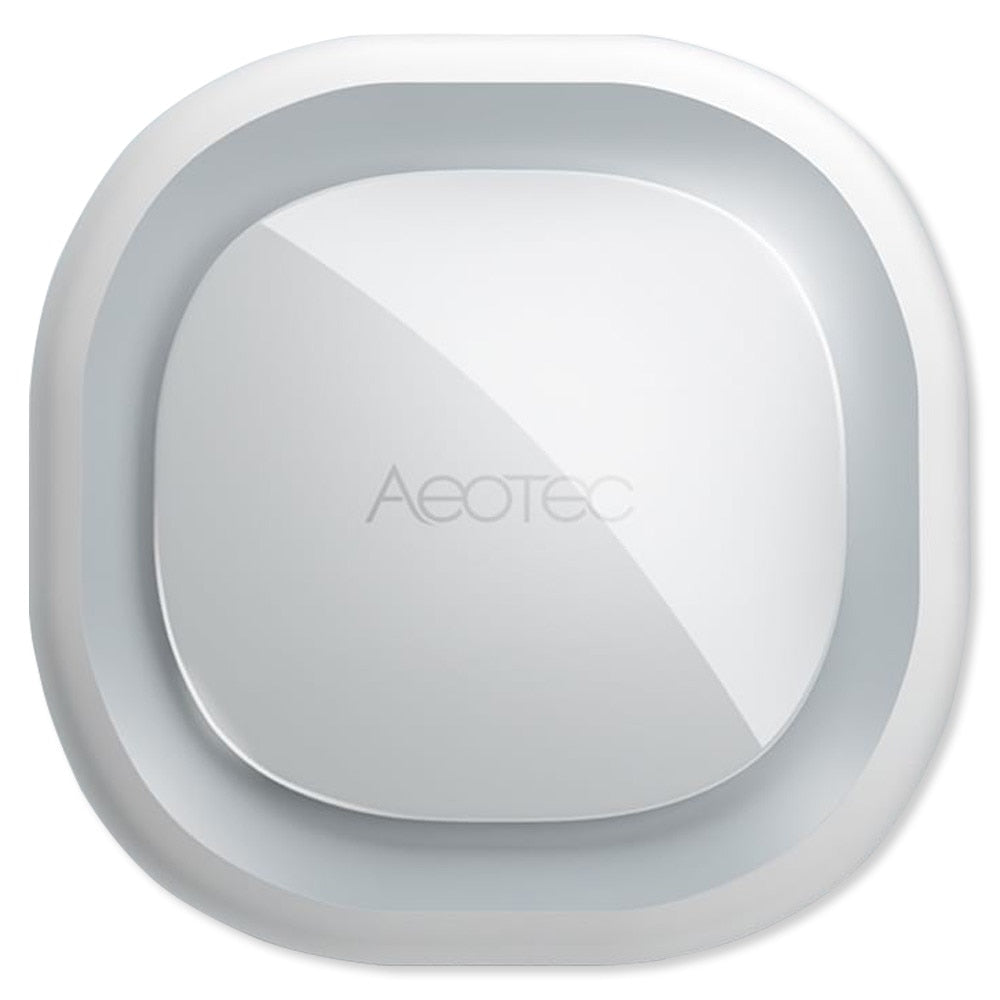

Aeotec Z-Wave Plus Siren 6, Gen5

Receive Alerts From Z-Wave Devices

Add unmissable indoor alarms to your Z-Wave system with the Aeotec Z-Wave Siren 6. This Z-Wave Plus plug-in siren emits audio and visual alerts when triggered by connected Z-Wave devices. Choose from fifteen different alarm tones to designate individual triggered sensors or devices. Each alert tone can be adjusted between 80 to 105dB, ensuring that you hear the alarm from anywhere in your home. The Aeotec Z-Wave Siren 6 also has built-in LED strobe lights to flash when the siren activates. It plugs into a standard outlet and constantly recharges a built-in backup battery. Even if the power goes out, the Aeotec Z-Wave Siren Gen 5 will remain powered.

• Set up to 15 different alert tones for different alarms
• Loud alert tones up to 105dB
• Connect with environmental sensors or doorbells to deliver alerts
• Multiple built-in strobe LED lights flash when siren activates
• Indoor wireless range up to 490 feet
• Plugs into a standard power outlet
• Constantly charges built-in backup battery

Contents

• Doorbell Chime
• Power Adapter
• Wall Mount Plate
• Double-sided tape
• Screws
• Instruction Manual

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

NOTE: For indoor use only. Do not use in damp, moist, or wet locations.

Harmonizing The Digital Home

Aeotec is a leading developer and manufacturer of wireless products which complement the "Digital Smart Home". Their products are designed to save energy, protect the home, and ultimately improve life. They focus on providing innovation, the highest caliber of quality, and unparalleled user experience without sacrifice.

• Manufacturer Part #: ZW164
• Radio Frequency: Between 868.40 & 926.3 MHz
• Wireless: Z-Wave
• Signal Repeater: Yes
• Z-Wave Plus: Yes
• Z-Wave Security: S0, S2 unauthenticated, and S2 Authenticated
• Z-Wave Hardware: ZM5101
• Z-Wave Library Type: Enhanced 232 Slave
• Z-Wave Device Type: Sound Switch
• Z-Wave Role Type: Always On Slave
• Smart Start Compatible: No
• Input Voltage:
• Adapter: 5V/2A
• Battery: 3.7V
• Backup Battery:
• PT502035
• 400mAh
• Not Detachable
• Rechargeable via power adapter
• 4 Hours total use
• Storage: 16M
• Sensors: Vibration
• Max Supported Tones: 30
• Max Supported Buttons: 3
• Max Standby Power: 0.7W.
• Max Volume: 105dB from 5cm
• Power Source: Built-in 430mAH Lithium battery
• Alarm Power: 1.7W
• Max. Standby Power: 0.7W
• Operating humidity: 8% to 80%
• Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Operating Distance: Up to 492 feet (150 meters) outdoors
• Dimensions: 2.99 x 2.99 x 1.5 in
• Warranty: 1 Year
• Certifications: Z-Wave Plus, CE, RoHS

»Aeotec ZW164 Z-Wave Siren 6 User Manual (.pdf)
