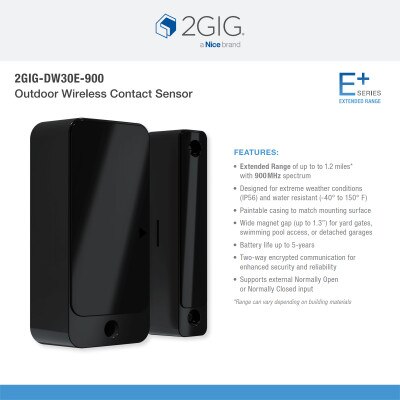

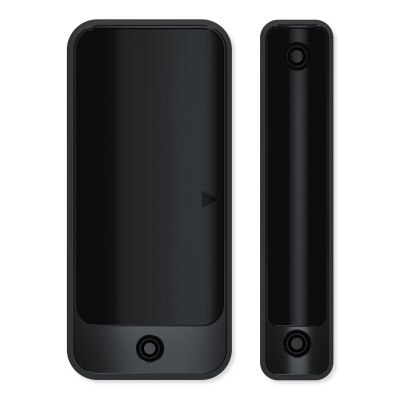

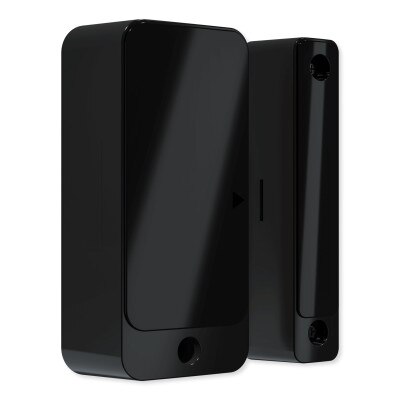

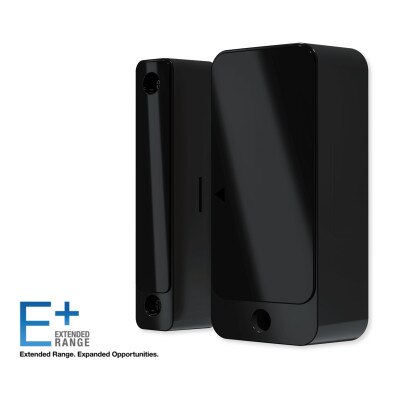

2GIG E+ Extended Range Outdoor Wireless Sensor

Outdoor Sensor With Extended Wireless Range

Add better security to areas outside your property with the 2GIG E+ Extended Range Outdoor Wireless Sensor. This outdoor wireless contact sensor is ideal for installing on gates, garages, poles, or any other open/close objects so you can receive notifications and monitor when they're opened and closed. Its unique design consists of rounded corners and straight edges ensures easy installation on curved surfaces, plus, its paintable outer casing allows the sensor to seamlessly blend with any outdoor decor This sensor is a part of 2GIG's E+ series of extended range sensors which can reach an operation range of up to 1.2 miles with secure two-way encrypted communication for added security. The sensor supports external Normally Open or Normally closed inputs, is IP56 rated for reliable weather resistance, and has a battery life of up to 8 years for long-lasting use.

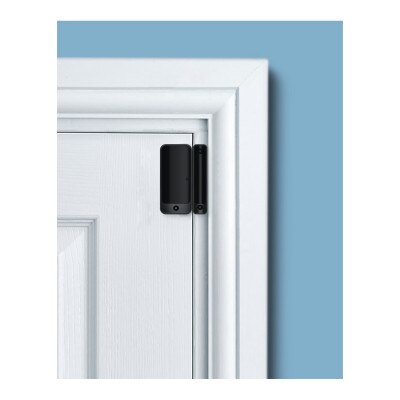

• Monitors open/close status of a outdoor gates, garage doors, poles, or other open/close objects
• Unique rounded corners and straight edges allow for easier installation on curved spaces
• Operates on the 900 MHz spectrum with an extended range of up to 1.2 miles
• Enhanced security with two-way encryption and supports Normally Open or Normally Closed inputs
• Works with 2GIG EDGE Panel (FW 1.3 or later is required)

E+ Extended Range Sensors by 2GIG

2GIG E+ Extended Range Sensors work on the 900MHz spectrum to provide expanded security coverage for larger residential and commercial properties. With sleek, modern sensor designs that complement just about any decor or aesthetic, the E+ series includes indoor and outdoor contact sensors, as well as motion, glass break, and smoke detectors. When integrated with the advanced 2GIG EDGE panel, these sensors boost security with reliable functionality and better protection at home or at the office.

Contents

• Outdoor Wireless Sensor
• Spacer
• Instruction Manual

Innovation Drives 2GIG Technology

Now a member of NICE's family brands, 2GIG offers intuitive and creative home automation and smart security technologies. Their premium security and home automation security panels, thermostats, and security sensors provide reliable and easy to use solutions to improve your home living or routine business days. 2GIG's has become a leading name in Z-Wave wireless systems, and has won numerous industry awards since 2011. With 2GIG in control, users experience cutting edge technology to make their homes smarter, safer, and more efficient. 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

• Manufacturer Part #: 2GIG-DW30E-900
• UPC: 093863149573
• Transmitter Frequency: 904MHz ~ 922MHz
• Compatibility: 2GIG EDGE Panel (FW 1.3 or later is required)
• Supervisory Interval: 70 Minutes
• External Input: Accepts NC or NO Dry Contact Devices
• Magnet Type: Rare Earth
• Magnet Gap: Up to 1.3 in
• Magnet Dimensions: (L x W x H) 4.1 x 1.0 x 1.1 in (103 x 25 x 28 mm)
• Sensor Dimensions: (L x W x H) 4.6 x 2.1 x 1.5 in (116 x 54 x 39 mm)
• Weight: .5 lbs (231 g)
• Housing Material: Paintable ABS
• Operating Temperature: -40° to 150°F (-40° to 66°C)
• Relative Humidity: 0% to 100%, Non-condensing
• Battery (Included): One CR 123A 3V or equivalent Lithium Battery
• Certification: FCC, IC, ETL, IP56

»2GIG E+ Series 2GIG-DW30E-900 Outdoor Wireless Contact Sensor Spec Sheets (.pdf)
