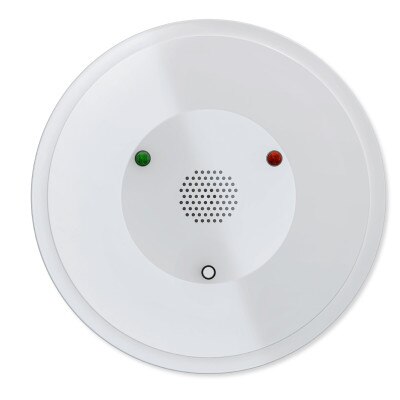

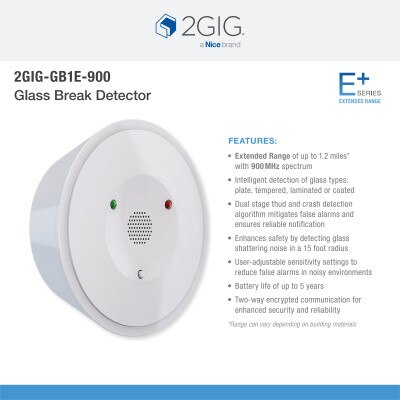

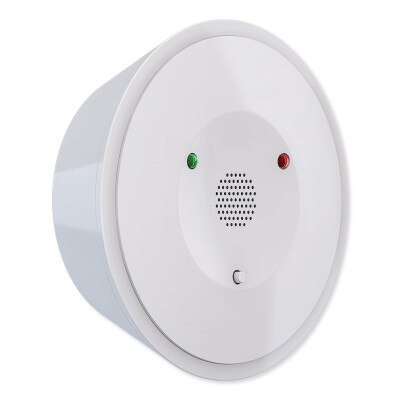

2GIG E+ Glass Break Detector with Dual State Detection

Glass Break Detection With Extended Wireless Range

Know immediately when a monitored window on your property breaks with the 2GIG E+ Glass Break Detector with Dual State Detection. This glass break detector works on a variety of windows including coated glass, laminated, plate, and tempered glass. It features dual stage thud and crash detection functionality with user-adjustable sensitivity settings, which work together to minimize false alarms in loud settings to ensure reliable notifications. It can detect the noise of shattering glass in a 15 foot radius and as part of 2GIG's E+ series of extended range sensors, it has an operation range of up to 1.2 miles. Additionally, this glass break detector has two-way encrypted communication for added security and has a battery life of up to 5 years for long-lasting use.

• Detects the sound and vibration of shattering glass
• Provides intelligent detection functionality of plate, laminated, coated, and tempered glass
• Operates on the 900 MHz spectrum with an extended range of up to 1.2 miles
• Enhanced security with two-way encryption and detects shattering glass in a 15 foot radius
• Works with 2GIG EDGE Panel (FW 1.3 or later is required)

E+ Extended Range Sensors by 2GIG

2GIG E+ Extended Range Sensors work on the 900MHz spectrum to provide expanded security coverage for larger residential and commercial properties. With sleek, modern sensor designs that complement just about any decor or aesthetic, the E+ series includes indoor and outdoor contact sensors, as well as motion, glass break, and smoke detectors. When integrated with the advanced 2GIG EDGE panel, these sensors boost security with reliable functionality and better protection at home or at the office.

Contents

• Glass Break Detector
• Instruction Manual

Innovation Drives 2GIG Technology

Now a member of NICE's family brands, 2GIG offers intuitive and creative home automation and smart security technologies. Their premium security and home automation security panels, thermostats, and security sensors provide reliable and easy to use solutions to improve your home living or routine business days. 2GIG's has become a leading name in Z-Wave wireless systems, and has won numerous industry awards since 2011. With 2GIG in control, users experience cutting edge technology to make their homes smarter, safer, and more efficient. 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

• Manufacturer Part #: 2GIG-GB1E-900
• UPC: 093863149566
• Transmitter Frequency: 904MHz ~ 922MHz
• Compatibility: 2GIG EDGE Panel (FW 1.3 or later is required)
• Supervisory Interval: 70 Minutes
• Sensor Type: Single Microphone, Dual Stage Thud, and Crash
• Maximum Horizontal Sensing Angle: 360° for Ceiling Mount Or 180° For Wall Mount
• Dimensions: 4.57(D) x 1.57(H) inches (11.6 x 3.99 cm)
• Weight: 0.35 lbs (158g)
• Housing Material: Paintable ABS
• Operating Temperature: 32°-120°F (0°-49°C)
• Relative Humidity: 5% to 90%, Non-condensing
• Batteries (Included): Two CR123A 3V or equivalent Lithium batteries
• Approved Glass Break Simulator: FG-701 Glassbreak Simulator
• Certification: ETL, FCC, IC

»2GIG E+ Series 2GIG-GB1E-900 Glass Break Detector Spec Sheet (.pdf)
