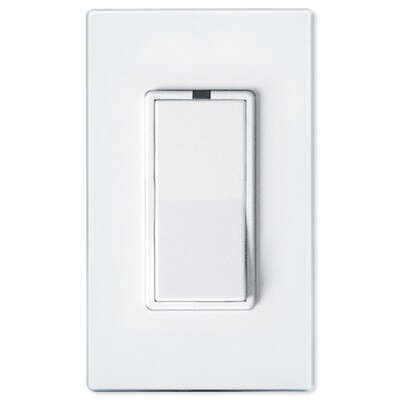

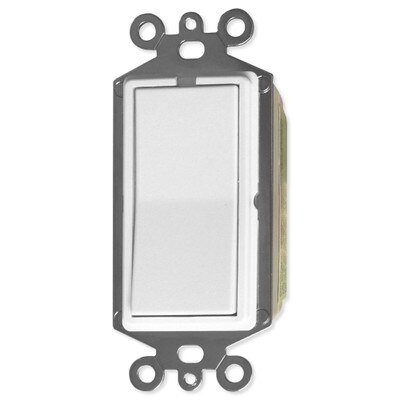

X10 PRO Companion (Slave) Switch for 3 Way Applications
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Standard Slave Switch for X10 Master Switches
The XPXPSS Momentary Slave Switch is designed to operate in conjunction with the XPXPD3, XPXPDI3 and the XPXPS3 Wall Switches. The XPXPSS Slave Switch is not a load bearing switch, it simply transmits signal over the dedicated traveler wires to the Master Switch for auxiliary control. The LED on this unit is non functional and there are no House or Unit codes to set.
3-Way Applications: When creating a three-way application, simply connect the 120VAC to the XPXPSS. Line can come from either wall box in the application and connect to the Traveler, carrying the Line to the other location. Connect the Traveler that carries the Control from Master to the Switch position on the XPXPSS Slave.
4-Way Applications: When creating a four-way application, simply parallel another XPXPSS across the same two travelers from the Slave location. Connect wires from Switch to Switch and Live to Live, using the feed thru screw terminals.
X10 Pro Technology
X10 Pro manufactures home automation products using X10 powerline carrier and wireless technologies. Have complete automated control of lights and appliances from anywhere in your home with X10 Pro.
Specifications
- Manufacturer Part #: XPSS-IW

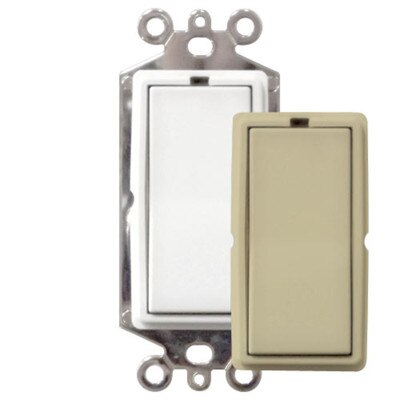

- Color: White, Ivory
- Specific Requirements: 120VAC
- Warranty: 2-Year Limited
