  • X10 PRO Inductive Dimmer Wall Switch, 500W, 120VAC

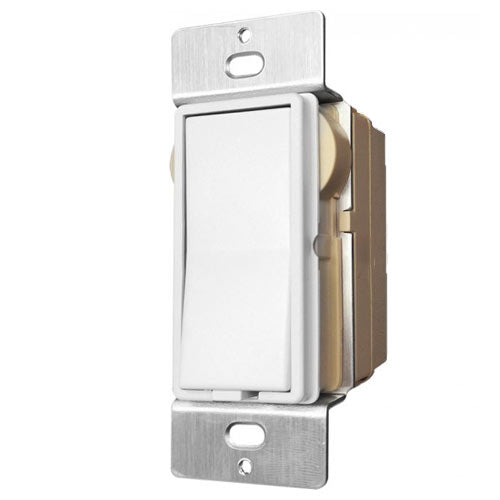

X10 PRO Inductive Dimmer Wall Switch, 500W, 120VAC

SKU: XPXPDI3IW

Order now and we'll ship same business day (if ordered before 3 pm PST).

$36.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Controls Heavy Loads

The X10 PRO Inductive Dimmer Wall Switch (500W, 120VAC) is a 3-way or 4-way master/single pole dimmer switch that controls incandescent loads rated between 40W and 500W. This switch is used in applications where control of heavier loads or inductive (magnetic) lighting and motorized fans is required.

  • Use in 3- or 4-way lighting or fan applications
  • Compatible with X10 PRO slave receivers
  • Responds to ON/OFF and DIM/BRIGHT commands
  • Rated for incandescent up to 500W
  • No feed through connectors

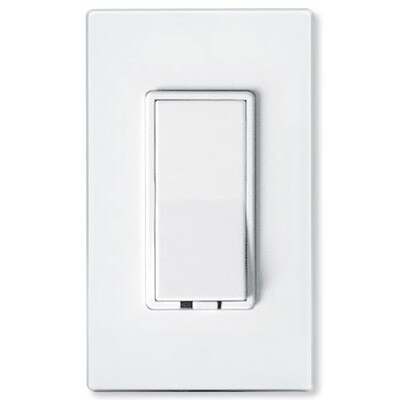

A decorative paddle controls local ON/OFF and BRIGHTEN/DIM control. A power cutoff switch directly below paddle also allows safe bulb changing.

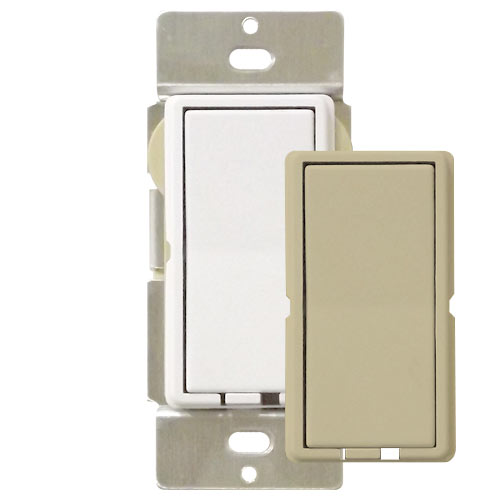

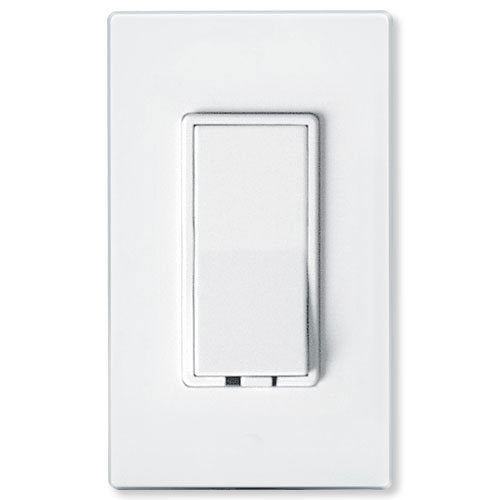

White faceplate installed. Ivory color change kit included.

NOTE: Wallplate not included. Neutral wire required for inductive dimming.

The X10 PRO Inductive Dimmer Wall Switch is an X10 Wired-In Receiver

A basic X10 system includes a Transmitter and a Receiver – both sold separately. Transmitters are control devices that send X10 signals through your home's electrical wiring to X10 Receivers. When a Receiver receives a command, it responds by turning a light, appliance or other electrical device On or Off, and sometimes Dim or Bright.

X10 Makes It So Easy To Automate Your Home!

X10 began manufacturing home automation and security products in the late 70s, establishing X10 as a smart home standard. X10 utilizes powerline technology to transmit control signals anywhere in your house over your existing electrical lines, so you can control lights and appliances throughout your home without running new wires! Have complete, automated control over lights and appliances from anywhere in your home with X10.

Specifications

  • Max. Inductive Load: 5 Amps
  • Incandescent Load Rating: 120VAC, 40W to 500W
  • X10 Control: Responds to X10 ON/OFF, ALL LIGHTS ON/ALL OFF and DIM/BRIGHT commands
  • Requires: Neutral wire
