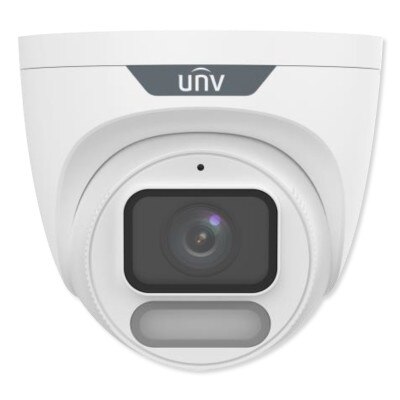

Uniview 4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera

Monitor Indoor/Outdoor Activities In 4MP Resolution

Bring enhanced security coverage to your property with the 4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera, 2.8mm Lens. This fixed dome camera captures indoor/outdoor activity in HD resolutions up to 2688p at 25fps in any lighting environment. The camera includes an IR-cut filter, 120dB Wide Dynamic Range (WDR) sensor, and Colorhunter with Wise-ISP technology to deliver full color images, even in near total darkness conditions. Monitor wide rooms or your yard with a default 110° viewing angle or narrow hallways or aisles through the camera's 9:16 Corridor Mode, which allows you to change the camera's aspect ratio from 16:9 to 9:16. A built-in microphone allows the camera to capture audio of monitored subjects. Captured footage can be saved in Ultra 265, H.265, H.264, MJPEG compression formats to optimize storage.

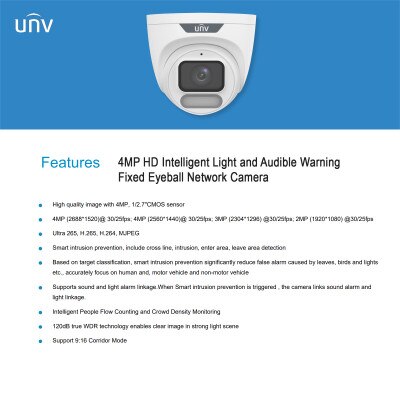

• Surveillance dome camera supports up to 4MP (2688x1520 @25/20fps) with Ultra 265, H.265, H.264, MJPEG compression
• Colorhunter with Wise ISP technology provides full color images 24/7
• 120dB Wide Dynamic Range (WDR) sensor balances lighting and ensures clear images
• Built-in microphone captures audio and allows monitored subjects to talk to users
• Supports 9:16 Corridor Mode for 9:16 aspect ratio and vertical view monitoring
• Smart detection software improves security monitoring during live surveillance or when reviewing footage
• IP67 rated for weather resistant outdoor use
• Powered via 12VDC power supply or PoE connection
• Controllable via UNV-Link mobile application, EZStation, and UNV-Link Pro software

This dome camera is compatible with smart detection software which greatly enhances the capabilities of your surveillance network. When connected to a compatible network video recorder, the camera can utilize smart monitoring and review features, such as cross line intrusion detection, motion detection, tampering alarm, and audio detection, to better detect certain subjects or criteria within the camera's field of view. Smart Detection software can be used during live surveillance or when reviewing recorded footage.

Installation Details

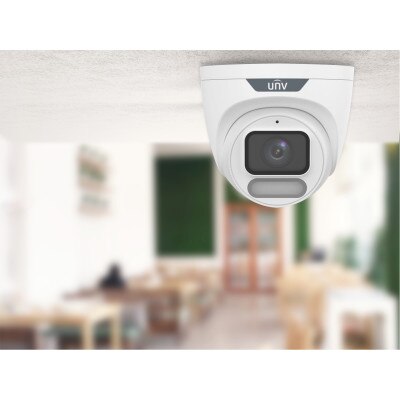

This Fixed Eyeball Network Camera is weather-resistant (IP67) and can be installed outdoors or indoors. The camera is powered by a 12VDC power supply or over Ethernet (PoE) connection, and includes a mounting template and hardware for installation. Alternative mounting options such as pole mounting, pendant mounting, junction box mounting, and more are available through mounting adapter accessories, sold separately.

UNV-Link

Take control of your Uniview cameras and NVRs with the UNV-Lin application for iOS and Android. The UNV-Link app aims to enhance the daily experience of end users by providing convenient access to live view, playback and alarms. This all-in-one app offers the power of 24/7 monitoring, intrusion alarms, and video intercom functionality.

Contents

• Eyeball Camera
• Mounting Hardware
• Manual

Notes

• This device supports viewing and management via a web browser on a PC.
• Compatible network video recorders (NVR) sold separately.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: IPC3624SR-ADF28KM-WP
• UPC: 810093329182

Camera

• Resolution: 4MP
• Sensor: 1/1.8"CMOS
• Minimum Illumination: Colour: 0.0003 lux (F1.0, AGC ON)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°
• WDR (Wide Dynamic Range): 120dB
• S/N: >56dB

Lens

• Lens Type: 2.8mm@F1.0
• Iris: Fixed F1.0
• Field of View:
• (H): 110.4°
• (V): 60.5°
• (D): 115.2°
• DORI Distance:
• Lens: 2.8 mm
• Detect: 43.4m (142.5.7ft)
• Observe: 17.4m (57.0ft)
• Recognize: 8.7m (28.5ft)
• Identify: 4.3m (14.3ft)

Illuminator

• Warm Light Range: Up to 30m (98ft) IR range
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
• Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps;
• Video Bit Rate: 128 Kbps~6144Kbps
• U-Code: Support
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Dual streams


• Auto Scene Match (ASM): Support (Only WDR)
• White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Supported
• Flip: Normal; Flip Vertical; Flip Horizontal; 180° ; 90° Clockwise; 90° Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Events

• Basic Detection: Motion detection; Ultra motion detection; Tampering alarm; Audio detection; Cross line (based on human body detection); Intrusion (based on human body detection)
• General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-Way Audio: N/A
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
• User/Host: Up to 32 Users
• 2 User Levels: Administrator, Common User
• Security: Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
• Client: UNV-Link; UNV-Link Pro; EZStation
• Web Browser:
• Plug-in Required Live View: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in Free Live View: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Audio I/O: N/A
• Alarm I/O: 1N/A
• Serial RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• Wi-Fi: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A
• EMC:
• CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
• FCC (FCC 47 CFR part15 B)
• Safety:
• CE LVD (EN 62368-1)
• UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU);
• Protection: IP67 (IEC 60529)

General

• Power:
• DC 12V±25%, PoE (IEEE 802.3af)
• Power Consumption: Max 2.8W
• Power Interface: Dia (Ø) 5.5mm coaxial power plug
• Dimensions: 129 x 118mm (Ø5.1" x 4.7")
• Weight: 0.48kg (1.06lb)
• Material: Metal
• Working Environment: -22° F to 140° F (-30° C to 60° C), Humidity: ≤ 95% RH (non-condensing)
• Storage Environment: -22° F to 140° F (-30° C to 60° C), Humidity: ≤ 95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Support
• Web Client Language: 13 Languages
• English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
• Warranty: 3 Years
