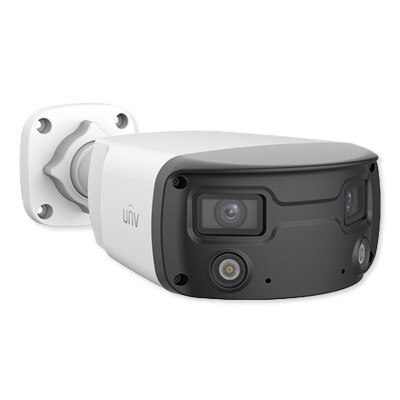

Uniview 8MP ColorHunter Omniview Series Fixed Bullet Network Camera

Install Panoramic 4K Surveillance Into Your Security System

Provide high-quality surveillance in just about any lighting environment by adding the Uniview 8MP ColorHunter Omniview Series Fixed Bullet Network Camera to your home security. This 8 megapixel IP bullet camera provides 4K video surveillance of virtually any indoor or outdoor environment during any time of day and advanced analytic software to deliver real time updates to a connected security system. This camera features two 4.0mm fixed lenses that stitch their visual feeds together to create a 180° panoramic view to monitor outdoor locations. Integrated Colorhunter technology, nighttime LEDs, and a 130db Wide Dynamic Range sensor ensures the camera captures full-color images in both day and night settings. The camera also utilizes smart analytics and events software that enhances realtime and playback operations for identifying selected targets or monitoring specific areas within the camera's field of view.

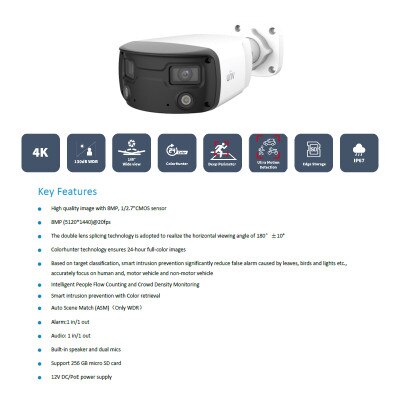

• Surveillance camera supports up to 8MP (5120 x 1440 @20fps) with H.265/H.264/MJPEG compression

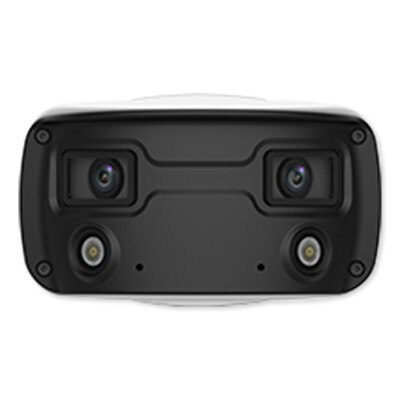

• Double lens splicing technology provides 180° horizontal viewing angle
• ColorHunter technology provides full color images in light settings down to 0.0005 lux
• Intelligent analytics and event software enhance surveillance throughout your property (requires compatible NVR or DVR)
• IP67 and IK10 rated for weather resistant outdoor use and vandal-resistant durability
• Powered via 12VDC power supply or PoE connection
• Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software

This Uniview Omniview Series Camera features intelligent and events analytic software, which help you better monitor and capture select targets or elements within the camera's field of view. Program smart intrusion prevention and detection events within the Uniview web dashboard to trigger security alerts or alarms when select criteria are met, such as general motion detection, line crossing or area exiting detection, crowd density, and more. This Uniview camera also includes two built-in microphones and a speaker to allow conversations with monitored subjects. A compatible NVR or DVR is required to utilize intelligent analytic software, sold separately.

Installation Details

This IP Panoramic Camera is weather-resistant (IP67), vandal-resistant (IK10), and can be installed outdoors or indoors. The camera is powered by a 12VDC power supply or over Ethernet (PoE) connection, and includes a mounting template and hardware for installation. Alternative mounting options such as pole mounting, 360° bullet mounting, and more are available through mounting adapter accessories, sold separately.

UNV-Link

Take control of your Uniview cameras and NVRs with the UNV-Lin application for iOS and Android. The UNV-Link app aims to enhance the daily experience of end users by providing convenient access to live view, playback and alarms. This all-in-one app offers the power of 24/7 monitoring, intrusion alarms, and video intercom functionality.

Contents

• Camera
• Mounting Hardware
• Manual

Notes

• This device supports viewing and management via a web browser on a PC.
• Analytics compatible network video recorders (NVR) sold separately.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: IPC2K28SE-ADF40KMC-WL-I0
• UPC: N/A

Camera

• Sensor: 1/2.7"CMOS
• Minimum Illumination: Color: 0.01 lux (F2.0, AGC ON)
• Shutter: Auto/Manual, 1 to 1/100000s
• Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
• WDR: 130dB
• S/N: >52dB

Lens

• Lens: 2 x 4.0mm@F1.0
• Iris: Fixed
• Field of View:
• (H): 180° ±10°
• (V): 47.41°
• (O): 180.13° ±10°

DORI

• DORI Distance:
• Lens: 4.0 mm
• Detect: 90m (259.3ft
• Observe: 36m (118.1ft)
• Recognize: 18m (59.1ft)
• Identify: 9m (29.5fft)

Illuminator

• LED Distance: Up to 30m (98ft)
• Wavelength: 850nm
• LED On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
• Main Stream: 8MP (5120 x 1440), Max 20fps
• Sub Stream: 2560 x 720, Max 20fps
• Video Bit Rate: 128 Kbps~16Mbps
• U-Code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Double streams


• Auto Scene Match (ASM): Support （Only WDR
• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart Illumination: Support
• Flip: N/A
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Intelligent

• Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• Statistical Analysis: People counting, support people flow counting and crowd density monitoring
• Attribute Collection: SIP with color retrieval

Events

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
• General Function: Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Two-way Audio: Support
• Suppression: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users.
• 3 User Levels: Administrator and Common User and Operator
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client:
• EZStation
• EZView
• EZLive
• Web Browser:
• Plug-in Required Live View: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in Free Live View: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Audio I/O: Input: impedance 35kΩ; amplitude 2V [p-p]
• Alarm I/O: Output: impedance 600Ω; amplitude 2V [p-p]
• Built-in Mic: Built-in two mics
• Built-in Speaker: Support
• RS485: N/A
• Wi-Fi: N/A
• Network: 1 RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A
• Certifications:
• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN50130)
• FCC: (FCC 47 CFR part15 B)
• Safety: CE LVD (EN 62368-1)
• UL/CUL: (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
• Protection: IP67, IK10

General

• Power:
• DC 12V ±25%, PoE (IEEE 802.3af)
• Power Consumption: Max 13W
• Power Interface: 5.5mm coaxial power plug

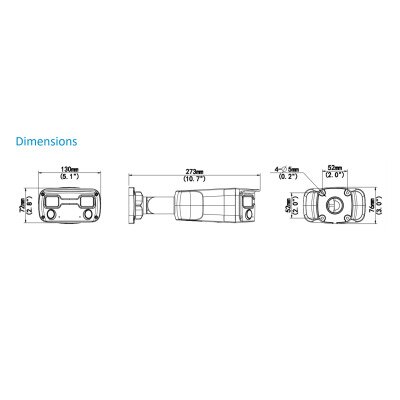

• Dimensions: 273 L x 130 W x 76mm H (10.7" x 5.1" x 3.0")
• Weight: 0.96kg (2.12lb)
• Material: Metal
• Working Environment: -22°F to 140°F (-30°C to 60°C)
• Working Humidity: ≤95% RH (non-condensing)
• Storage Environment: -22°F to 140°F (-30°C to 60°C)
• Storage Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Support
• Web Client Language: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
• Warranty: 3 Year
