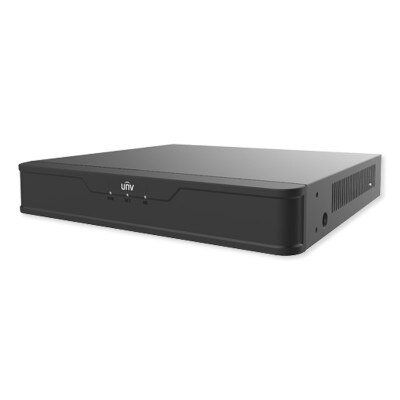

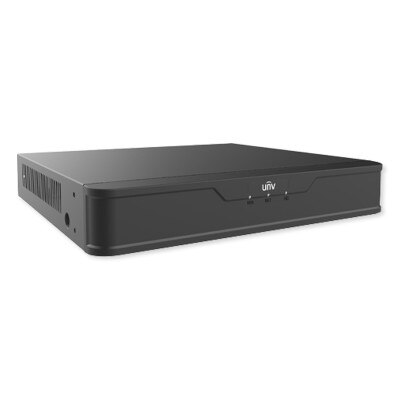

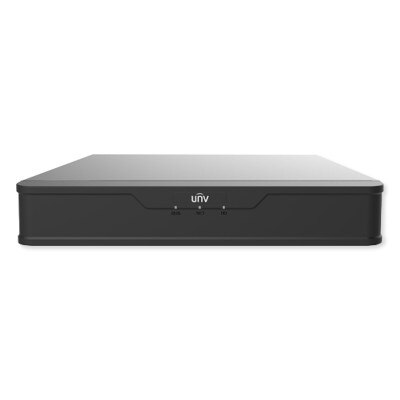

Uniview Prime Series 8-Input 4K Network Video Recorder

Plug & Play Surveillance with Up to 8 IP Security Cameras

Record and review footage captured by your security cameras with the Uniview Prime Series 8-Input 4K Network Video Recorder. This network video recorder (NVR) records surveillance footage captured from up to 8 compatible Power over Ethernet IP security cameras in resolutions between 480p and 4K. The NVR can display live or recorded footage via HDMI or VGA outputs to up to 8 channels. If connected cameras have built-in microphones the NVR can also record audio or allow for two-way communication via an RCA compatible connection. The NVR offers advanced features to improve the capabilities of your surveillance network like Smart Video Content Analysis (VCA) and state of the art video compression and data encryption to maximize the amount of stored footage and protection from unauthorized access.

• Network Video Recorder records and replays captured footage in up to Full 4K (4800 x 2688) resolution at 30 fps
• Plug-and-play PoE with 8 compatible IP cameras
• Supports 3rd party cameras compliant with ONVIF and RTSP protocols
• Supports Ultra 265, H.265, and H.264 compression to store up to 16TB of footage
• Smart Video Content Analysis (VCA) offers intelligent monitoring of live and recorded footage that triggers alerts when selected criteria are met within a camera's field of view such as detected faces or motion, intruded areas and more
• Sends alerts to your mobile device or connected security system when a camera malfunctions, hard drive space is low, hacking is detected, and other abnormal events occur
• Supports 38 languages for international usage

The NVR records footage captured by up to 8 cameras between resolutions of CIF (352 x 288) and 4K (4800 x 2688) at 30fps, using 80Mbps of bandwidth. It can output footage across 8 channels using 64Mbps of bandwidth. The NVR supports HDMI outputs at 4K resolution @ 30Hz via HDMI connection and VGA outputs at 1080p @ 60Hz.

This NVR supports Smart Video Content Analysis (VCA) software which greatly enhances the capabilities of your surveillance network with intelligent monitoring of captured footage for specific criteria, such as subjects moving into or out of certain areas, or detecting specific faces or vehicles. Smart Video Content Analysis software can be used to monitor both live recording or reviewing saved footage for specialized surveillance tasks. When a compatible Uniview Analytic camera is connected to the NVR, you can configure the camera's settings and any VCA functions from the Uniview web management portal, such as drawing a line or box across a specific area of the camera's field of view recording in order to monitor for specific criteria within the selected area.

Installation Details

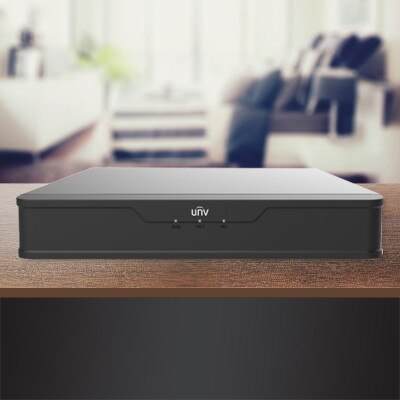

The NVR can be placed on a tabletop or rack mounted. Connect any IP cameras to the recorder with ethernet cables. Once the connections are set up, use the tools to quickly set up your surveillance system. The NVR can be used to set up a new surveillance network, replace an older NVR, or connect to an existing surveillance network through a SATA port to expand the size of your surveillance network.

The 8-Channel 4K NVR connects to the Internet to provide remote management and access to the system and enables you to playback footage, adjust settings, and monitor connected cameras from any Internet enabled device. Cameras can auto-enroll into the NVR over built-in PoE+ connections.

Contents

• NVR Unit
• Power Cable
• Ethernet Cable
• Quick Start Guide

Notes

• Hard drives not covered by 3-year warranty.
• USB devices not included.
• Mounting equipment sold separately.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: NVR501-08B-P8
• UPC: N/A
• Warranty: 3-Year; Hard drives not covered

Decoding

• Decoding Format: Ultra 265, H.265, H.264
• Decoding Capability:
• Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30
• H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30
• Audio Compression: G.711A, G.711U

Network

• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 64 Mbps
• Remote Users: 128
• Protocols: TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; IPv6
• Browser (Plugin): Windows: IE(IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)

Audio / Video Output

• HDMI Output: HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• VGA Output: VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• RCA Audio Output: 1‑ch
• Live View Display: NVR501‑08B‑P8:1/4/6/8/9
• Corridor Mode Screen: NVR501‑08B‑P8:3/4/5/7/9

Audio / Video Input

• IP Video Input: 8‑ch
• RCA Audio Input: 1‑ch

Two-Way Audio

• Two-Way Audio: 1‑ch, RCA(Using the audio input and output)

Snapshot

• FTP/Schedule/EventSnapshot: 4‑ch snapshot, up to D1 resolution

Recording

• Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF

Smart

• VCA Detection by IPC: Face Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD); People Counting(People Flow Counting, Crowd Density Monitoring)
• VCA Search: Motor Vehicle Search; Non‑Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map
• Smart by IPC: NVR501‑08B‑P8:Total 8‑ch(Face Detection, SIP, UMD)

Alarms

• General Alarms: Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection
• Alert Alarms: IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal

GUI Language

• 38 Languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

• SATA: 1 SATA Interface
• Capacity: Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size)

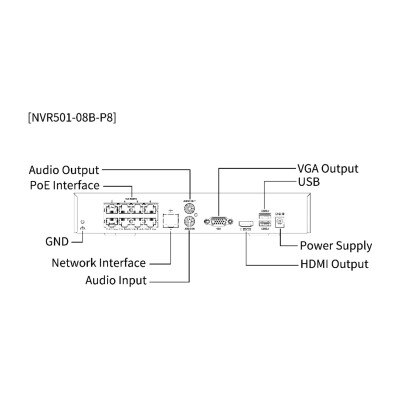

External Interface

• Network Interface: 1 RJ45 10M/100M self‑adaptive Ethernet Interface
• USB: Rear panel: 1 x USB2.0, 1 x USB3.0
• RS232: N/A
• RS485: N/A
• Alarm In: N/A
• Alarm Out: N/A
• Power Supply: NVR501‑08B‑P8:DC 52V/1.8A

PoE

• Interface: NVR501‑08B‑P8:8 RJ45 10M/100M self‑adaptive Ethernet Interface
• Max Power: NVR501‑08B‑P8:Max 30W for single port, Max 75W in total
• Supported Standard: IEEE 802.3at, IEEE 802.3af

Working Environment

• Working Temperature: 14 to 131°F (‑10 to 55°C)
• Working Humidity: ≤ 90% RH (non‑condensing)
• Power Consumption (without HDD): ≤ 10W
• Dimensions:
• Weight (withoutHDD): ≤ 1.1Kg (2.43lb)
• Dimensions: 260mm x 222mm x 47mm (10.2" x 8.7" x 1.8")
• Certifications: CE; FCC; UL; RoHS; WEEE
• CE: EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
• FCC: Part 15 Subpart B
