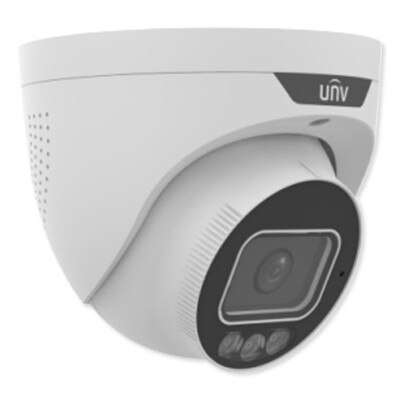

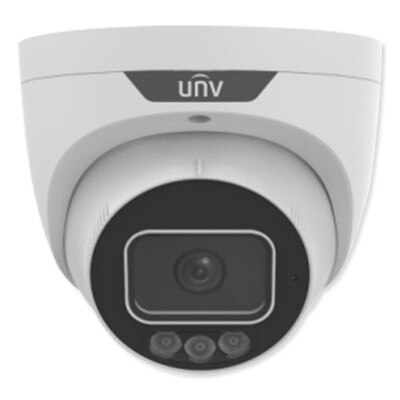

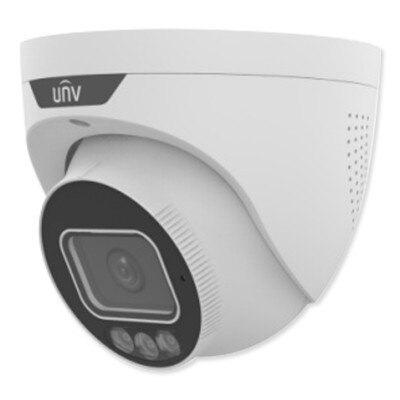

Uniview 8MP HD Eyeball Network Fixed Dome Camera, 2.8mm Lens

Monitor Indoor/Outdoor Activities In 8MP Resolution

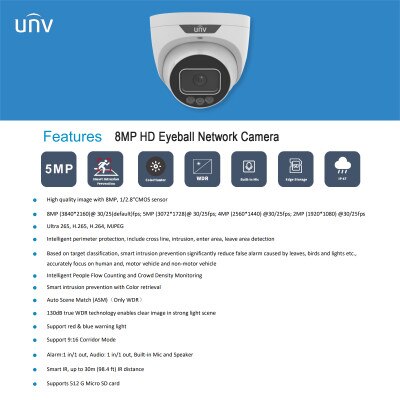

Capture HD quality footage as you monitor your property with the Uniview 8MP HD Eyeball Network Fixed Dome Camera, 2.8mm Lens. This fixed dome camera uses an 8MP (3840x2160 @ 30/25fps) 1/2.8"CMOS sensor to capture high-quality footage in both indoor or outdoor areas. It supports Ultra 265, H.265, H.264, MJPEG compression formats and features an IR-cut filter and 130dB true WDR technology to ensure optimal image quality is captured in low light environments. Monitor narrow vertical areas such as hallways or aisles through the camera's 9:16 Corridor Mode, which allows you to change the camera's aspect ratio from 16:9 to 9:16. The camera also comes with red and blue warning lights to provide an extra layer of security. When an intruder is detected the bright warning lights will flash and an audio warning can be played to inform intruders they're being watched.

• Surveillance dome camera supports up to 8MP (3840x2130 @ 30/25fps) with H.265/H.264/MJPEG compression
• Red and blue warning lights draw attention to the camera to deter unwanted intruders
• Built-in microphone and speaker allows communication with monitored subjects
• 9:16 Corridor Mode for vertical view 9:16 aspect ratio
• IP67 rated for weather resistant outdoor use
• Powered via 12VDC power supply or PoE connection
• Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software

This camera supports Smart Video Content Analysis (VCA) software which greatly enhances the capabilities of your surveillance network. When connected to a VCA compatible network video recorder, the camera can utilize smart monitoring features, such as cross line intrusion detection, motion detection, tampering alarm, and audio detection, to better detect certain subjects or criteria within the camera's field of view. VCA software can be used during live surveillance or when reviewing recorded footage.

Additionally, a built-in microphone and speaker will allow you to speak with monitored subjects so you can tell an unwanted intruder to leave or instruct delivery personnel to leave the package at the door.

Installation Details

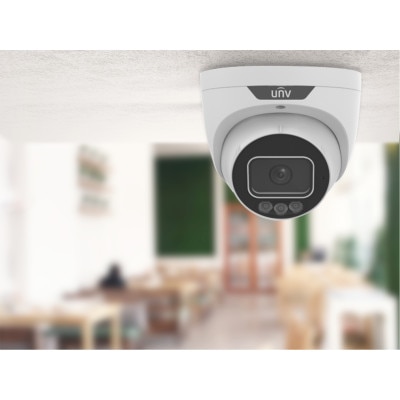

This Fixed Dome Network Camera is weather-resistant (IP67) and can be installed outdoors or indoors. The camera is powered by a 12VDC power supply or over Ethernet (PoE) connection, and includes a mounting template and hardware for installation. Alternative mounting options such as pole mounting, pendant mounting, junction box mounting, and more are available through mounting adapter accessories, sold separately.

UNV-Link

Take control of your Uniview cameras and NVRs with the UNV-Lin application for iOS and Android. The UNV-Link app aims to enhance the daily experience of end users by providing convenient access to live view, playback and alarms. This all-in-one app offers the power of 24/7 monitoring, intrusion alarms, and video intercom functionality.

Contents

• Dome Camera
• Mounting Hardware
• Manual

Notes

• This device supports viewing and management via a web browser on a PC.
• Compatible network video recorders (NVR) sold separately.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: IPC3638SS-ADF28KMC-I1
• UPC: N/A
• Warranty: 3 Year

Camera

• Sensor: 1/2.8", 8.0 megapixel, progressive scan, CMOS
• Minimum Illumination:
• Colour: 0.001 Lux (F1.0, AGC ON)
• 0Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 80°
• Rotate: 0° to 360°
• WDR: 130dB
• S/N: >56dB

Lens

• Lens Type: 2.8mm@F1.0
• Iris: Fixed
• Field of View:
• (H): 106.5°
• (V): 57.9°
• (D): 132°
• DORI Distance:
• Lens (mm): 2.8
• Detec (m) 86.9
• Observe (m): 34.8
• Recognize (m): 17.4
• Identify (m): 8.7

Illuminator

• IR Range: Up to 30m (98ft) IR range
• Warm Light Range: Up to 30m (98ft) IR range
• Wavelength: 850nm
• IR On/Off Control: Auto/Manual

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Main Stream:
• Main Stream: 8MP (3840*2160), Max 30fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps to 16 Mbps
• U-Code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple streams


• Auto Scene Match (ASM): Support (Only WDR)
• White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Supported
• Flip: Normal / Vertical / Horizontal / 180° / 90°Clockwise / 90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Intelligent

• Smart Intrusion Prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• Statistical Analysis: People counting, support people flow counting and crowd density monitoring
• Attribute Collection: SIP with color retrieval

Events

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
• General Function: Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-Way Audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 512GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 Users.
• 3 User Levels: Administrator, Common User and Operator
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: EZStation, EZView, EZLive
• Web Browser:
• Plug-in Required Live View: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in Free Live View: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Audio I/O:
• Input: Impedance 35kΩ; amplitude 2V [p-p]
• Output: Impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• RS485: N/A
• Built-in Mic: Supported
• Built-in Speaker: Supported
• Wi-Fi: N/A
• Network: 1 * RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A
• EMC:
• CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
• FCC (FCC 47 CFR part15 B)
• Safety:
• CE-LVD (EN 62368-1)
• CB (IEC 62368-1)
• UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

• Power:
• DC 12V±25%, PoE (IEEE 802.3af)
• Power Consumption: Max 10.0W

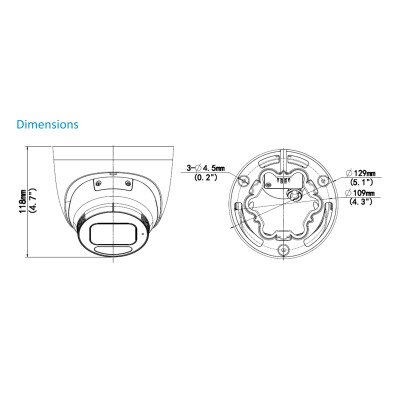

• Dimensions: ♦129 x 118mm (Ø5.1" x 4.7")
• Weight: 0.69kg (1.53lb)
• Material: Metal
• Working Environment: -22°F to 140°F (-30°C to 60°C), Humidity: ≤95% RH (non-condensing)
• Storage Environment: -22°F to 140°F (-30°C to 60°C), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Support
• Web Client Language: 20 Languages
• Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
