Simply45 ProSeries Pass Through RJ45 Modular Plug with Cap45 and Bar45 for Cat6/6a STP (50 Pack)

For Use With Shielded Twisted Pair Cat6/6a LAN Cables

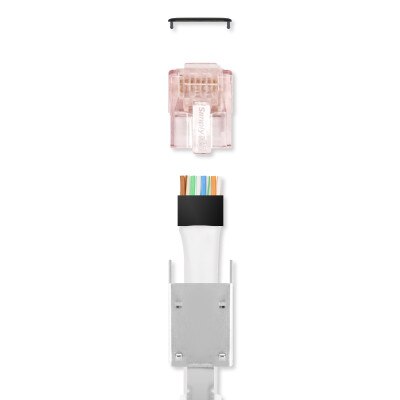

Reduce the length of untwisted wires in the plug to improve performance with the Simply45 ProSeries Pass Through RJ45 Modular Plug with Cap45 and Bar45 for Cat6/6a STP (50 Pack). This Professional Standard RJ45 Modular Plug is specifically designed for terminating shielded Cat6/6a LAN cables and features the Bar45 Load Bar, which provides better signal isolation all while reducing the effects of cross-talk within the RJ45 plug. The Bar45 load bar's design uses a Hi/Lo stagger design that allows it to sit directly on the top of the plug pins, which allows the exposed wires to be trimmed flush to the plug before inserting.

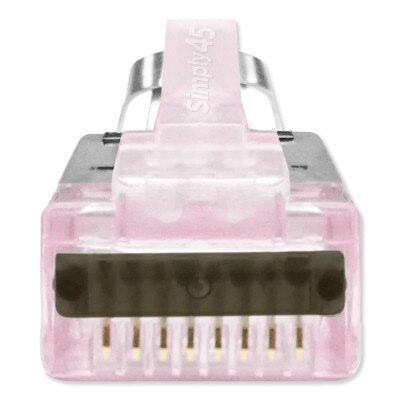

This ProSeries Pass-Through RJ45 Modular Plug also features Cap45, a unique isolation cap that covers exposed wire ends once it's snapped onto the front of the plug after termination. Its design prevents electrical shorting in the RJ45 socket that can be caused by improperly trimmed wires or in sockets of other devices that may not be fully compliant.

• Single piece, pass-through design for use with shielded Cat6/6a LAN cables (load bars included)
• Bar45 improves termination performance and simplifies installation
• 50 micro-inch 24ct gold plated 3-Prong pin design improves electrical performance and signal integrity
• Light green tint helps with identification
• UL listed and compliant: ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC
• Lifetime warranty

Unlike most pass-through RJ45 modular plugs that use a 2-prong design, the ProSeries Pass-Through RJ45 Modular Plug uses a 3-prong pin design that provides 3 points of contact with the copper wire and not 2. This enhances electrical performance and signal integrity. It's light red tint helps with identification so you'll be able to easily identify which plug is which, and this RJ45 modular plug is ideal for most Cat6 STP (shielded twisted pair) solid LAN cables (23 AWG from 0.043" – 0.047", 1.10 – 1.20mm).

Contents

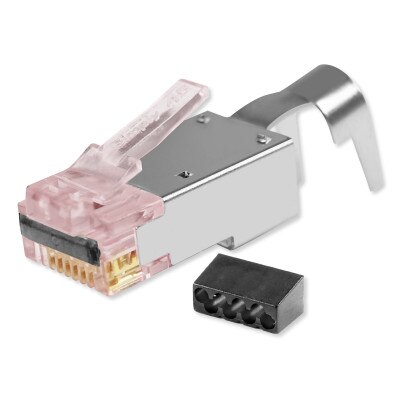

• Simply45 ProSeries Pass Through RJ45 Modular Plug with Cap45 and Bar45

RJ45 Modular Plug Innovation and Performance Solutions

As the leading brand for RJ45 modular plug innovative solutions, Simply45 has changed the industry for the better, offering high performance RJ45 modular plug solutions for commercial networking, certified systems, HDBaseT, PoE/PoH, and all professional installations. Simply 45 was the first to incorporate the 3-prong 24ct gold plated pin design with the highest quality materials to lower resistance, improve signal conductivity, and enhance electrical performance.

• Manufacturer Part #: S45-1750P
• UPC: 817777018837
• Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
• Wire Cond(s) OD: 23AWG: 1.10mm – 1.20mm (0.043" – 0.047")
• Max LAN Cable OD: 8mm (0.315")
• Supports PoE/PoH: Yes
• Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
• Flame Auto Extinguish: UL94 V0, IEC 60695-11-10
• Contact Material: Phosphor Bronze – .012" thick
• Contact Plating: Min 50 Micro-Inch Pure Gold – 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
• Plug Material: Polycarbonate
• Shielded Material: Hard Brass
• Shielded Plating: 80 Micro-Inch minimum Nickel Plating
• Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
• Conductor Type(s): Solid and Stranded
• Operating Temperature: -40° C to +70° C
• Insertion/Extraction Life: 2000 Minimum Cycles
• Contact Resistance: 20 Milli-Ohms maximum
• Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
• Compliance: UL Listed, RoHS, FCC, NEC
• Warranty: Lifetime Limited

»Simply45 S45-1750P ProSeries Pass Through RJ45 Modular Plug For Shielded LAN cables Spec Sheet (.pdf)
