Simply45 Pass-Through RJ45 Modular Plug for Cat5e Solid Sheilded (50 Pack)

SKU: GSS451550

Order now and we'll ship same business day (if ordered before 3 pm PST).

$62.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

For Use With Shielded Twisted Pair Cat5e LAN Cables

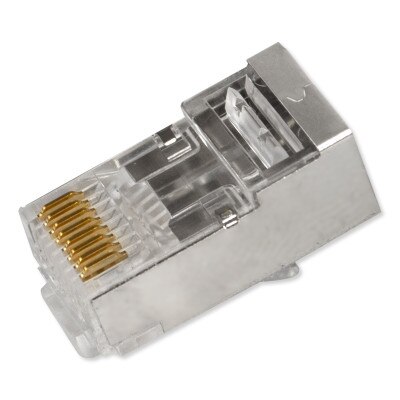

Improve the performance and stability of your wiring projects with the Simply45 Pass-Through RJ45 Modular Plug for Cat5e Solid Shielded (50 Pack). This pack of modular plugs is specifically designed for use with shielded LAN cables (load bars not required). This pass-through modular plug uses a 3-prong pin design that provides 3 points of contact with the copper wire, unlike most other pass-through RJ45 plugs that only use 2. This enhances electrical performance and signal integrity. It also has a unique internal design, allowing the LAN cable to be inserted further in the RJ45 plug to minimize the length of untwisted wires, which improves performance.

  • Single piece, shielded pass-through design for use with shielded Cat5e LAN cables (load bars not required)
  • 50 micro-inch 24ct gold plated 3-Prong pin design improves electrical performance and signal integrity
  • Light blue tint helps with identification
  • UL listed and compliant: ANSI/TIA 568.2-D, 1096-A; ISO/IEC 11801, 60603-7, 8877:1992; FCC
  • Lifetime Limited Warranty

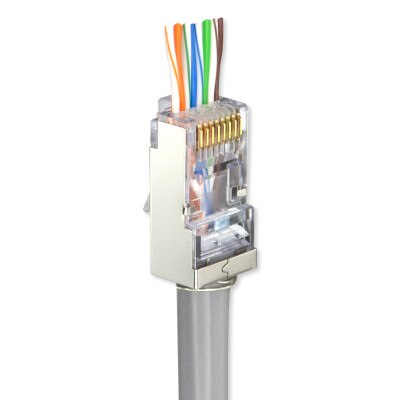

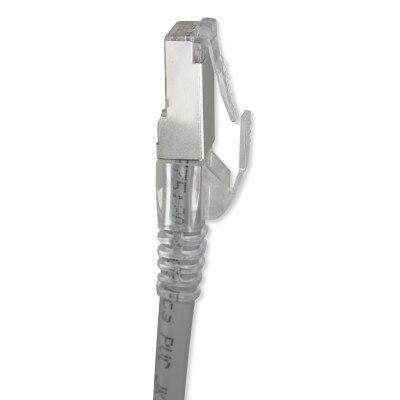

The Pass-Through Shielded RJ45 Modular Plug has a straight-line wire insert design. This makes installation simple, allowing for easy insertion of the Cat5e twisted-pair wire conductors to pass through the plug, out the front. This pass-through RJ45 modular plug is ideal for most Cat5e STP (shielded twisted pair) solid 24 AWG LAN cables up to 0.041" (1.05mm), as well as stranded shielded LAN cables used on patch cords/leads. Plus, it comes in a light blue tint to help with identification so you'll know which plug is which.

Contents

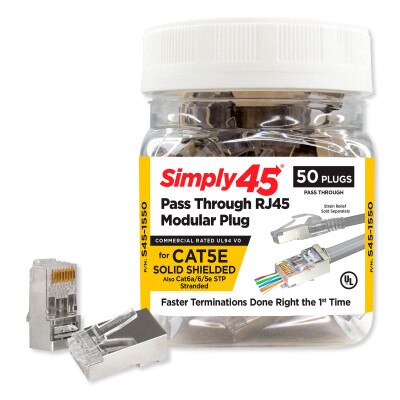

  • Shielded RJ45 Modular Plugs (50 Pack)

RJ45 Modular Plug Innovation and Performance Solutions

For over 20 years, Go Simply Connect™ has been a leading manufacturer in the networking industry for installing wire, cable, and field terminations. With innovative product lines that offer high-performing connectivity solutions, Go Simply Connect™ provides a slew of networking products that are used more and more in technology we use today as well as for future networking technologies that will keep everyone connected. Go Simply Connect™ provides products and experience to get the job done right, the first time.

Specifications

  • Manufacturer Part #: S45-1550
  • UPC: 817777016819
  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 24 AWG Solid/ 28-26 AWG Stranded: 0.95mm – 1.05mm (0.037" – 0.041")
  • Max LAN Cable OD: 6.5mm (0.255")
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Auto Extinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze – .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold – 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Shielded Material: Hard Brass
  • Shielded Plating: 80 Micro-Inch minimum Nickel Plating
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: 104° F to 158° F (-40° C to +70° C)
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms maximum
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC, TAA
  • Warranty: Lifetime Limited
