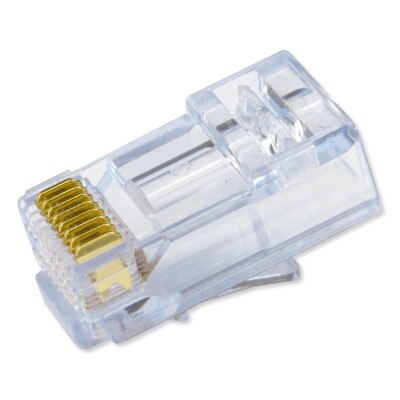

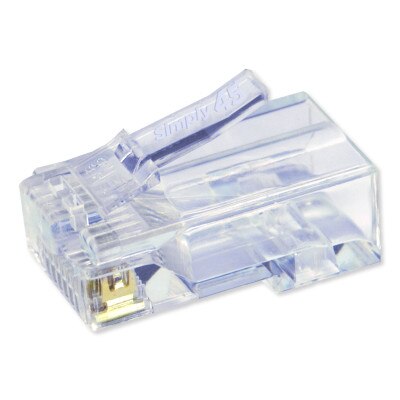

Simply45 Standard 8P8C RJ45 Modular Plug for Cat5E UTP Unshielded (100 Pack)

For Use With Unshielded Twisted Pair Cat5e LAN Cables

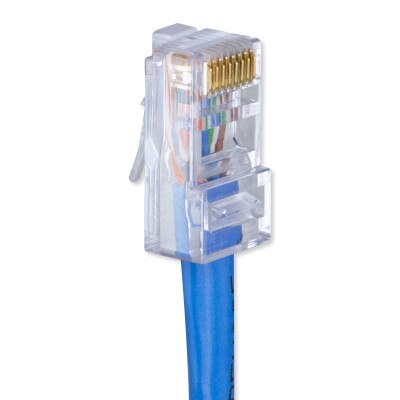

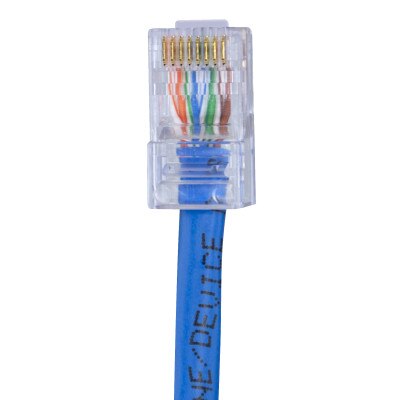

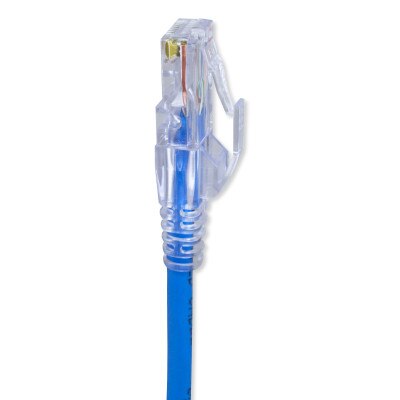

Improve the performance and stability of your wiring projects with the Simply45 Standard 8P8C RJ45 Modular Plug for Cat5E UTP Unshielded (100 Pack). This pack of modular plugs is specifically designed for use with unshielded LAN cables (load bars not required). Unlike most pass-through RJ45 modular plugs that use a 2-prong design, the Standard 8P8C RJ45 Modular Plug uses a 3-prong pin design that provides 3 points of contact with the copper wire and not 2. This enhances electrical performance and signal integrity. It also has a unique internal design, allowing the LAN cable to be inserted further in the RJ45 plug to minimize the length of untwisted wires, which improves performance. It's light blue tint helps with identification so you'll be able to easily identify which plug is which. The Simply45 Standard 8P8C RJ45 Modular Plug is perfect for most Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG with wire conductor sizes 0.037" – 0.041" (0.95mm – 1.05mm).

• Single piece, non pass-through design for use with unshielded Cat5e LAN cables (load bars not required)
• 50 micro-inch 24ct gold plated 3-Prong pin design improves electrical performance and signal integrity
• Light blue tint helps with identification
• UL listed and compliant: ANSI/TIA 568.2-D, 1096-A; ISO/IEC 11801, 60603-7, 8877:1992; FCC
• Lifetime Limited Warranty

Contents

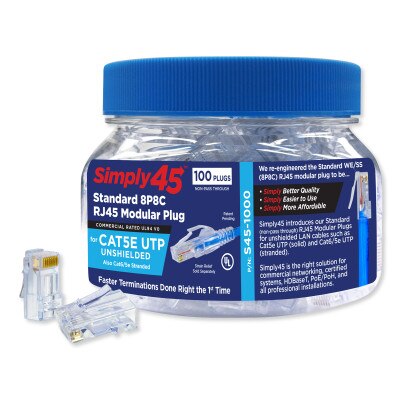

• Unshielded RJ45 Modular Plugs (100 Pack)

RJ45 Modular Plug Innovation and Performance Solutions

For over 20 years, Go Simply Connect™ has been a leading manufacturer in the networking industry for installing wire, cable, and field terminations. With innovative product lines that offer high-performing connectivity solutions, Go Simply Connect™ provides a slew of networking products that are used more and more in technology we use today as well as for future networking technologies that will keep everyone connected. Go Simply Connect™ provides products and experience to get the job done right, the first time.

• Manufacturer Part #: S45-1000
• UPC: 817777017755
• Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
• Wire Cond(s) OD: 24 AWG Solid/ 28-26 AWG Stranded: 0.037 – 0.041 inches (0.95mm – 1.05mm)
• Max LAN Cable OD: 6.4mm (0.252")
• Supports PoE/PoH: Yes
• Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
• Flame Auto Extinguish: UL 94V-0, IEC 60695-11-10
• Contact Material: Phosphor Bronze – .012" thick
• Contact Plating: Min 50 Micro-Inch Pure Gold – 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min
• Nickel Plating: Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
• Plug Material: Polycarbonate
• Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
• Conductor Type(s): Solid and Stranded
• Operating Temperature: 104° F to 158° F (-40° C to +70° C)
• Insertion/Extraction Life: 2000 Minimum Cycles
• Contact Resistance: 20 Milli-Ohms max
• Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
• Compliance: UL Listed, RoHS, FCC, NEC
• Warranty: Lifetime Limited

»Simply45 S45-1000 For Unshielded LAN cables (Cat5e Solid, Cat6/5e Stranded) Spec Sheet (.pdf)
