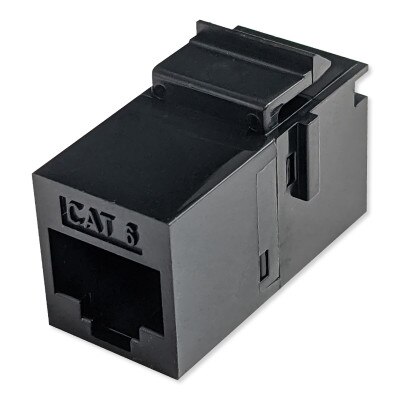

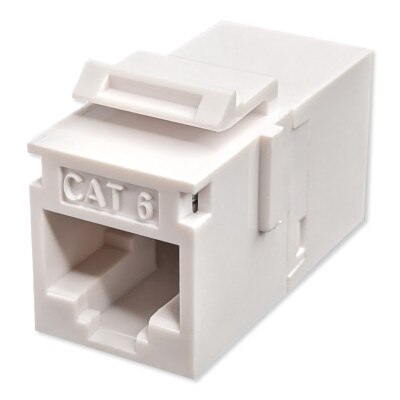

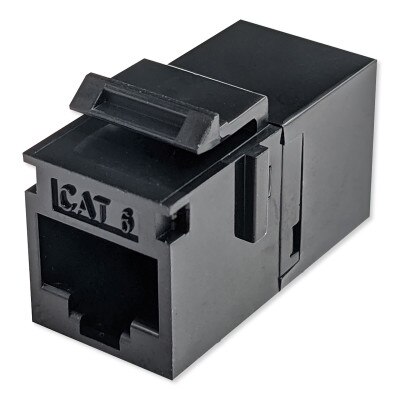

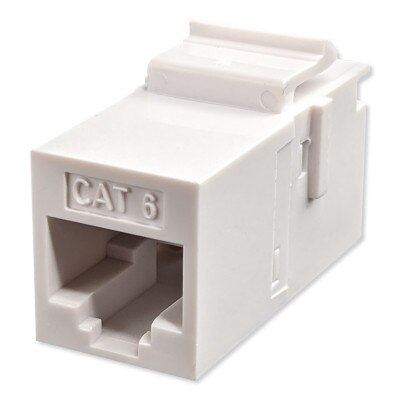

Simply45 Cat6 Unshielded Keystone Feed-Thru Coupler

Combine Two High-Speed Network Cables

Couple two high-speed network cables by installing a robust female to female in-line RJ45 Cat6 connector coupler to your patch panel, keystone wall plate, or surface mounting box with the Simply45 Cat6 Unshielded Keystone Feed-Thru Coupler. This Cat6 unshielded keystone coupler features 50-micron gold-plated contact pins and has a snap-in design, making it simple to install.

• Provides feed-through patching for patch panels, keystone wall plates, or surface mount boxes
• Snap-in design make it easy to install
• 50-micron gold plated contact pins
• Made of durable polycarbonate material
• RoHS Compliant

Contents

• Simply45 Cat6 Unshielded Keystone Feed-Thru Coupler

RJ45 Modular Plug Innovation and Performance Solutions

For over 20 years, Go Simply Connect™ has been a leading manufacturer in the networking industry for installing wire, cable, and field terminations. With innovative product lines that offer high-performing connectivity solutions, Go Simply Connect™ provides a slew of networking products that are used more and more in technology we use today as well as for future networking technologies that will keep everyone connected. Go Simply Connect™ provides products and experience to get the job done right, the first time.

• Manufacturer Part #:
• S45-3260B (Black)
• S45-3260W (White)
• UPC:
• S45-3260B: 817777019964
• S45-3260W: 817777019971
• Material: Polycarbonate
• Insulation Resistance: >= 500 MΩ
• Dielectric Withstand Voltage: 100VAC RMS 60Hz
• Contact Resistance: <= 20 mΩ
• Current Rating: 1.5A at 68°F
• Plug insertion Life: >=750 times plug in
• Contact Force: 99.2g (3.5oz) FCC Plug
• Plug Retention Force: 30lb (133n/13.3Kg)
• Standards/Compliance:
• RoHS Compliant
• ANSI/TIA 568.2-D
• ISO/IEC 11801 Class E

»Simply45 S45-3260x Cat6 Unshielded Keystone Feed-Thru Coupler Spec Sheet (.pdf)
