Simply45 ProSeries RJ45 Pass-Through Modular Plug with Cap45™ for Cat6/6a UTP Unshielded (100 Pack)

For Use With Unshielded Twisted Pair Cat6/6a LAN Cables

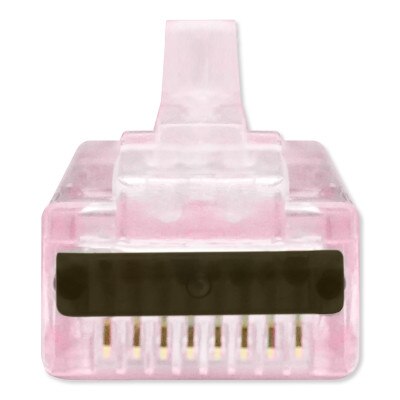

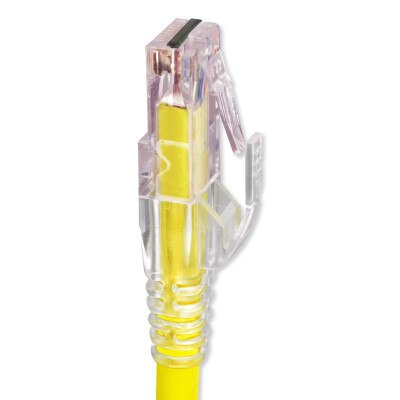

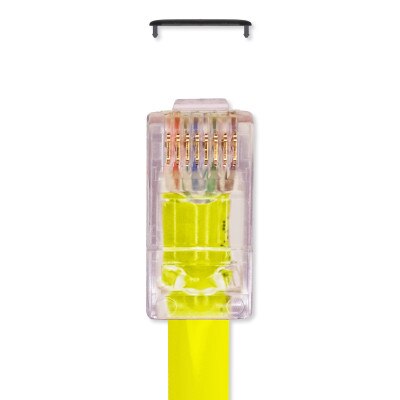

Improve the performance and stability of your wiring projects with the Simply45 ProSeries RJ45 Pass-Through Modular Plug with Cap45™ for Cat6/6a UTP Unshielded (100 Pack). This pack of unshielded modular plugs is specifically designed for terminating unshielded Cat6/6a LAN cables (load bars are not required). This ProSeries Pass-Through RJ45 Modular Plug features Cap45, which is a unique isolation cap that covers exposed wire ends once it's snapped onto the front of the plug after termination. Its design prevents electrical shorting in the RJ45 socket that can be caused by improperly trimmed wires or in sockets of other devices that may not be fully compliant.

• Single piece, non pass-through design for use with unshielded Cat6/6a LAN cables (load bars are not required)
• Cap45 prevents electrical risks associated with exposed wire ends

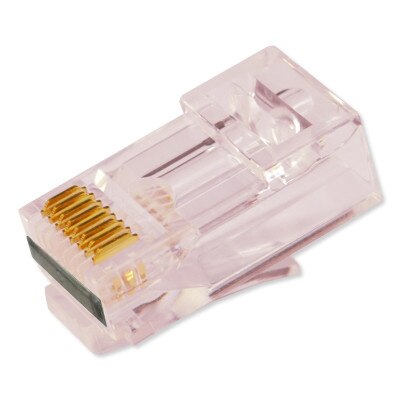

• 50 micro-inch 24ct gold plated 3-Prong pin design improves electrical performance and signal integrity

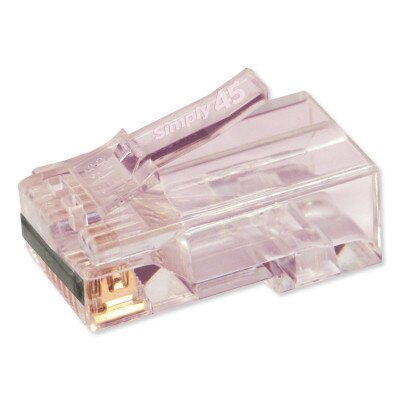

• Light red tint helps with identification
• UL listed and compliant: ANSI/TIA 568.2-D for Cat6 and Cat6a, 1096-A; ISO/IEC 11801 Class E and Ea, 60603-7, 8877:1992; FCC
• Lifetime Limited Warranty

The Simply45 ProSeries RJ45 Pass-Through Modular Plug uses a 3-prong pin design that provides 3 points of contact with the copper wire and not 2. This enhances electrical performance and signal integrity. It also has a unique internal design, allowing the LAN cable to be inserted further in the RJ45 plug to minimize the length of untwisted wires, which improves performance. It's light red tint helps with identification so you'll be able to easily identify which plug is which. This RJ45 plug is ideal for larger unshielded Cat6/6a UTP LAN cables (23 AWG Solid LAN cable wire conductor sizes 0.041" – 0.047"/1.05 – 1.2mm).

Contents

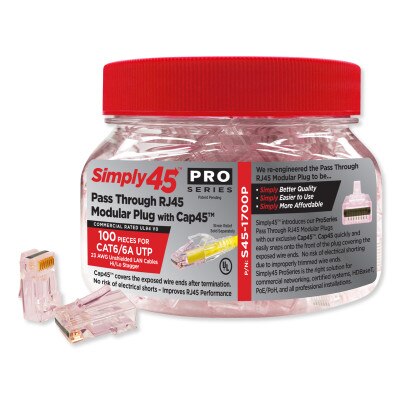

• Unshielded RJ45 Modular Plugs (100 Pack)

RJ45 Modular Plug Innovation and Performance Solutions

For over 20 years, Go Simply Connect™ has been a leading manufacturer in the networking industry for installing wire, cable, and field terminations. With innovative product lines that offer high-performing connectivity solutions, Go Simply Connect™ provides a slew of networking products that are used more and more in technology we use today as well as for future networking technologies that will keep everyone connected. Go Simply Connect™ provides products and experience to get the job done right, the first time.

• Manufacturer Part #: S45-1700P
• UPC: 817777017724
• Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
• Wire Cond(s) OD: 23AWG: 1.05mm-1.20mm (0.041"-0.047")
• Max LAN Cable OD: 7.4mm (0.291")
• Supports PoE/PoH: Yes
• Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
• Flame Auto Extinguish: UL94 V0, IEC 60695-11-10
• Contact Material: Phosphor Bronze – .012" thick
• Contact Plating: Min 50 Micro-Inch Pure Gold – 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
• Plug Material: Polycarbonate
• Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
• Conductor Type(s): Solid and Stranded
• Operating Temperature: 104° F to 158° F (-40° C to +70° C)
• Insertion/Extraction Life: 2000 Minimum Cycles
• Contact Resistance: 20 Milli-Ohms max
• Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
• Compliance: UL Listed, RoHS, FCC, NEC
• Warranty: Lifetime Limited

»Simply45 S45-1700P For 23 AWG Unshielded LAN cables (Cat6/6a) UTP Spec Sheet (.pdf)
