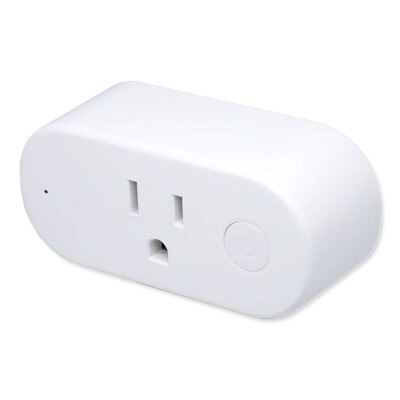

Shelly Wi-Fi Plus Smart Wall Plug

Use Wi-Fi To Add On/Off Control To Small Appliances

Wirelessly control any plug-in appliance or lamp via Wi-Fi with the Shelly Plus Wi-Fi Smart Wall Plug. This smart plug adds Wi-Fi On/Off control and energy monitoring to any device plugged into it, which gives you more convenient control over your chosen device. Using the Shelly Smart Control app, you can turn on or off the Shelly Plus Wi-Fi Smart Wall Plug and its controlled device on demand or according to a preset schedule or automated routine. If the Plus Wi-Fi Smart Wall Plug is plugged into an outlet controlled by a local switch, the switch can also turn it On and Off. This smart Wi-Fi Smart Wall Plug can handle power usage of up to 1800W @ 15A to allow you to include your TV, lampstand, portable fan, space heater or single room AC units into your Wi-Fi compatible smart home network. Additionally, the Shelly Plus Wi-Fi Smart Wall Plug is designed with surge protection and overheating safety features to keep your plugged in devices from damage caused by excess heating, voltage, current, and power output.

• Smart Wall Plug add Wi-Fi functionality and energy monitoring to a single plug-in device
• No smart hub required, but can be integrated with a Wi-Fi compatible hub for automation scenes and On/Off schedules according to preset triggers, timers, or time of day
• Supports devices using up to 1800W@15A including TVs, portable fans, space heaters, portable AC units, high wattage lamps, and more
• Monitors and records energy consumption of a plugged-in device to assist in tracking activity status and optimize energy usage
• Works with Alexa, Google Assistant, and Samsung SmartThings
• Built-in surge protection and overheat protection ensures the safety of the Plug and plugged-in device

Installation Details

The Wave Plug US can be inserted into any standard US power outlet and allows for control over a single device. The Wave Plug US will automatically attempt to locate and request inclusion into your local Wi-Fi network after it is plugged in. A power strip or extension cord should not be plugged into the Wave Plug. Once a device has been plugged in,the Wave Plug US can report its real time device status, as well as record and measure their energy consumption over time.

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.

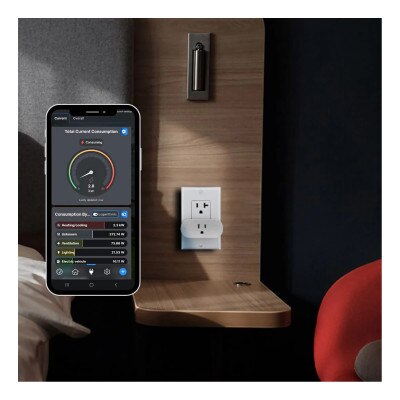

• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

• Plus Wi-Fi Smart Wall Plug
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Qubino Provides A 100% Wireless Smart Home

Shelly Qubino creates innovative and affordable smart home devices for residential and business applications. Qubino, now owned by Shelly, focuses on providing Z-Wave compatible smart home solutions. Shelly Qubino devices are among the smallest Z-Wave devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly Qubino utilizes the latest Z-Wave technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: Plus Plug US-1
• EAN: 3800235265543
• Power Supply: 120 V ±10%, 60 Hz
• Power Consumption: <1 W
• Max. Switching Voltage AC: 140 V
• Max. Switching Current AC: 15 A
• Overheating Protection: Yes
• Overcurrent Protection: Yes
• Overvoltage Protection: Yes
• Overpower Protection: Yes
• Internal-Temperature Sensor: Yes
• Voltmeter: Yes
• Ammeter: Yes
• Power and Energy Meters: Yes
• RF Band: 2400 – 2495MHz
• Max. RF Power: <20dBm
• Wi-Fi Protocol: 802.11 b/g/n
• Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
• CPU: ESP32
• Flash: 4 MB
• Webhooks (URLactions): 20 with 5 URLS per hook
• Scripting: Yes
• MQTT: Yes
• CoAP: No
• Dimensions: 38 H x 84 W x 52 Dmm / 1.5 H x 3.3 W x 2.0 D in
• Weight: 70 ±1 g / 2.47 ±0.04 oz

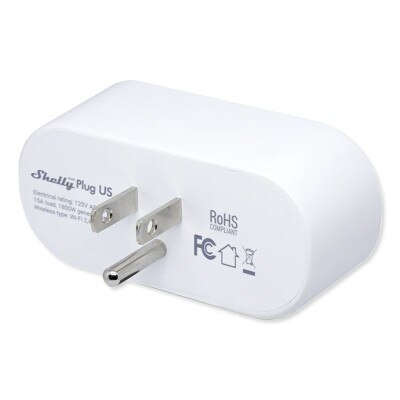

• Compatible Sockets: NEMA 5-15 (Type-B)
• Compatible Plugs: NEMA 1-15 (Type-A) and NEMA 5-15 (Type-B)
• Shell Material: Plastic
• Color: White
• Ambient Temperature: -5 to 105°F (-20 to 40°C)
• Humidity: 30% to 70% RH
• Max. Altitude: 2000 m / 6562 ft.
• Warranty: 2 Year

»Shelly Smart Wi-Fi Plug User Manual (.pdf)
