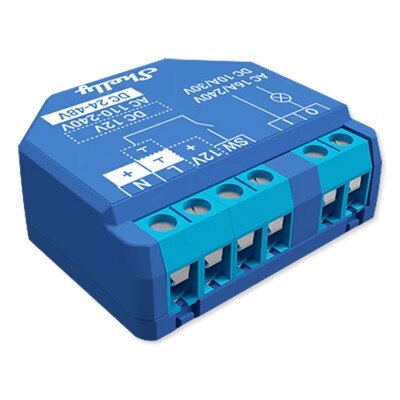

Shelly Wi-Fi Plus 1PM UL Smart Relay

Add Wi-Fi Connectivity To Connected Lights And Appliances With Power Monitoring

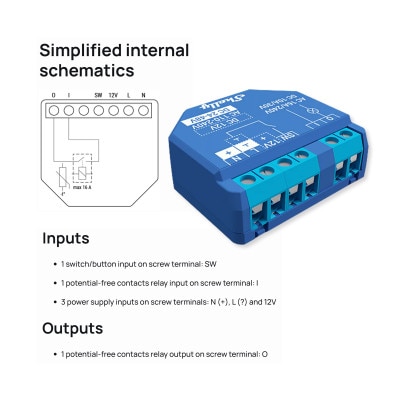

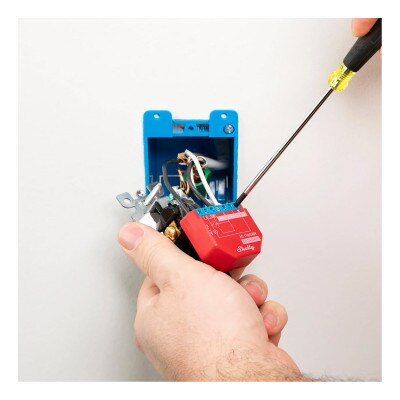

Add Wi-Fi connectivity and power monitoring to a wide range of in-wall devices by installing the Shelly Wi-Fi Plus 1PM UL Smart Relay. This Wi-Fi smart relay is installed behind a wall switch or wall outlet to add Wi-Fi remote control to lights and connected appliances, surge and overheat protection, as well as monitor and report power consumption of controlled devices. It features 1 switch/button input, 5 power supply inputs, and 1 relay output with power measurement. By monitoring power consumption you'll be able to manage energy usage to help cut electricity costs. It supports Resistive (incandescent bulbs, heating devices), Capacitive (capacitor banks, electronic equipment, motor start capacitors), and Inductive with RC Snubber loads (LED light drivers, transformers, fans, refrigerators, air-conditioners).

Use the Shelley Smart Control App (for iOS and Android), to monitor and control the Shelly Wi-Fi Plus 1PM UL and its controlled device using your smartphone or tablet. From the app you can access and analyze energy usage history from your monitored devices. The Shelly Wi-Fi Plus 1PM UL can be included into various Wi-Fi compatible home automation platforms and controlled by popular voice assistants.

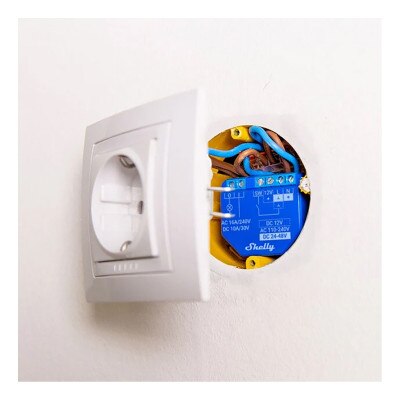

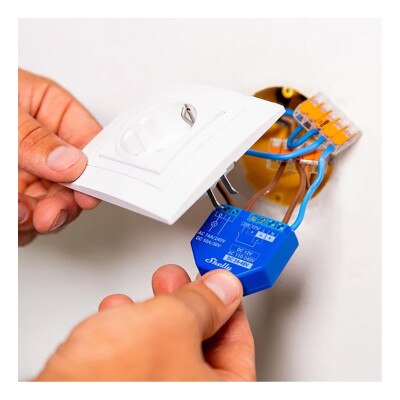

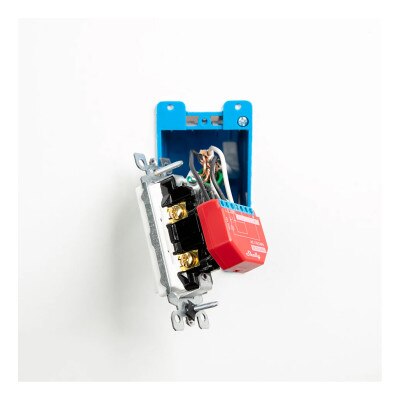

• Installs behind wall outlets, light switches, and other places with limited space to add Wi-Fi functionality
• Connects effortlessly to your Wi-Fi network and offers Bluetooth connectivity for quick set up – no smart hub required
• Ideal for lights, appliances, floor heating, and other heating appliances
• Real-time power monitoring with free cloud storage for data analysis of energy consumption
• Create custom schedules tailored to your daily routine or sync with sunrise and sunset to automatically control your lighting
• Powered by a fast ESP32 microcontroller with an enhanced API interface for improved performance
• Compatible with popular voice assistants and smart home platforms such as Alexa, Google Assistant, and Samsung SmartThings

Shelley Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelley Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

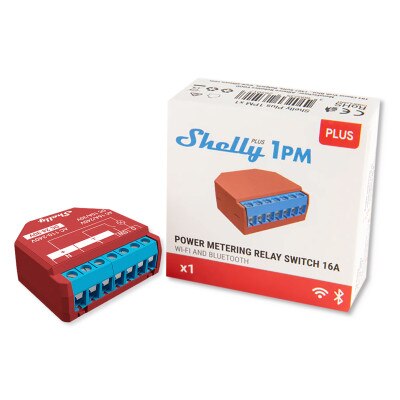

• Wi-Fi Plus 1PM UL Smart Relay
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Qubino Provides A 100% Wireless Smart Home

Shelly Qubino creates innovative and affordable smart home devices for residential and business applications. Qubino, now owned by Shelly, focuses on providing Z-Wave compatible smart home solutions. Shelly Qubino devices are among the smallest Z-Wave devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly Qubino utilizes the latest Z-Wave technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

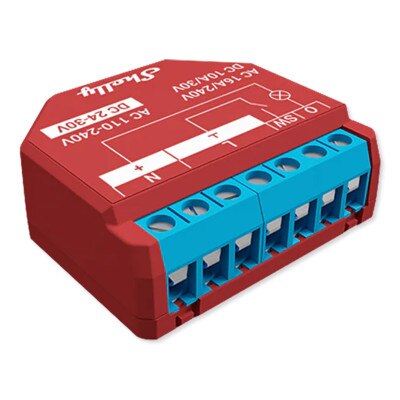

• Manufacturer Part #: Plus 1 PM-1 UL
• EAN: 3800235262016
• Power Supply: 110 – 240 VAC / 24 – 30 VDC
• Power Consumption: <1.2 W
• Max. Switching Voltage AC: 240 VAC
• Max Switching Voltage DC: 30 V
• Max. Switching Current AC: 16 A
• Max. Switching Current DC: 10 A
• Internal-Temperature Sensor: Yes
• Voltmeter (AC): Yes
• Ammeter (AC): Yes
• Wi-Fi Protocol: 802.11 b/g/n
• RF Band: 2400 – 2495 MHz
• Max. RF Power: <20 dBm
• Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
• CPU: ESP32-U4WDH
• Flash: 4 MB
• Schedules: 20
• Webhooks (URL actions): 20 with 5 URLs per hook
• MQTT: Yes
• Scripting: Yes
• CoAP: Yes
• Screw Terminals Max Torque: 0.4 Nm / 3.5 lb/in
• Conductor Cross Section: 0.5 to 1.5 mm² / 20 to 16 AWG
• Conductor Stripped Length: 5 to 6 mm / 0.20 to 0.24 in
• Mounting: Wall console
• Color: Red
• Shell Material: Plastic
• Ambient Working Temperature: -5 °F to 105 °F (-20 °C to 40 °C)
• Humidity: 30% to 70% RH
• Max Altitude: 2000 m / 6562 ft

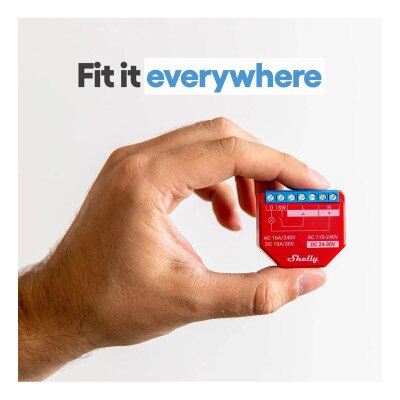

• Size (HxWxD): 1.46 x 1.11 x 1.65 ±0.63 inches (37 x 42 x 16 ±0.5 mm)
• Weight: 27 g / 0.95 oz
• Warranty: 3 Year
