Shelly Wi-Fi 1PM Mini Gen3 Smart Relay

Add Wi-Fi Connectivity To Connected Lights And Appliances

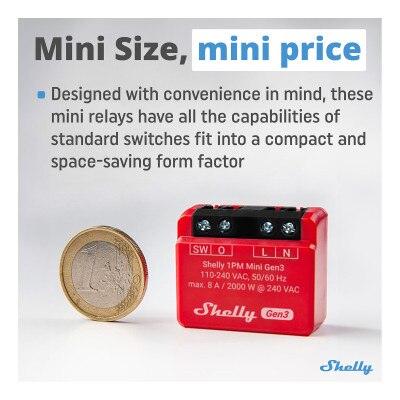

Upgrade an outlet or appliance with Wi-Fi connectivity by installing the Shelly Wi-Fi 1PM Mini Gen3 Smart Relay. This mini Wi-Fi relay is designed to be installed inside the appliance's casting or behind a wall switch or wall outlet to add Wi-Fi remote control of lights or connected appliances. It features 1 switch/button input, 2 power supply inputs, and 1 relay output with power measurement. Additionally, it can support a variety of load types including Resistive (incandescent bulbs, heating devices), Capacitive (capacitor banks, electronic equipment, motor start capacitors), and Inductive (LED light drivers, transformers, fans, refrigerators, air-conditioners). As an improved version of the Shelly Plus 1PM Mini, the Shelly 1PM Mini Gen3 is equipped with a more advanced processor and increased memory for enhanced performance.

The Shelly Wi-Fi 1PM Mini Gen3 Smart Relay also tracks power consumption of small appliances up to 8A, such as personal electronics, fans, lighting fixtures, and other kitchen devices. By monitoring power consumption you'll be able to manage energy usage to help cut electricity costs; plus, it provides free online data storage so you can access and analyze history information on electrical usage of your monitored devices. Using the Shelly Smart Control App (for iOS and Android), the Shelly 1PM Mini Gen3 can be accessed, controlled, and monitored using your smartphone or tablet, and it's compatible with various home automation platforms and voice assistants such as Amazon Alexa and Google Assistant for easy voice commands.

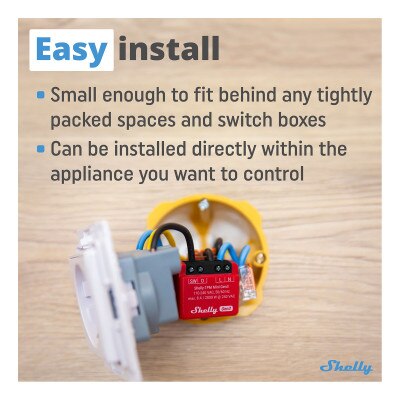

• Installs behind wall outlets, light switches, or in the casting of an appliance to add Wi-Fi functionality
• Easily integrates into your Wi-Fi network and works as a Wi-Fi extender – no smart hub required
• Real-time power monitoring with free cloud storage for data analysis of energy consumption
• Bluetooth connectivity for easy inclusion or can be used as a Bluetooth gateway
• Equipped with an upgraded processor and expanded flash memory for improved performance
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

• Wi-Fi 1PM Mini Gen3 Smart Relay
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Qubino Provides A 100% Wireless Smart Home

Shelly Qubino creates innovative and affordable smart home devices for residential and business applications. Qubino, now owned by Shelly, focuses on providing Z-Wave compatible smart home solutions. Shelly Qubino devices are among the smallest Z-Wave devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly Qubino utilizes the latest Z-Wave technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: Gen 3 1PM Mini
• EAN: 3800235261590
• Power Supply: 110 – 240 VAC
• Relay: NO contact, 1-pole, µ contact
• Power Consumption: <1.2 W
• External Protection: Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
• Max. Switching Voltage: 240 VAC
• Max. Switching Power: 2000 W
• Max. Switching Current: A/240 VAC
• Power Measurement: Yes
• Voltage Protection/Cutoff: Yes
• Current Protection/Cutoff: Yes
• Max Power Protection/Cutoff: Yes
• Internal-Temperature Sensor: Yes
• Wi-Fi Protocol: 802.11 b/g/n
• RF Band: 2401 – 2495 ÃŒHz
• Max. RF Power: <20 dBm
• Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
• Bluetooth Protocol: 4.2
• RF Band: 2400 – 2483.5 MHz
• Max. RF Power: <4 dBm
• Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
• CPU: ESP-Shelly-C38F
• Flash: 8 MB
• Schedules: 20
• Webhooks (URL actions): 20 with 5 URLs per hook
• MQTT: Yes
• Scripting: Yes
• UDP: Yes
• Advanced Schedules: Yes
• KVS (Key-Value Store): Yes
• Screw Terminals Max Torque: 0.4 Nm / 3.5 lb/in
• Conductor Cross Section: 0.2 to 2.5 mm? / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
• Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in
• Mounting: Wall box
• Terminal Color: Black
• Shell Material: Plastic
• Shell Color: Red, C-3%; M-100%; Y-70%; K-12%
• Ambient Working Temperature: -20 °C to 40 °C / -5 °F to 105 °F
• Humidity: 30% to 70% RH
• Max Altitude: 2000 m / 6562 ft
• Size (HxWxD): 1.34 x 1.11 x 0.63 ±0.02 inches (29x34x16 ±0.5 mm)
• Weight: 18 g/0.63 oz
• Warranty: 3 Year

»Shelly 1PM Mini Gen3 Wi-Fi Smart Switch with Power Measurement Functionality User Manual (.pdf)
