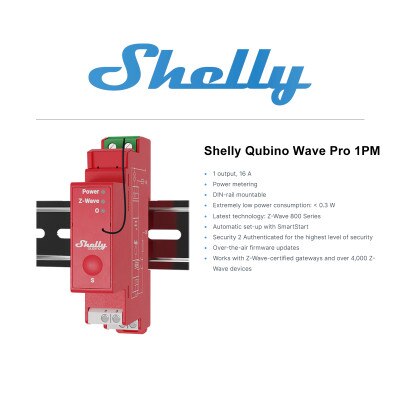

Shelly Qubino Wave Pro 1PM Channel Z-Wave 800 Relay Module with Power Monitoring
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Add Z-Wave Automation and Energy Monitoring to Switch or Outlet
Upgrade any existing switch or outlet to include Z-Wave functionality with the Shelly Qubino Wave Pro 1PM Channel Z-Wave 800 Relay Module with Power Monitoring! This dry contact relay module mounts inside your breaker box to add Z-Wave automated functionality and remote On/Off control to a single electrical load in your home or business. The Wave Pro 1PM supports up to 16A to enable Z-Wave automated control over appliances or computers plugged into a single outlet, or a room full of lights controlled by an On/Off switch. Once installed, the Wave Pro 1PM will automatically connect to your existing Z-Wave network and enable your connected device to respond to remote commands and automated scenes, as well as monitor energy consumption of devices connected to your selected switch or outlet. The Wave Pro 1PM can be remotely controlled and included in Z-Wave automated scenes from the Shelly Smart Control app or your connected Z-Wave hub's app. The Wave Pro 1PM utilizes Z-Wave 800 software to provide reliable and long lasting performance, increased encryption protection, and easier setup into Z-Wave networks.
- DIN-mountable Z-Wave 800 module adds On/Off commands to a single dry contact device
- Supports loads using up to 16A connected to the controlled switch or outlet
- Add a room full of overhead lights or appliances like computers, TVs, space heaters, or portable ACs to your Z-Wave network
- Monitors and records energy consumption of devices controlled by connected switch or outlet to track activity status and optimize energy usage
- Overpower and overvoltage protection automatically shuts off the Pro 1PM before voltage peaks and high power consumption damage the Pro 1PM or its connected devices or wiring
- Built-in overheating protection shuts down the Pro 1PM when unsafe or rapid changes in temperature are detected nearby
- Can be included in Z-Wave automated scenes and schedules to turn On/Off according to preset triggers, timers, or time of day
- Standard Z-Wave mesh protocol range reaches up to 130 feet (40m) line of sight to the nearest Z-Wave receiver or hub
- Z-Wave 800 software provide increased power, longer range, faster transmissions, and improved security
- Z-Wave Smart Start technology pairs new devices quickly and S2 framework ensures enhanced security
Shelly Smart Control App – Everything at Home Connected
Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.
- Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
- Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
- Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
- Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
- Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
- Works with Alexa: Shelly Smart Control is natively compatible with Amazon Alexa.
Installation Details

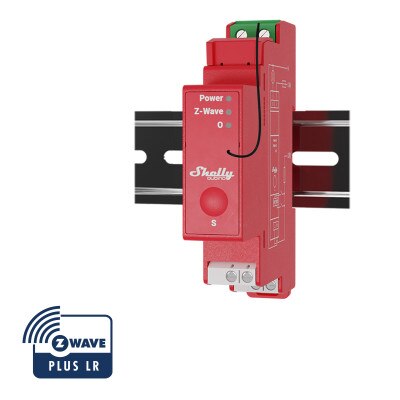

The Shelly Qubino Wave Pro 1PM Channel Z-Wave 800 Relay Module with Power Monitoring fits on a DIN rail inside a breaker box, and professional installation is required. A neutral wire is required for installation. The Wave Pro 1PM will automatically attempt to locate and request inclusion into your local Z-Wave network after it is installed.
Z-Wave Plus v3 Certification
Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 1300ft/400m, three layers of encryption, faster operation, and longer battery life.
Contents
- Wave Pro 1PM
- DSK Label
- User Manual
Notes
- Z-Wave compatible gateway or system hub required, sold separately.
- A neutral wire is required for installation.
Shelly Qubino Provides A 100% Wireless Smart Home
Shelly Qubino creates innovative and affordable smart home devices for residential and business applications. Qubino, now owned by Shelly, focuses on providing Z-Wave compatible smart home solutions. Shelly Qubino devices are among the smallest Z-Wave devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly Qubino utilizes the latest Z-Wave technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.
Specifications
- Manufacturer Part #: Wave Pro 1PM
- Power Supply: 110-240 V AC, 50/60 Hz
- Power Consumption: < 0.3W
- Power Measurement (W): Yes
- Max. Switching Voltage AC: 240 V
- Max. Switching Current AC: 16 A
- Max. Switching Voltage DC: N/A
- Max. Switching Current DC: N/A
- Overheating Protection: Yes
- Overload Protection: Yes
- Overvoltage Protection: Yes
- Distance: Up to 40 m indoors (131 ft.) (depends on local condition)
- Z-Wave Repeater: Yes
- CPU: Z-Wave S800
- Z-Wave Frequency Bands: 908.42 MHz
- Maximum Radio Frequency Power Transmitted In Frequency Band(s): < 25 mW
- Size (H x W x D): 94 x 19 x 69 ±0.5 mm / 3.70 x 0.75 x 2.71 ±0.02 in
- Weight: 61 g / 2.15 oz.
- Mounting: DIN Rail
- Screw Terminals Max. Torque: 0.4 Nm / 3.54 lbin
- Conductor Cross Section: 0.5 to 2.5 mm2 / 20 to 14 AWG (green connector) 0.5 to 1.5 mm2 / 20 to 16 AWG (white connectors)
- Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors)
- Shell Material: Plastic
- Color: Red
- Ambient Temperature: -20°C to 40°C / -5°F to 105°F
- Humidity: 30% to 70% RH
- Max. Altitude: 2000 m / 6562 ft.
- Warranty: 2 Year
