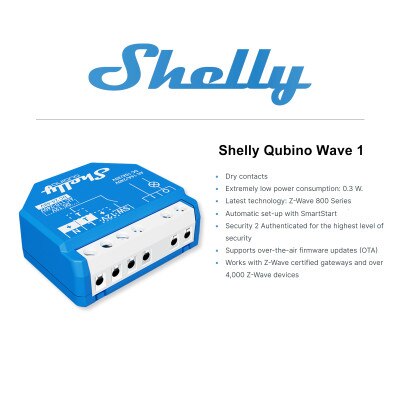

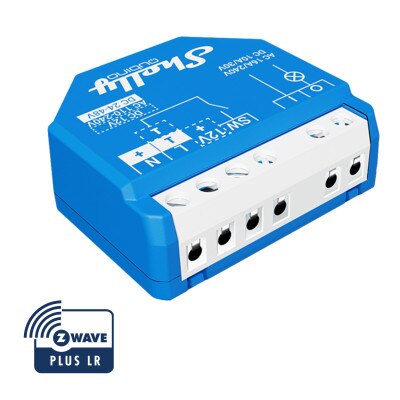

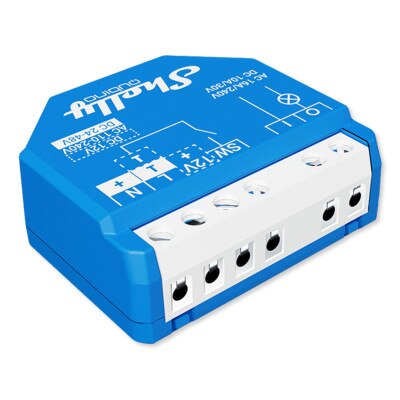

Shelly Qubino Wave 1 Channel Z-Wave 800 Relay Module

SKU: QUWAVE1

Order now and we'll ship same business day (if ordered before 3 pm PST).

$19.99

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Convert Any Switch or Outlet into a Z-Wave Smart Device

Upgrade any existing switch or outlet to include Z-Wave functionality with the Shelly Qubino Wave 1 Channel Z-Wave 800 Relay Module! This Z-Wave compatible dry contact module adds a switch or outlet to your Z-Wave network through a wired retrofit connection between your home's power load and a chosen switch or outlet. Once installed, the Wave 1 will automatically connect to your existing Z-Wave network and enable your connected device to respond to remote commands and automated scenes from the Shelly Smart Control app or your connected Z-Wave hub's app. The Wave 1 utilizes Z-Wave 800 software to provide reliable and long lasting performance, increased encryption protection, and easier setup into Z-Wave networks.

  • Z-Wave 800 module adds On/Off commands to a single dry contact device
  • Supports loads using up to 16A connected to the controlled switch or outlet
  • Built-in overheat protection ensures the safety of the Wave 1 and the controlled device
  • Can be included in Z-Wave automated scenes and schedules to turn On/Off according to preset triggers, timers, or time of day
  • Standard Z-Wave mesh protocol range reaches up to 130 feet (40m) line of sight to the nearest Z-Wave receiver or hub
  • Z-Wave 800 software provide increased power, longer range, faster transmissions, and improved security
  • Z-Wave Smart Start technology pairs news devices quickly and S2 framework ensures enhanced security

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

  • Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
  • Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
  • Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
  • Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
  • Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
  • Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Installation Details

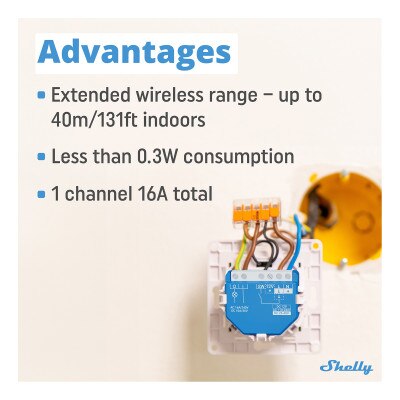

The Shelly Qubino Wave 1 Channel Z-Wave 800 Relay Module fits in behind a wall switch or outlet, and requires a neutral wire for setup. The Wave 1 will automatically attempt to locate and request inclusion into your local Z-Wave network after it is installed.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 1300ft/400m, three layers of encryption, faster operation, and longer battery life.

Contents

  • Wave 1
  • DSK Label
  • User Guide

Notes

Shelly Qubino Provides A 100% Wireless Smart Home

Shelly Qubino creates innovative and affordable smart home devices for residential and business applications. Qubino, now owned by Shelly, focuses on providing Z-Wave compatible smart home solutions. Shelly Qubino devices are among the smallest Z-Wave devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly Qubino utilizes the latest Z-Wave technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

Specifications

  • Manufacturer Part #: Wave 1
  • EAN: 3800235269039
  • Power Supply: 110-240 V AC / 24-48 V DC / 12 V DC ± 10%
  • Power Consumption: < 0.3 W
  • Max. Switching Voltage AC: 240 V
  • Max. Switching Current AC: 16 A
  • Max. Switching Voltage DC: 30 V
  • Max. Switching Current DC: 10 A
  • Overheating Protection: Yes
  • Distance: Up to 40 m indoors (131 ft.) (depends on local condition)
  • Z-Wave Repeater: Yes
  • CPU: Z-Wave S800
  • Z-Wave Frequency Bands: 868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz
  • Maximum Radio Frequency Power Transmitted in Frequency Band(s): < 25 mW

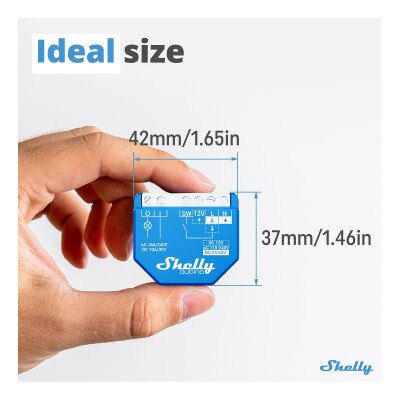

  • Size (H x W x D): 37 x 42 x 16 ±0.5 mm / 1.46 x 1.65 x 0.63 ±0.02 in
  • Weight: 26 g / 0.92 oz.
  • Mounting: Wall Console
  • Screw Terminals Max. Torque: 0.4 Nm / 3.5 lbin
  • Conductor Cross Section: 0.5 to 1.5 mm2 / 20 to 16 AWG
  • Conductor Stripped Length: 5 to 6 mm / 0.20 to 0.24 in
  • Shell Material: Plastic
  • Color: Blue
  • Ambient Temperature: -20°C to 40°C / -5°F to 105°F
  • Humidity: 30% to 70% RH
  • Max. Altitude: 2000 m / 6562 ft.
  • Warranty: 2 Year
