Shelly BLU Bluetooth to Wi-Fi USB Gateway

SKU: SHBLUGATEWAY

Usually ships in 3-5 days.

$18.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Bring Your Shelly BLU Devices Online

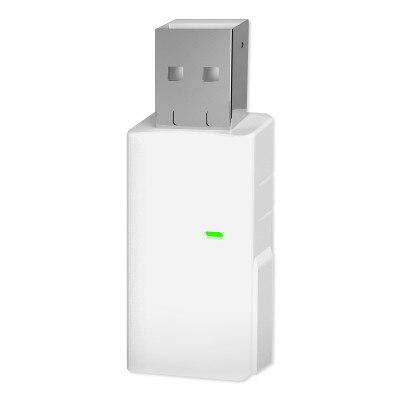

Bridge the gap between Bluetooth connections and remote Internet activation of your Shelly BLU devices with the Shelly BLU Bluetooth to Wi-Fi USB Gateway. This USB Bluetooth to Wi-Fi gateway adds your Shelly BLU devices to your Wi-Fi network for remote access and seamlessly integrates your Shelly BLU devices into your Shelly or smart home ecosystem. This USB dongle acts as a bridge and a Wi-Fi extender, receiving Bluetooth signals and transmitting them to your Wi-Fi network, ensuring your Shelly devices, including Gen-1 relays like Shelly Dimmer2 and Shelly RGBW2, and other Wi-Fi devices can interact with your BLU sensors in the same smart home ecosystem. With its USB Type-A connector, the Shelly BLU Gateway offers easy plug-and-play functionality, allowing you to plug it into a computer or a USB outlet or adapter. It supports MQTT and WebSocket protocols, making it compatible with Wi-Fi home automation systems including Home Assistant.

  • USB gateway connects Shelly Bluetooth devices to your Wi-Fi network
  • USB Type-A connector for straightforward installation
  • Supports MQTT and WebSocket protocols for broad compatibility
  • Acts as a Wi-Fi range extender to improve network coverage
  • Enables scripting for local control and custom automation

The Shelly BLU Gateway offers advanced features like local scripting which allows users to create custom automated scenes with their Shelly BLU devices and other Bluetooth and Wi-Fi devices within a smart home network. Its Wi-Fi signal range reaches 100 ft (30m) indoors and 160 ft (50m) outdoors, while its Bluetooth range reaches up to 66 ft (20m) indoors and 100 ft (30m) outdoors. The Shelly BLU Gateway can integrate with platforms like Home Assistant, which may offer these functionalities.

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

  • Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
  • Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
  • Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
  • Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
  • Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
  • Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Installation Details

The Shelly BLU Gateway plugs into a powered USB-A port or adapter. Once powered, it will automatically begin bridging Shelly BLU devices within operating range to your Wi-Fi network.

Contents

  • Shelly BLU Bluetooth to Wi-Fi USB Gateway

Notes

  • Requires a powered USB port in order to operate.
  • Ensure your Wi-Fi network operates on the 2.4 GHz band for optimal compatibility.
  • For advanced features like scripting and MQTT integration, additional configuration may be necessary.

Shelly Qubino Provides A 100% Wireless Smart Home

Shelly Qubino creates innovative and affordable smart home devices for residential and business applications. Shelly creates smart lighting and appliance control devices and other smart home and smart security products. Their Z-Wave devices use the legacy Qubino brand name and their Wi-Fi devices use the main Shelly brand name. Shelly Qubino utilizes the latest wireless technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

Specifications

  • Manufacturer Part #: BLU Gateway
  • EAN: 3800235266656

Physical

  • Size (HxWxD): 45 x 20 x 8 mm / 1.77 x 0.79 x 0.21 in
  • Weight: 5 g / 0.18 oz
  • Shell Material: Plastic
  • Color: White

Environmental

  • Ambient Temperature: -20°C to 40°C / -5°F to 105°F
  • Humidity: 30 % to 70 % RH

Electrical

  • Power Supply: 5 VDC (from USB Type-A port)
  • Power Consumption: <1 W

Sensors

  • PIR: Yes
  • Light Sensor: Yes

Radio

  • RF Band: 2400 ~ 2483.5 MHz
  • Max. RF Power: <20 dBm
  • Wi-Fi Protocol: 802.11 b/g/n
  • Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4.2
  • Bluetooth Range: Up to 20 m / 66 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU

  • CPU: ESP32
  • Flash: 4 MB

Firmware Capabilities

  • Scripting: Yes
  • MQTT: Yes
  • CoAP: No
