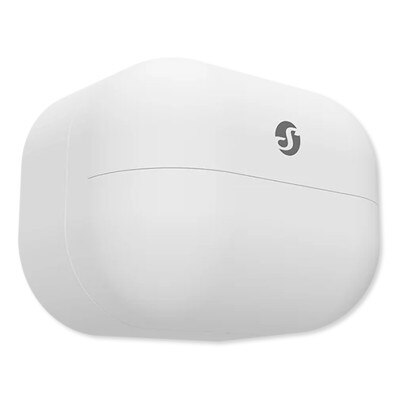

Shelly BLU Motion Bluetooth Motion Sensor

Receive Instant Alerts When Movement is Detected

Instantly know when unexpected movement is detected in your home with the Shelly BLU Motion Bluetooth Motion Sensor. This Bluetooth connected motion and light detecting sensor delivers real-time motion alerts, as well as notifications to changes to lighting, directly to your mobile device through the Shelly Smart App. This advanced motion sensor utilizes Bluetooth 4.2 connectivity to deliver instant responsiveness and real-time alerts, ensuring you're always informed of any movement within your premises. With its smart sensitivity adjustment, the Shelly BLU Motion can distinguish between animal and human shaped movement, reducing false alarms. Its compact and sleek design allows for seamless integration into any home decor, while the long-lasting battery ensures continuous operation without frequent replacements. The BLU Motion Bluetooth Motion Sensor can be included into Shelly or Bluetooth compatible smart homes via a connection with a Shelly gateway device or Bluetooth compatible hub within range.

• Bluetooth compatible motion sensor detects and reports movement within 29 feet (9m)
• Built-in lux meter reports real time light levels to trigger automated scenes
• Compact design for easy and discreet installation
• Long-lasting battery life up to 5 years
• Receive alerts, adjust settings, and create or change smart scenes from the Shelly Smart Control App (requires Shelly gateway device)

The BLU Motion Sensor uses two modes of operation: Regular Mode and Beacon Mode. Regular mode has the BLU Motion Sensor send notifications when movement is detected, light level changes, and the battery runs low. Beacon mode has the BLU Motion Sensor continuously report any motion detection status, light level, and battery status every 30 seconds. You can adjust the intervals between detection events or freely switch between modes from the Shelly Smart Control application.

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Installation Details

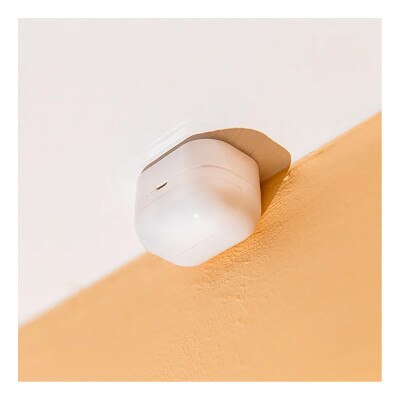

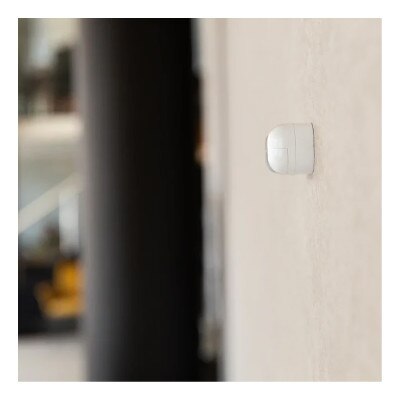

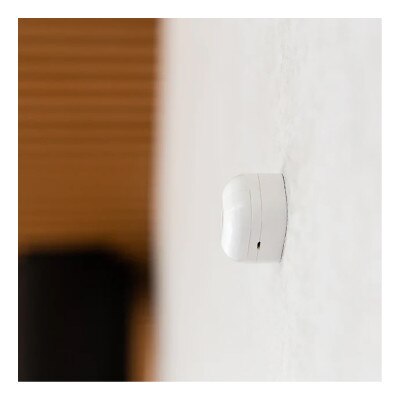

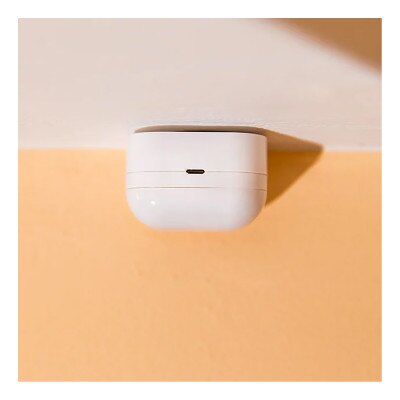

The Shelly BLU Motion Bluetooth Motion Sensor mounts onto flat surfaces using the included adhesive tape. To ensure optimal signal strength, the Sensor should be placed within range of a compatible Shelly Gateway device or Bluetooth-compatible hub network. Once installed, pair the device with the Shelly Smart Control application by pressing and holding the push button on the back of the sensor for 10 seconds. This same process is used to pair the sensor with another.

The Shelly BLU Motion Bluetooth Motion Sensor is not a standalone device, it must be paired with a compatible gateway such as the Shelly BLU Gateway, or any Shelly Plus, Pro or Gen3 device (excluding sensors).

Contents

• Shelly BLU Motion Bluetooth Motion Sensor
• CR2477 Battery (Pre-Installed)
• Mounting Adhesive Tape
• Screws for Optional Mounting
• Quick Start Guide

NOTE: To use this device with the Shelly Smart Control app, a gateway is necessary. Compatible gateways are Shelly BLU Gateway, or any Shelly Plus, Pro or Gen3 device (excluding sensors).

Shelly Qubino Provides A 100% Wireless Smart Home

Shelly Qubino creates innovative and affordable smart home devices for residential and business applications. Shelly creates smart lighting and appliance control devices and other smart home and smart security products. Their Z-Wave devices use the legacy Qubino brand name and their Wi-Fi devices use the main Shelly brand name. Shelly Qubino utilizes the latest wireless technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: BLU Motion
• EAN: 3800235266700

Physical

• Size (HxWxD): 32 x 42 x 27 ±0.5 mm / 1.26 x 1.65 x 1.06 ±0.02 in
• Weight: 26 ±1 g / 0.92 ±0.05 oz (Device with the battery)
• Shell Material: Plastic
• Color: White

Environmental

• Ambient Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30 % to 70 % RH

Electrical

• Power Supply: 1x 3 V CR2477 battery (included)
• Battery Life: 5 years

Sensors

• PIR: Yes
• Light Sensor: Yes

Radio

• RF Band: 2400 ~ 2483.5 MHz
• Max. RF Power: <4 dBm
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU

• CPU: EFR32BG22C222F352GM32

Firmware Capabilities

• Encryption: AES encryption (CCM mode)
• Beacon Mode: Yes
