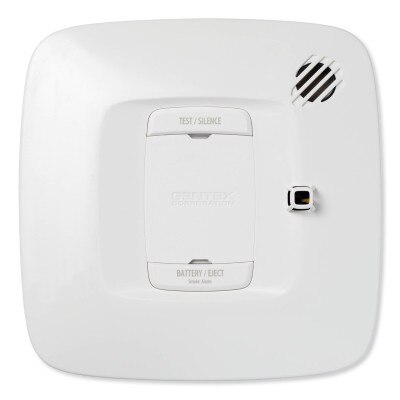

Sensaphone Contact Type Smoke Detector Sensor

For Use In Residential or Commercial Properties

Keep everyone on your property safe in the event of a fire by installing the Sensaphone Contact Type Smoke Detector Sensor. This smoke sensor features photoelectric light scattering sensing technology that detects particles generated by slow, smoldering fires. It's specifically designed to integrate easily with any Sensaphone monitoring system with dry contact inputs. When smoke is detected, this smoke detector sensor alerts by using a distinctive three-pulse sound sequence using its 85 dBA evacuation piezo horn to ensure everyone on the property can safely evacuate the building. This smoke detector is ideal for both residential and commercial properties and can be installed in various living areas, offices, or equipment storage rooms. This unit does not require external power sources and up to 12 smoke detector units can be connected to one Sensaphone input.

• Photoelectric smoke sensing technology detects particles from slow, smoldering fires
• Up to 12 Sensaphone Contact Type Smoke Detector units can be connected to one Sensaphone input
• Uses Temporal 3 evacuation signal pattern for smoke and heat alerts
• Built-in 85 dBA evacuation piezo horn is loud enough to be heard indoors
• Ideal for residential and commercial properties and includes a 9V battery backup

Contents

• Contact Type Smoke Detector Sensor
• Mounting Hardware
• Manual

Sensaphone Remote Monitoring Solutions

Unexpected events happen. But Sensaphone remote monitoring systems are on alert full time to notify you of threatening conditions, so you can respond quickly and prevent costly damages and disruptive downtime. From wireless capabilities to ultra-low temperature tolerant systems, you'll find the right Sensaphone for your monitoring needs. Start protecting your investments today.

Product Features

• Horn frequency 3100Hz with nominal 2.5% sensitivity
• 8-hour alarm memory
• Push button self-test and functional test
• Quick-disconnect wiring harness and non-latching (self restoring) alarm
• Pulsing LED sensing chamber
• Fully insect screened
• Mounting hardware adapts to standard junction boxes
• Dust cover to prevent contamination during installation
• Indicator for low or missing battery

Technical Details

• Manufacturer Part #: FGD-0049-SQ
• UPC: N/A
• Alarm Horn Rating: Meets or exceeds 85dBA at 10'
• Auxiliary Relay: 1 Form-A and 1 Form-C relay output (1.0 A @ 30VDC, 0.3 A @ 125VAC)
• Secondary Power Source: Alkaline 9V battery included, Duracell® MN 1604
• Tandem Interconnect: 12 Max. Up to 125' between each alarm. 1125' max distance from first to last alarm
• Operating Temperature: 40° to 100°F (4° to 37°C)
• Dimensions: 5.5 x 5.5 x 1.75 inches (140 x 140 x 45mm)
• Certifications: ANSI/UL 217 Listed, NFPA 72, IBC/IFC/IRC
