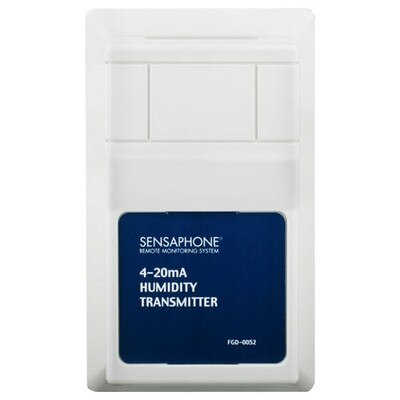

Sensaphone FGD-0052 Humidity Transmitter

For Use With The Sensaphone System

The Sensaphone Humidity Transmitter is a space mount, low profile humidity transducer that transmits actual humidity levels to the Sensaphone for programmable high and low alarm limits. The device can be used with any Sensaphone that supports 4-20mA inputs. The 24V DC power supply (FGD-0053, sold separately) is required unless the transmitter is used with the SCADA 3000 or Express II.

Contents

• Humidity sensor
• Mounting hardware
• Operating instructions

NOTE: Does not come with wire or power supply.

IMPORTANT NOTE: This Sensaphone product is not available to ship outside the U.S.

Sensaphone Remote Monitoring Solutions

Unexpected events happen. But Sensaphone remote monitoring systems are on alert full time to notify you of threatening conditions, so you can respond quickly and prevent costly damages and disruptive downtime. From wireless capabilities to ultra-low temperature tolerant systems, you'll find the right Sensaphone for your monitoring needs. Start protecting your investments today.

• Operating Temp Range: -10° to 160°F (-23° to 71°C)
• Operating RH: 0 to 100% RH
• Accuracy: ±3% from 20% to 95%
• Dimensions: 2 3/4" x 4 1/2" x 1 1/8"
• Compatibility: Sensaphone 1400, 1800, 2800, 2000, Express II, SCADA 3000, and WEB600
