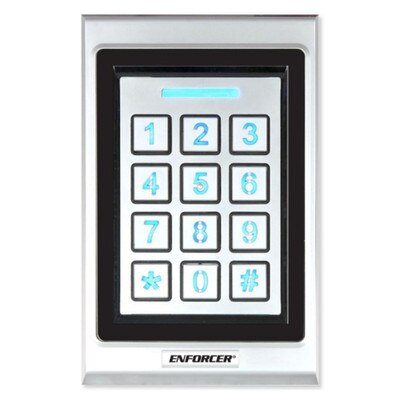

Seco-Larm Enforcer Bluetooth Access Controller Keypad With Proximity Card Reader
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Configure Access or Activate Devices via Bluetooth
Limit and simplify access to your property with the Seco-Larm Enforcer Bluetooth Access Controller, Single-Gang Keypad with Proximity Card Reader. This Bluetooth connected keypad provides access control via three methods: backlit numeric keypad, a built-in proximity card reader, and over Bluetooth wireless connection. All keypad features and programmed settings are saved directly onto the keypad along with a backup saved onto paired smart devices.
- Lock/Unlock doors and gates or trigger On/Off lighting, appliances, and machinery
- Three Ways to Lock/Unlock or Trigger a Device – Keypad, proximity card, or app
- Three Output modes: Timed relock (1 to 1,800 seconds), continually unlocked or locked, toggle
- Assign Multiple User Types: Permanent, scheduled, temporary, # of times
- Assign up to 1000 users to guard against unauthorized additions
- Wrong-Code Lockout – Customizable # of wrong codes and time
- Customizable alarm timing and sensitivity
Configure your Access Controller via the SL Access App. This app is specifically designed for Seco-Larm Enforcer Bluetooth Access Controllers. The SL Access™ app provides convenience and security for both user and administrator with streamlined, fully app-based setup and management using integrated Bluetooth® wireless technology. There are no codes to remember, and its intuitive, visual app design makes initial setup and on-going management simple and fast. Since all data is secured on the device you also avoid the risks inherent with an internet connection.
App Feature Includes
- Intuitive, visual app-based programming and management, 1,000 users, device options, etc.
- All data secured locally on device, set and monitored by the administrator
- No complicated software to install, no subscription fees
- Access/manage unlimited devices with one app
- Off-device storage / restoration / replication
- Multilingual App Interface – English, Spanish, French, Portuguese, German, Russian, Vietnamese, and Chinese
Installation & Power Details
The keypad supports 12-24V AC/DC universal power, eliminating the need for special programming or jumpers. It wires into a power supply (sold separately) and mounts to the wall with the included screws. In case of a power outage, all your data is stored and reliably retained in the keypad's memory.
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: SK-B141-PQ
- Access modes: App / keypad / proximity card
- Number of user codes: Up to 1,000 users, 1 administrator
- Operating voltage: 9~25 VDC
- Current draw:
- Stand-by: 52mA@12VDC, 30mA@24VDC
- Active: 62mA@12VDC, 35mA@24VDC
- Outputs:
- Relay: Solid state, form C, 2.5A@30VDC
- Tamper: 50mA@30VDC
- Output Modes: Timed relock (1~1,800s), continually locked, continually unlocked, toggle
- Egress inputs: 2, N.O. Ground
- Door sensor input: N.C. Ground
- Electrical protection: Short circuit, electro static discharge, reverse polarity, relay contact protection
- Proximity reader: EM 125kHz
- Keypad: Backlit
- Bluetooth radio: Bluetooth Low Energy (BLE) 4.2
- IP Rating: IP65 Weather resistant
- Enclosure material: Zinc-alloy
- Operating temperature: -4° to 122° F (-20° to 50° C)
- Warranty: 1 Year
Downloads
»Seco-Larm SK-B141-PQ Enforcer Bluetooth Access Controller Single-Gang Keypad with Reader Spec Sheet (.pdf)
»Seco-Larm Enforcer Bluetooth Access Controller Quick Start Guide (.pdf)
»Seco-Larm Enforcer Bluetooth Access Controller Installation Manual and Administrator Guide (.pdf)
»Seco-Larm Enforcer SL Access App User Manual (.pdf)
