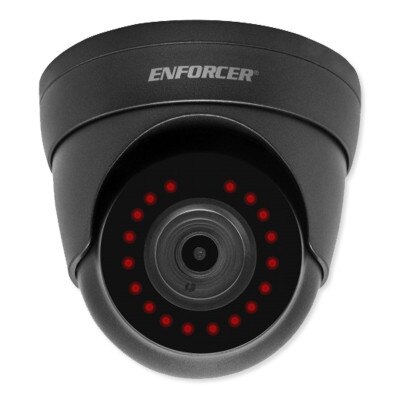

Seco-Larm Enforcer 4-in-1 Analog Turret Camera, Gray
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Supports 4 Video Formats for Most Surveillance Networks
Improve your home security by adding a high definition surveillance camera that operates using multiple different video formats with the Seco-Larm Enforcer 4-in-1 Analog Turret Camera (Gray). This HD turret camera provides ultra high-quality surveillance in both indoor and outdoor locations with useful features such as wide viewing angles, built-in IR LED, D-WDR, and Digital Noise Reduction for clear and optimized images 24/7. The camera supports four different video formats: TVI, CVI, AHD, and Analog, with TVI as the default. It also features Joystick OSD control, a split-glass design to eliminate IR reflection, and durable, vandal resistant design with weatherproof construction (IP66 rated).
- Supports TVI, CVI, AHD, and Analog video formats in 2592x1944 resolution
- Split-glass design eliminates IR reflection
- IR LEDs enhance night vision while D-WDR optimizes image quality
- Cables concealed in bracket to prevent tampering
- Joystick OSD control makes configuration easy
- Weatherproof (IP66) and vandal resistant design for outdoor use

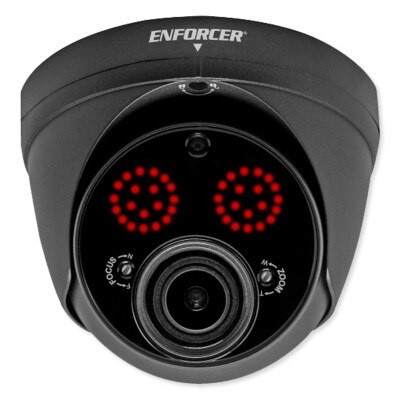

- Available in Fixed and Varifocal Lense models
Installation Details

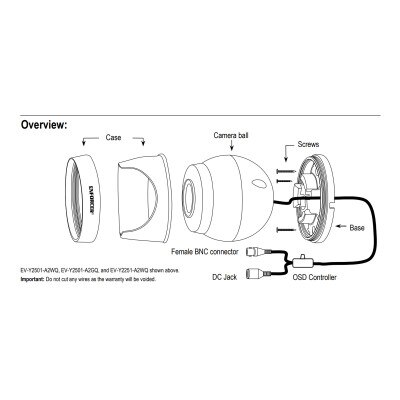

The 4-in-1 HD Analog Turret Camera mounts to a ceiling or wall using the integrated/removable mounting base and included hardware. The mounting base conceals the power cables to help prevent tampering. The camera uses 12VDC power.
The camera provides OSD settings that are programmable through the included in-line OSD joystick. Using the joystick, you can program special features at a moment's notice.
Contents
- Turret Camera
- Power Balun
- (3) Screws
- (3) Screw Anchors
- Mounting Template
- Manual
Notes
- Do not point the camera at the sun.
- Do not mount the camera in areas exposed to strong magnetic fields or strong electrical signals.
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #:
- EV-Y2501-A2GQ: Fixed
- EV-Y2501-AMGQ: Varifocal
- UPC:
- EV-Y2501-A2GQ (Fixed): 676544020745
- EV-Y2501-AMGQ (Varifocal): 676544020752
- Housing Color: Gray
- Formats: TVI (Default) / CVI / AHD / Analog (CVBS)
- CMOS: 1/2.7" 5MP CMOS
- Resolution (HD): 2592x 1944
- 2DNR: Yes
- D-WDR: Yes
- OSD (On-Screen Display): Yes
- Cable OSD Control: Yes
- Megapixels: 5MP
- Lens: 2.8mm ICR
- Viewing Angle: 121°
- # of IR LEDs: 18 (SMT)
- IR Range: Up to 65 ft (20m)
- FPS: 20FPS
- F Stop: 2.0
- Minimum illumination – IR On: 0 Lux
- Minimum illumination – IR Off: 0.05 Lux
- S/N Ratio: 35dB
- Shutter control: Auto
- Gain Control: Auto
- Operating Voltage: 12VDC
- Current Draw – IR On: 320mA
- Current Draw – IR Off: 80mA
- IP Rating: Weatherproof IP66
- Operating Temperature: -22 to 131° F (-30 to 55° C)

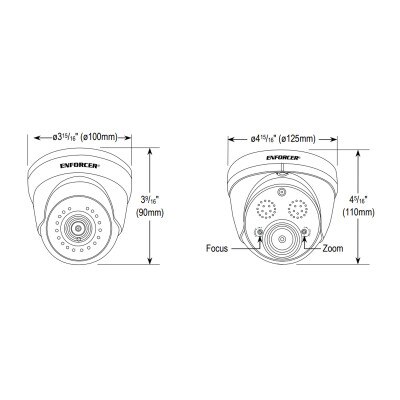

- Dimensions: Dia: 3-15/16 x 3-9/16 inches (Dia: 100x90 mm)
- Weight: 16.72-oz (474g)
- Credentials: FCC, CE, RoHS
- Warranty: 3 Years
